Summit SLS3434W 24" ENERGY STAR® Washer and Heat Pump Dryer Set
Summit SLS3434W 24" ENERGY STAR® Washer and Heat Pump Dryer Set
*SPECIAL ORDER ONLY*
The Summit SLS3434W is a compact 24" front load washer and ventless heat pump dryer set designed for stacked or side-by-side installation. Made in Europe, the matching white laundry pair offers full-featured fabric care in a slim footprint suited to studios, ADUs, apartments, condos, and other smaller homes.
The 2.26 cu. ft. washer handles loads up to 19.8 lb. with 14 wash programs, a maximum 1,400 RPM spin speed, and a stainless steel drum. Specialized options include Quick Wash, Activewear, Babywear, Delicates, Wool, Allergy Care, and a high-temperature tub sanitizing cycle.
The 4.1 cu. ft. dryer handles loads up to 19.8 lb. and uses ventless heat pump technology to recycle heated air for efficient drying without an exterior exhaust duct. Fourteen drying programs provide specialized care for wool, delicates, jeans, mixed fabrics, and permanent press garments.
Both appliances are ENERGY STAR® certified and include digital touchscreens, dial cycle selectors, delay-start options, and control locks. Available from Coastal Appliance Co., the SLS3434W provides flexible, energy-efficient laundry care for compact Hawaii homes.
Key Features

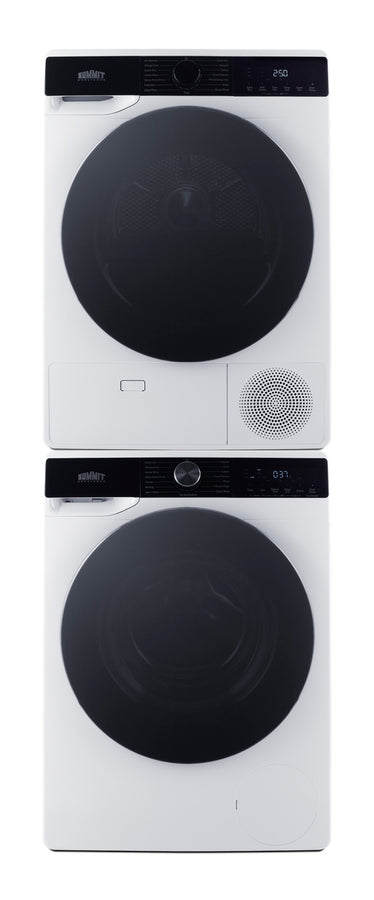

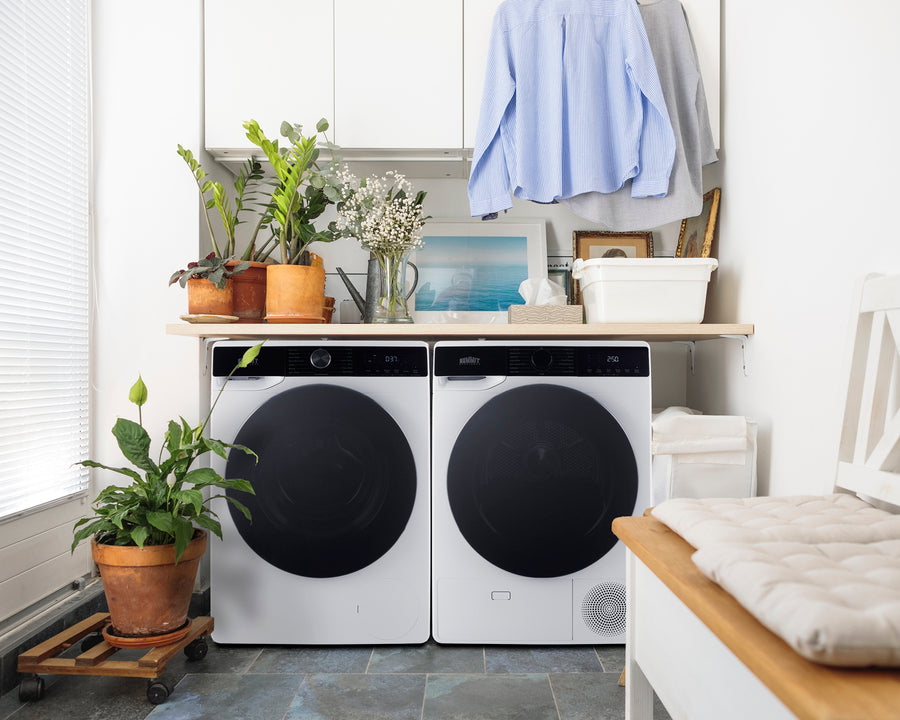

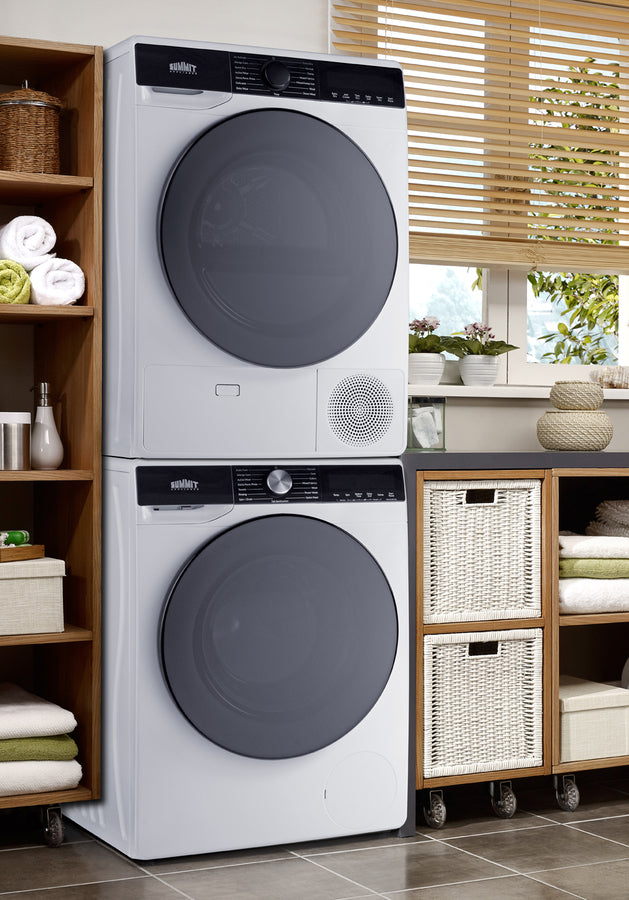

Flexible Installation – Configure the matching washer and dryer side by side or stack the dryer above the washer using the included stacking kit.
Compact 24" Width – Fits smaller laundry rooms, closets, studios, ADUs, apartments, and condominiums.
19.8 lb. Washer Capacity – Handles nearly 20 lb. of laundry within a compact 2.26 cu. ft. stainless steel drum.
19.8 lb. Dryer Capacity – Provides a spacious 4.1 cu. ft. stainless steel drum for drying full washer loads.
Ventless Heat Pump Drying – Recycles heated air for energy-efficient operation without requiring an exterior exhaust duct.
ENERGY STAR® Certified Pair – Both the washer and dryer meet ENERGY STAR® efficiency standards.
Fourteen Wash Programs – Provides specialized care for cottons, heavy-duty loads, activewear, babywear, delicates, wool, down items, and more.
Fourteen Drying Programs – Includes settings for wool, mixed fabrics, jeans, delicates, permanent press, air fluff, and other fabric types.
1,400 RPM Maximum Spin Speed – Extracts more moisture from clothing to help reduce drying time.
Two-Stage Drying System – Separates moisture from heated air and collects condensed water in the dryer’s upper tank.
AdaptTech Drying – Stores a drying program as the default after it has been selected three consecutive times.
One-Plug Operation – Allows the washer to connect directly to the receptacle on the rear of the dryer.
Digital and Dial Controls – Combines touchscreen displays with convenient rotary cycle selectors on both machines.
Stainless Steel Interiors – Durable washer and dryer drums support long-lasting fabric care.
Wide Door Openings – Doors open up to 180 degrees for easier loading and unloading.
Delay Start – Allows wash and dry cycles to be scheduled for a more convenient completion time.
Add Garment Function – Lets users pause an active cycle to add or remove laundry.
Control Lock – Disables the controls to help prevent accidental changes or unwanted operation.

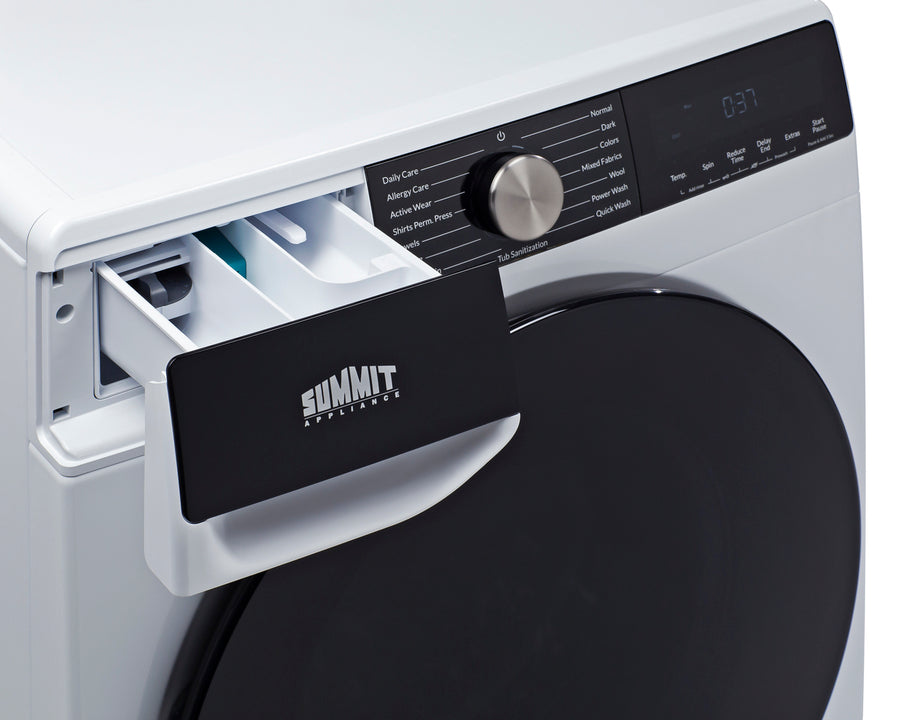

Washer Detergent Dispenser – Includes dedicated compartments for prewash detergent, regular detergent, and fabric softener.
Large Dryer Lint Filter – Located inside the dryer door for convenient cleaning and maintenance.
Tub Sanitize Cycle – Uses a high-temperature washer cycle to help remove detergent residue and bacteria from the drum.
TAA Compliant – Manufactured in a designated country for applications requiring Trade Agreements Act compliance.
Specifications
| Specification | Details |
|---|---|
| Brand | Summit |
| Model | SLS3434W |
| Product Type | Washer and Heat Pump Dryer Set |
| Installation Configuration | Stacked or side by side |
| Washer Model | SLW343 |
| Dryer Model | SLDHP344 |
| Finish | White with black door windows |
| Loading Style | Front load |
| Washer Capacity | 2.26 cu. ft. |
| Dryer Capacity | 4.1 cu. ft. |
| Combined Drum Capacity | 6.36 cu. ft. |
| Maximum Wash Load | 19.8 lb. |
| Maximum Dry Load | 19.8 lb. |
| Washer Drum | Stainless steel |
| Dryer Drum | Stainless steel |
| Washer Cycles | 14 |
| Dryer Cycles | 14 |
| Maximum Washer Spin Speed | 1,400 RPM |
| Dryer Type | Ventless heat pump |
| Dryer Moisture Collection | Upper condensation tank |
| Controls | Digital touchscreen and rotary dial |
| Delay Start | Yes |
| Add Garment | Yes |
| Control Lock | Yes |
| Delicate Cycle | Yes |
| Permanent Press Cycle | Yes |
| Detergent Dispenser | Yes |
| Dryer Lint Filter | Yes |
| Door Opening | Up to 180 degrees |
| Stacking Kit | Included |
| ENERGY STAR® Certified | Washer and dryer |
| Country of Manufacture | Europe |
| TAA Compliant | Yes |
| Canadian Approval | NRCAN registered |
| Electrical Safety | ETL and ETL-C |
| Electrical Requirements | 208–240V / 60Hz |
| Dryer Circuit Requirement | 30 amps |
| Dryer Plug | NEMA 14-30P, four prong |
| Washer Circuit Rating | 15 amps |
| Washer Plug | NEMA 6-15P |
| Washer Connection | Plugs into receptacle on rear of dryer |
| Exterior Dryer Vent Required | No |
| Parts and Labor Warranty | 1 year |
| Set Weight | 259 lb. |
| UPC | 761101161877 |
Dimensions
| Measurement | Size |
|---|---|
| Stacked Width | 23-1/2" |
| Stacked Height | 66-1/4" |
| Stacked Depth | 26-1/8" |
| Stacked Depth with Door Open | 45-5/8" |
| Washer Width | 23-1/2" |
| Washer Height | 33-1/8" |
| Washer Depth | 25-3/4" |
| Washer Depth with Door Open | 45-5/8" |
| Dryer Width | 23-1/2" |
| Dryer Height | 33-1/8" |
| Dryer Depth | 26-1/8" |
| Dryer Depth with Door Open | 46-1/2" |
| Side-by-Side Width | Approximately 47" |
| Washer Capacity | 2.26 cu. ft. |
| Dryer Capacity | 4.1 cu. ft. |
| Set Weight | 259 lb. |
Installation Requirements
Stacking Components – Rubber feet and stacking brackets are included with the washer for securing the dryer above it.
Electrical Connection – A dedicated 208–240V, 30-amp receptacle compatible with the dryer’s four-prong NEMA 14-30P plug is required. The washer plugs into the dryer’s rear NEMA 6-15 receptacle.
Washer Connections – Standard water-supply connections and an approved drain connection are required.
Ventless Dryer Installation – No exterior dryer duct is required, providing greater placement flexibility.
Condensation Tank – Moisture collects in the dryer’s upper tank and must be emptied as needed. The display provides a reminder after drying cycles.
Installation Clearance – Confirm doorway access, electrical service, plumbing, surrounding clearances, and stacked ceiling height before delivery.
