Summit SDHWC98 72" tall 24" Wide Dual Zone Wine Cellar – Stainless Steel & Black
Summit SDHWC98 72" tall 24" Wide Dual Zone Wine Cellar – Stainless Steel & Black
The Summit SDHWC98 24" wide dual zone wine cellar brings premium wine storage, shallow-depth installation, and elegant presentation to Hawaii kitchens, home bars, dining areas, and entertainment spaces. With its 18" depth and front-breathing design, this wine cellar is built for seamless built-in installation where a standard full-depth unit may not fit.
Designed to store up to 98 bottles, the SDHWC98 features two temperature zones for proper wine preservation. The upper zone operates from 41°F to 50°F for white and sparkling wines, while the lower zone operates from 50°F to 64°F for red wine storage.
This premium wine cellar includes a gently tinted glass door, seamless 304 grade stainless steel door trim, full-extension wire shelves on ball-bearing glides, tri-color LED lighting, digital temperature controls, Sabbath mode, and a factory-installed lock. At Coastal Appliance Co., we proudly offer Summit wine cellars in Hawaii for homeowners, designers, builders, and home bar projects that need compact depth, refined styling, and dependable wine storage.
Key Features
24" Wide Premium Wine Cellar – Built-in wine storage designed for kitchens, home bars, converted spaces, and entertainment areas.
98-Bottle Capacity – Stores up to 98 standard 750 ml Bordeaux or Burgundy style bottles, depending on bottle shape.
18" Shallow Depth – Slim depth is ideal for limited-space installations where full-depth wine cellars may not fit.
Built-In Front-Breathing Design – Front-breathing cooling system allows integration inside cabinetry with a recommended opening of 72" H x 24" W x 20" D.
Dual Zone Storage – Upper zone stores white and sparkling wine from 41°F to 50°F, while the lower zone stores red wine from 50°F to 64°F.
304 Grade Stainless Steel Door Trim – Seamless single-piece stainless steel trim adds a refined built-in look.
Gently Tinted Glass Door – Displays wine while helping protect the interior presentation.

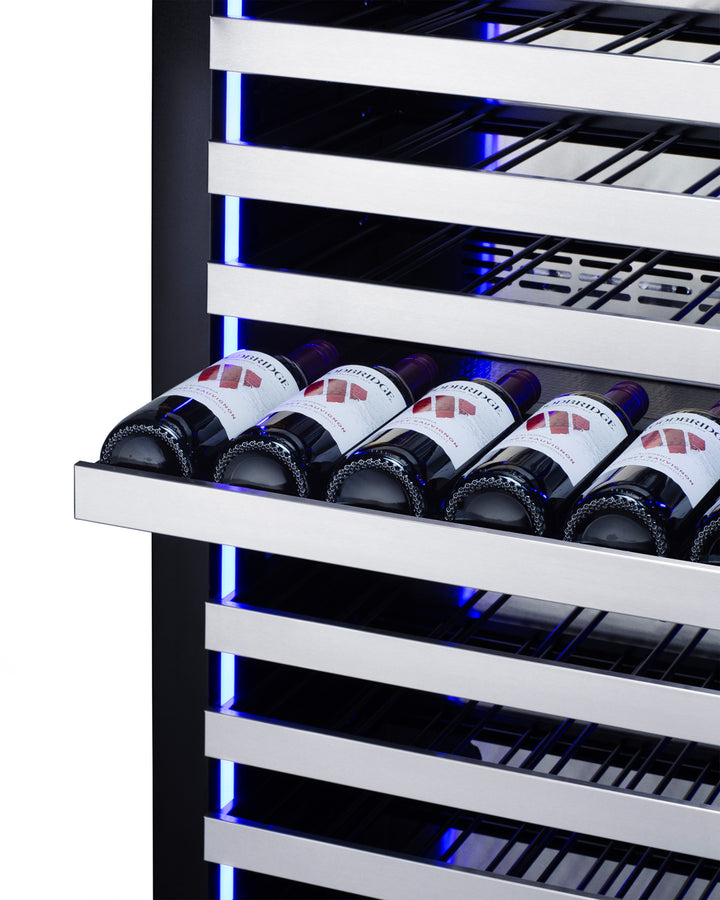

Full-Extension Wine Shelves – Sixteen removable black wire shelves with stainless steel front trim glide smoothly on ball-bearing glides.
Tri-Color LED Lighting – Choose blue, white, or amber lighting to match the desired presentation.
Digital Thermostat – Easy-to-use digital controls allow precise temperature management.
Inverter Compressor – Helps minimize vibration and supports quiet operation measured at 32.2 dB.
Factory-Installed Lock – Keyed lock in the kickplate provides added security.
Sabbath Mode – Optional setting disables lighting and alarm functions for up to 96 hours.
Reversible Door Swing – User-reversible door allows installation flexibility.
Specifications
| Specification | Details |
|---|---|
| Model | SDHWC98 |
| Brand | Summit |
| Product Type | Dual Zone Wine Cellar |
| Installation Type | Built-In |
| Width Class | 24" |
| Bottle Capacity | 98 Bottles |
| Number of Zones | 2 |
| Upper Zone Temperature Range | 41°F to 50°F |
| Lower Zone Temperature Range | 50°F to 64°F |
| Door | Glass |
| Door Trim | Seamless 304 Grade Stainless Steel |
| Cabinet Finish | Black |
| Door Swing | Right-Hand Door, Reversible |
| Shelving | 16 Adjustable Full-Extension Wire Shelves |
| Shelf Trim | Stainless Steel Front Trim |
| Thermostat Type | Digital |
| Interior Lighting | Tri-Color LED Lighting |
| Fan Type | Interior and Exterior Fan |
| Compressor | Inverter Compressor |
| Defrost Type | Automatic |
| Refrigerant Type | R600a |
| Sound Level | 32.2 dB |
| Sabbath Mode | Yes |
| Lock | Factory-Installed Kickplate Lock |
| Electrical Safety | ETL / ETL-C |
| Voltage | 115V AC / 60Hz |
| Amps | 5.0 |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Finish | Stainless Steel and Black |

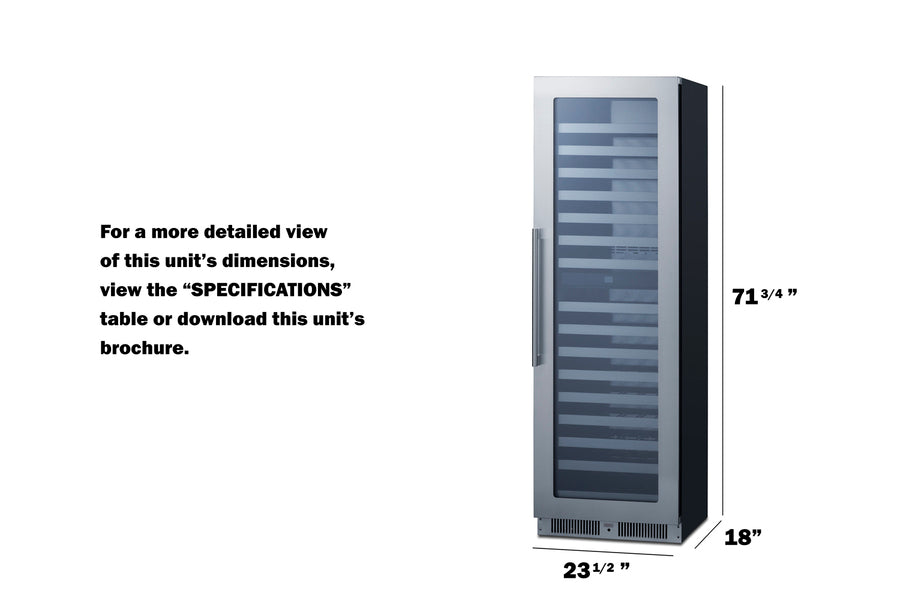

Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 23 1/2" |
| Overall Height | 71 3/4" |
| Overall Depth | 18" |
| Depth with Handle | 19 3/4" |
| Depth with Door at 90° | 41 1/4" |
| Recommended Opening | 72" H x 24" W x 20" D |
| Interior Upper Zone Height | 27 1/2" |
| Interior Upper Zone Width | 19 1/2" |
| Interior Upper Zone Depth | 12 1/4" |
| Interior Lower Zone Height | 34" |
| Interior Lower Zone Width | 19 1/2" |
| Interior Lower Zone Depth | 12 1/4" |
| Product Weight | 276 lbs. |
