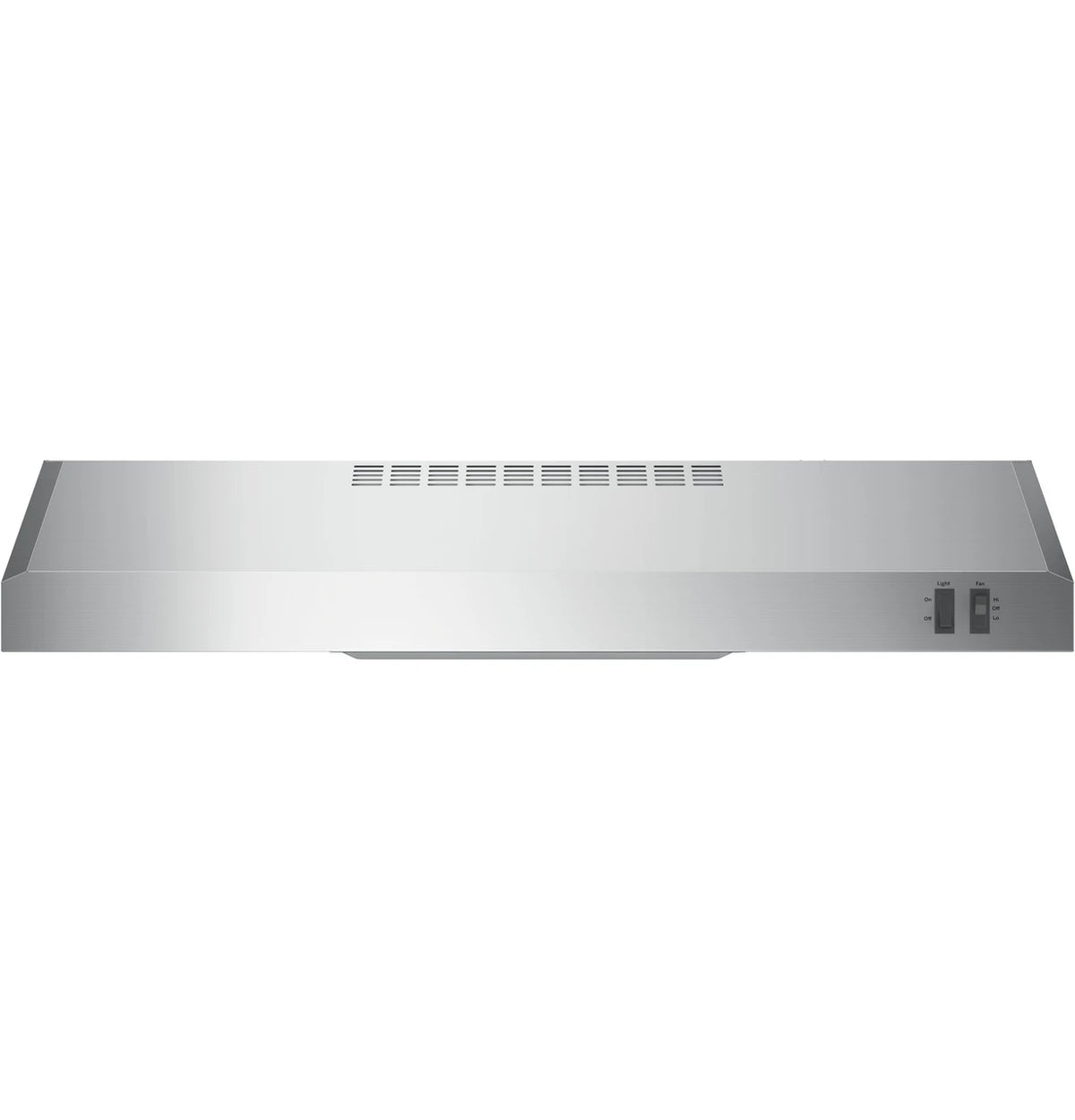

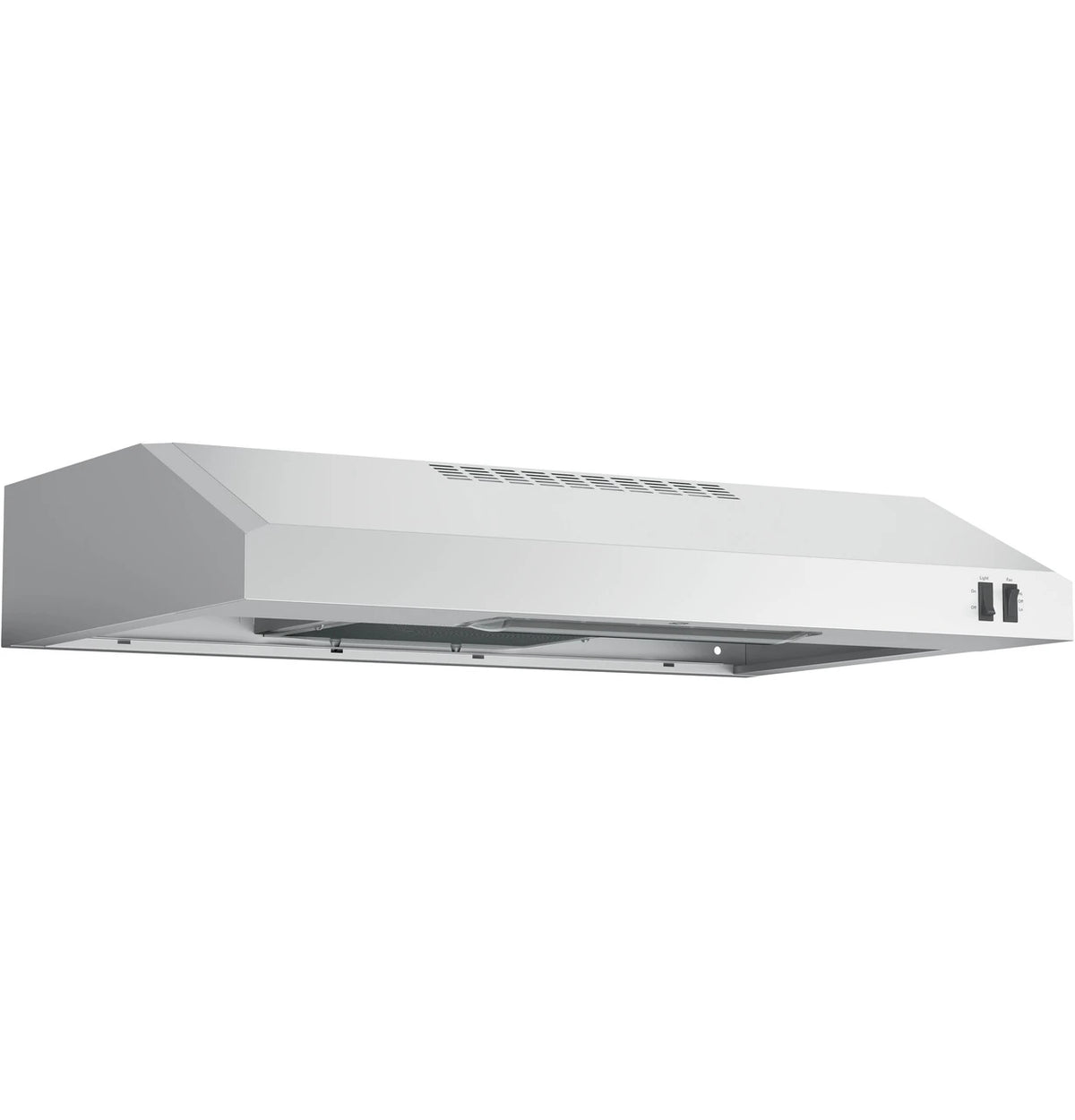

GE JVX3300SJSS 30" Stainless Steel Under-Cabinet Range Hood
GE JVX3300SJSS 30" Stainless Steel Under-Cabinet Range Hood
The GE JVX3300SJSS is a 30-inch under-cabinet range hood with a stainless steel finish and a convertible ventilation system. Its compact 5½-inch-high profile installs beneath a standard kitchen cabinet without occupying unnecessary space.
The internal blower provides two fan speeds and up to 200 CFM of ventilation to help remove smoke, grease, odors, and moisture. Front-mounted rocker switches provide convenient control of the blower and included cooktop light.
The hood supports externally vented and recirculating installations, making it adaptable to many Hawaii homes, condominiums, apartments, and rental properties. Coastal Appliance Co. can help confirm cabinet dimensions, ducting, electrical preparation, and installation requirements.
Key Features
200 CFM Ventilation System – Helps remove smoke, grease, odors, and moisture from the cooking area.
Two Fan Speeds – Provides low- and high-speed ventilation for different cooking conditions.
Convertible Venting – Supports externally ducted or non-vented recirculating installation.
Top or Rear Exhaust – Accommodates vertical or rear duct connections for installation flexibility.

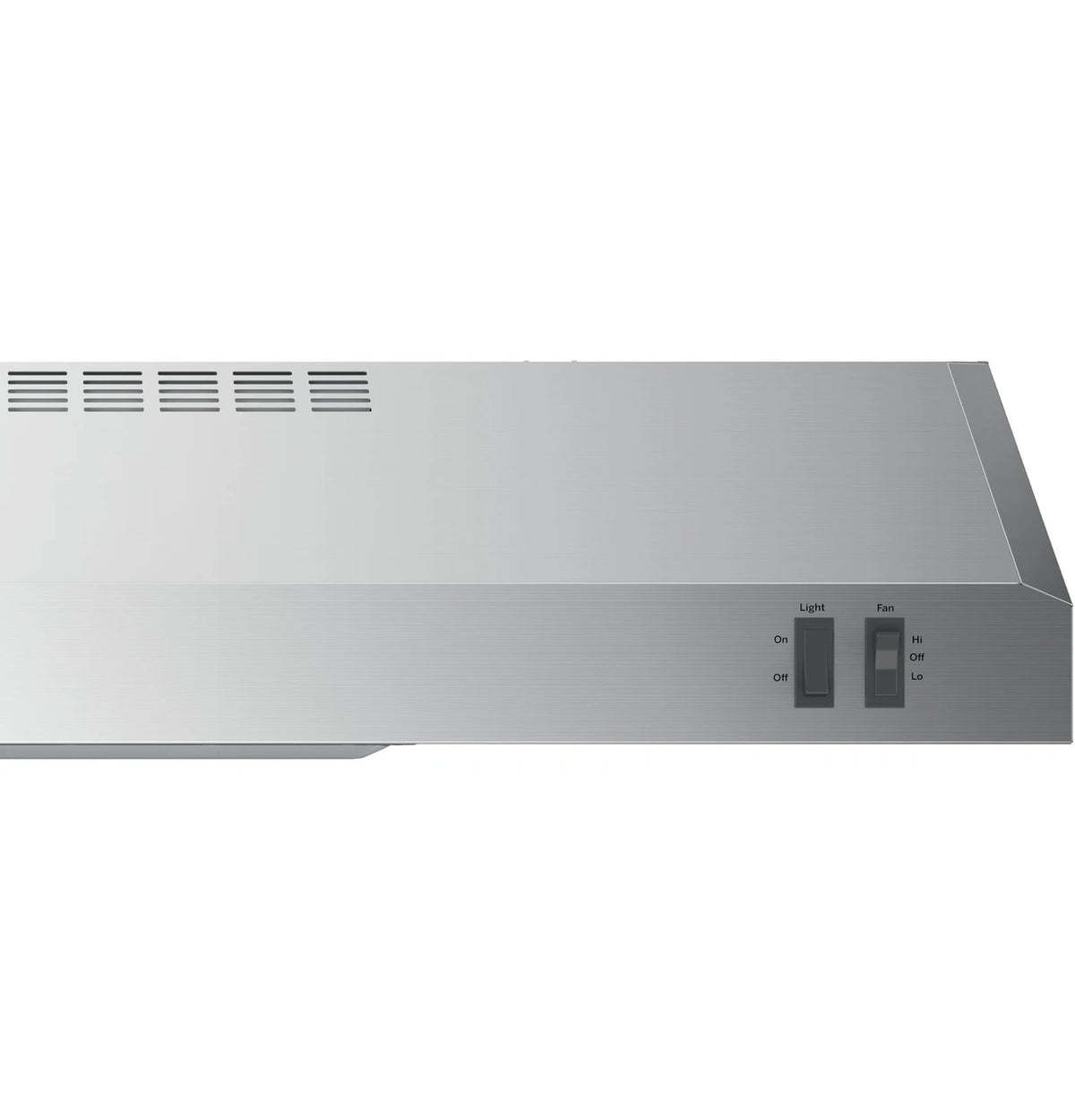

Front Rocker Controls – Places the fan and lighting controls within convenient reach.
Cooktop Lighting – An included incandescent light illuminates the cooking surface.
Dishwasher-Safe Grease Filter – Captures airborne grease and removes easily for cleaning.
Included Charcoal Filter – Supports recirculating operation when exterior ducting is unavailable.
Internal Blower – Integrates the ventilation motor within the hood for a straightforward installation.

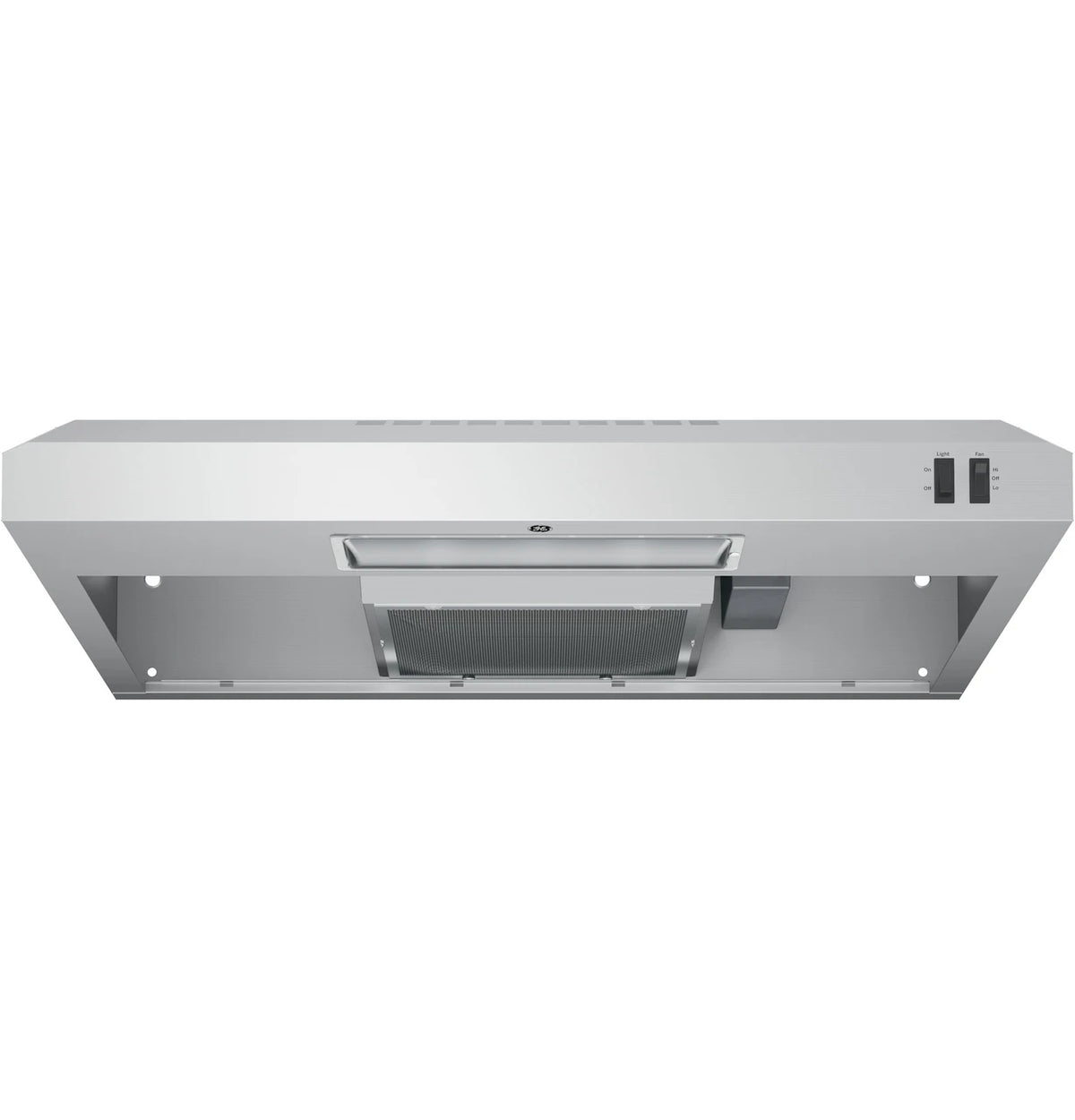

Partially Enclosed Bottom – Provides convenient access to the filter and internal hood components.
Stainless Steel Finish – Coordinates with a wide selection of GE cooking appliances.

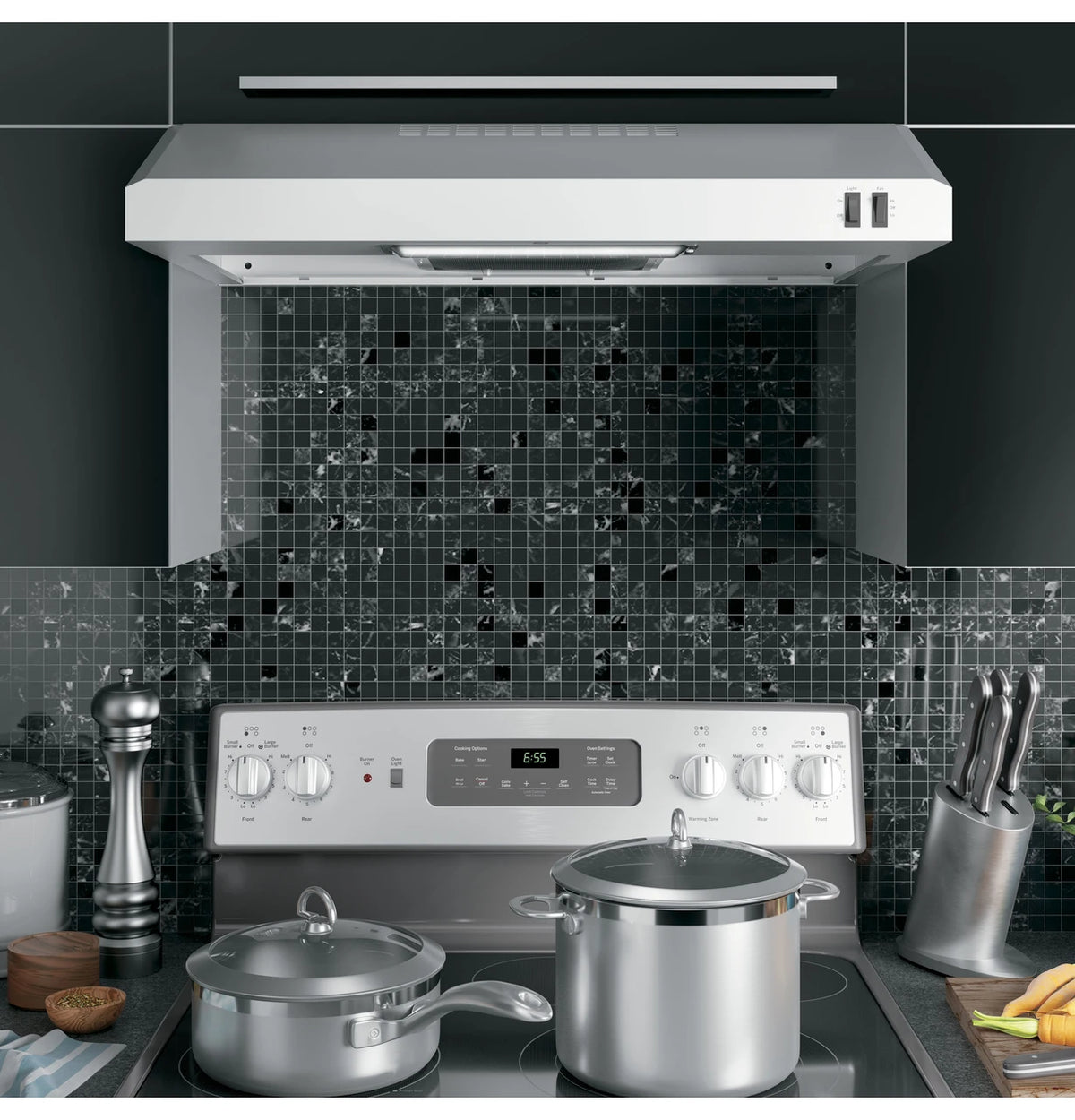

Under-Cabinet Installation – Fits beneath a standard 30-inch wall cabinet for a clean, space-efficient appearance.
Specifications
| Specification | Details |
|---|---|
| Brand | GE |
| Model | JVX3300SJSS |
| Product Type | Under-cabinet range hood |
| Installation Type | Under-cabinet |
| Finish | Stainless steel |
| Cabinet Width | 30" |
| Blower Type | Internal |
| Maximum Airflow | 200 CFM |
| Fan Speeds | 2 |
| Low-Speed Rating | 130 CFM / 5.0 sones |
| High-Speed Rating | 200 CFM / 6.5 sones |
| Controls | Front-mounted rocker switches |
| Venting Type | Convertible |
| Exhaust Options | Exterior venting or recirculating |
| Exhaust Direction | Top or rear |
| Duct Compatibility | 7" round or 3¼" x 10" rectangular |
| Cooktop Lighting | One incandescent light |
| Light Control | On/Off |
| Grease Filter | Removable metal mesh filter |
| Filter Cleaning | Dishwasher safe |
| Charcoal Filter | Included |
| Wi-Fi Connectivity | No |
| ENERGY STAR® Certified | No |
| ADA Compliant | Not listed as ADA compliant |
| Electrical Requirements | 120 V, 60 Hz, 2.5 A |
| Rated Power | 81 W |
| Net Weight | 17 lb. |
| Shipping Weight | 23 lb. |
| Parts Warranty | Limited one-year entire appliance |
| Labor Warranty | Limited one-year entire appliance |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 29 7/8" |
| Overall Height | 5 1/2" |
| Overall Depth | 20" |
| Recommended Cabinet Width | 30" |
| Rectangular Duct Opening | 3 1/4" x 10" |
| Round Duct Diameter | 7" |
| Installation Clearance | Hood must be at least as wide as the cooking surface |
| Mounting Height | Follow the cooking appliance, hood, and local code requirements |
Optional Accessories and Installation
Power Cord Connection Kit – Allows the hood to connect to an appropriately installed grounded three-prong receptacle instead of being hardwired.
Cabinet Spacer – Supports installation beneath deeper cabinetry when additional spacing is required.
Optional Damper – May be used with applicable exterior-venting configurations.
Replacement Grease Filter – Maintains filtration performance when the original metal filter requires replacement.
Replacement Charcoal Filter – Required periodically when the hood is configured for recirculating operation.
Electrical Preparation – Requires a 120-volt, 60 Hz electrical supply installed in accordance with applicable codes.
Exterior Ducting – Duct size, routing, transitions, and termination should be confirmed before installation. Exterior ductwork is not required for a properly configured recirculating installation.
