GE GRS500PVBB ENERGY STAR® 30" Slide-In Electric Range with Crisp Mode
GE GRS500PVBB ENERGY STAR® 30" Slide-In Electric Range with Crisp Mode
The GE GRS500PVBB is a 30-inch slide-in electric range featuring a five-element radiant cooktop and spacious 5.3 cu. ft. oven in a classic black finish.
Crisp Mode combines the bake and broil elements to produce air-fry-like results, while Express Preheat can prepare the oven for baking at 350°F in approximately seven minutes under specified conditions.
The smooth ceramic-glass cooktop includes two Power Boil™ elements, a flexible dual-ring element and a fifth-element warming zone. Self-clean and steam-clean options simplify oven maintenance, while the lower storage drawer keeps cookware close at hand.

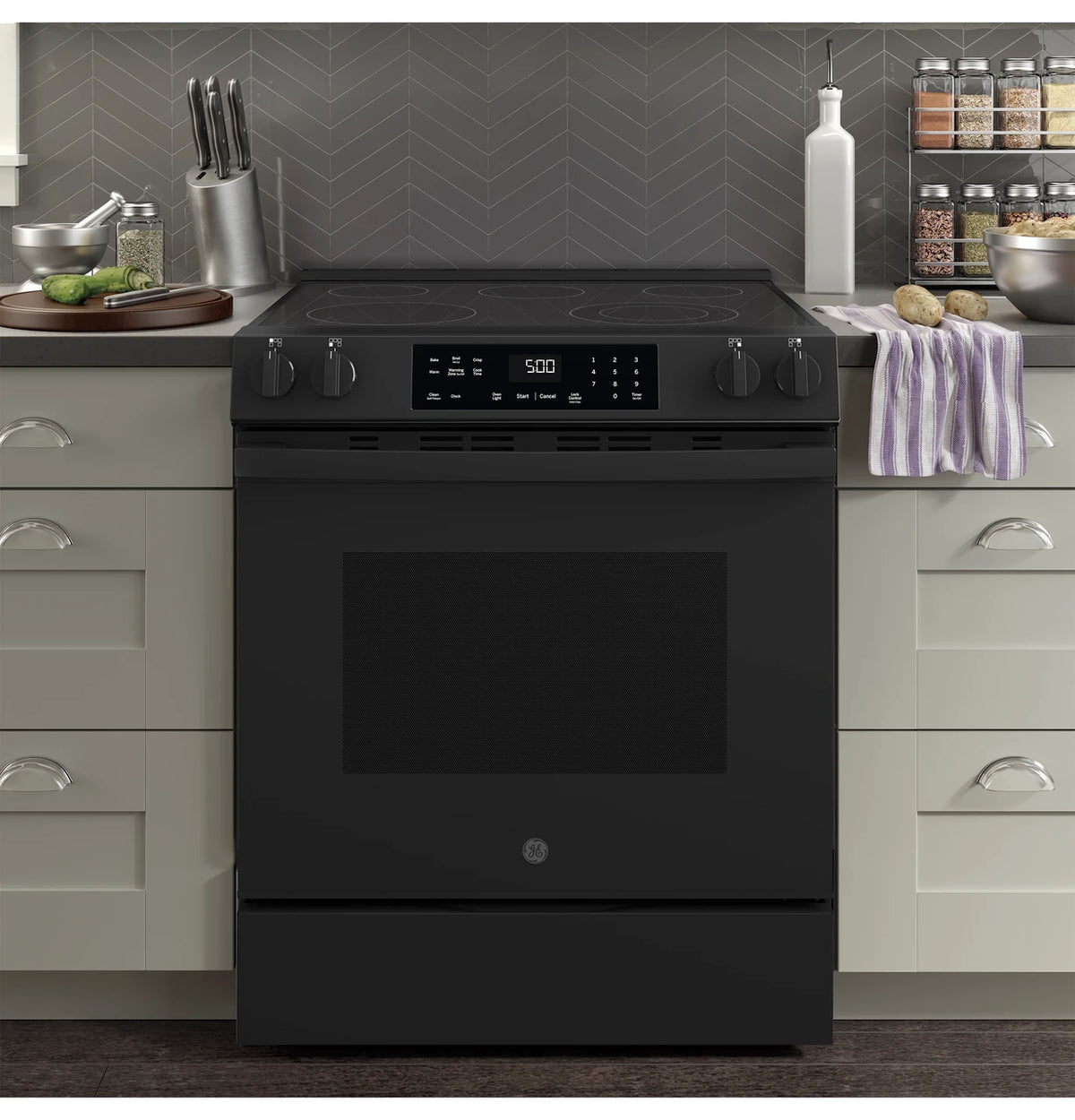

Its front controls and slide-in design create a streamlined appearance between surrounding cabinets. Coastal Appliance Co. provides professional appliance guidance, delivery and installation coordination throughout Hawaii.
Key Features
Crisp Mode – Uses the bake and broil elements to produce crispy, air-fry-like results.
Express Preheat – Preheats the oven to 350°F in approximately seven minutes with one standard rack.
5.3 Cu. Ft. Oven – Provides generous capacity for preparing multiple dishes or larger meals.

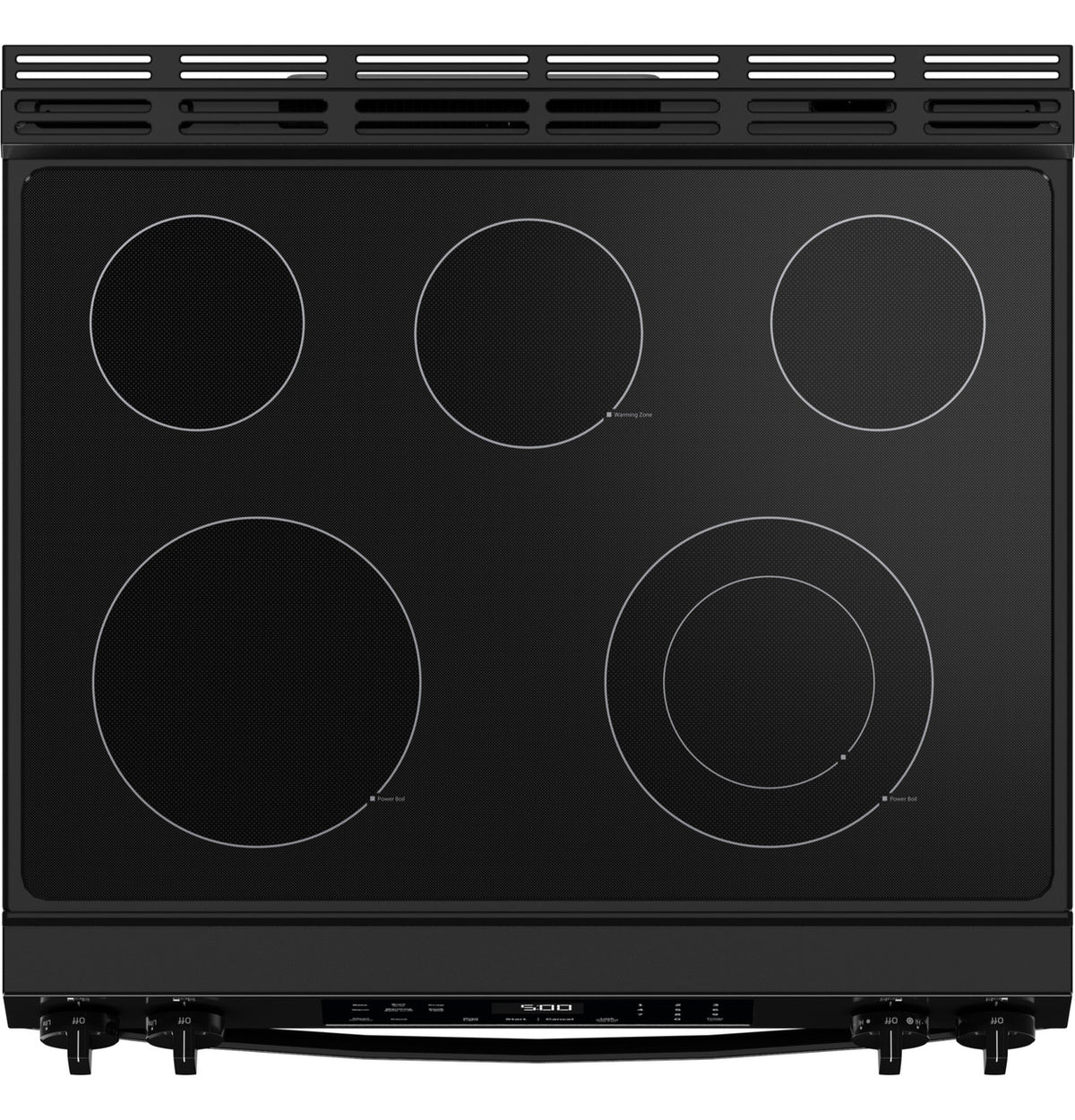

Five-Element Radiant Cooktop – Accommodates cookware of different sizes across a smooth cooking surface.
Dual-Ring Power Boil™ Element – Switches between 6- and 9-inch heating areas to match different cookware.
Additional Power Boil™ Element – Provides a second high-powered cooking zone for boiling and searing.
Fifth-Element Warming Zone – Maintains serving temperature using gentle, controlled heat.
Ceramic-Glass Cooktop – Offers a smooth surface that wipes clean easily after cooking.
Dual-Element Oven – Upper and lower heating elements support consistent baking and roasting.
Self-Clean Oven – Uses a high-heat cleaning cycle for heavily soiled oven interiors.
Steam Clean – Provides a convenient option for lighter, more frequent oven cleaning.

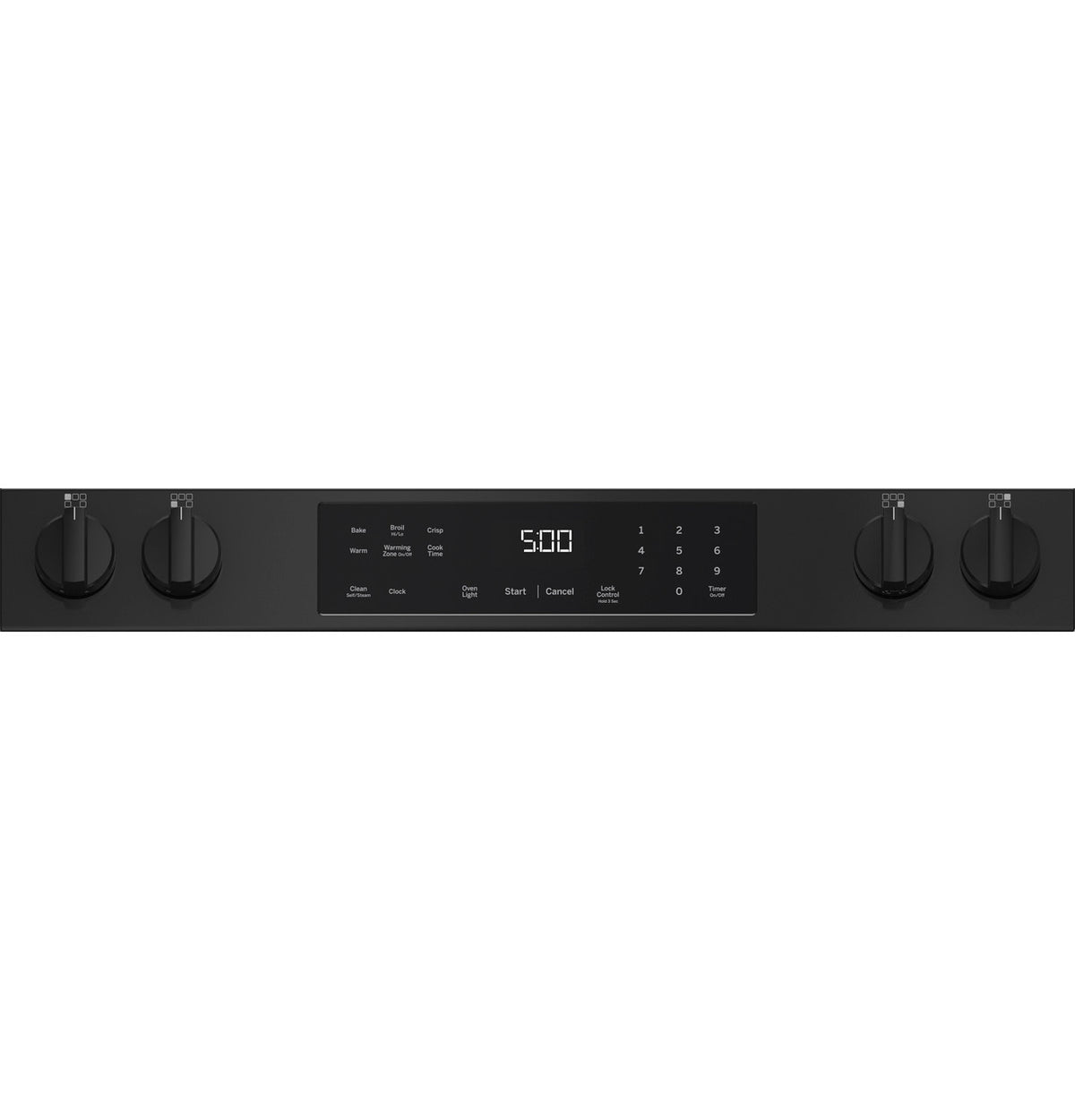

Front Controls – Places cooking controls within easy reach without requiring access over hot cookware.
Storage Drawer – Provides convenient space for cookware and kitchen accessories.
ENERGY STAR® Certified – Meets ENERGY STAR efficiency requirements for electric ranges.
Specifications
| Specification | Details |
|---|---|
| Brand | GE |
| Model | GRS500PVBB |
| Series | 500 Series |
| Product Type | Slide-in single-oven electric range |
| Installation Type | Slide-in |
| Finish | Black |
| Nominal Width | 30 inches |
| Fuel Type | Electric |
| Oven Capacity | 5.3 cu. ft. |
| Cooking Technology | Traditional radiant cooking |
| Cooktop Type | Radiant smoothtop |
| Cooktop Surface | Black ceramic glass |
| Number of Elements | Five |
| Left-Front Element | 9-inch, 3,000-watt Power Boil™ |
| Right-Front Element | 9-/6-inch, 3,100-watt Power Boil™ |
| Left-Rear Element | 6-inch, 1,200 watts |
| Right-Rear Element | 6-inch, 1,200 watts |
| Center Element | 6-inch, 80-watt warming zone |
| Oven Cooking Modes | Bake, Crisp Mode, high broil, low broil and warm |
| Convection | No |
| Bake Element | 2,585 watts |
| Broil Element | 3,410 watts |
| Oven Cleaning | Self-clean with steam-clean option |
| Oven Racks | Two nickel racks |
| Rack Positions | Six |
| Interior Oven Light | One |
| Drawer Type | Storage drawer |
| Sabbath Mode | Yes |
| Enhanced Shabbos Mode | Compatible with optional Shabbos Keeper |
| ADA Compliant | Yes |
| ENERGY STAR Certified | Yes |
| UL Listed | Yes |
| Electrical Requirements | 208/240 volts, 60 Hz, 40 amps |
| Power Rating at 208 Volts | 9.1 kW |
| Power Rating at 240 Volts | 12.1 kW |
| Net Weight | Approximately 147 pounds |
| Warranty | Limited one-year parts and labor |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 30 inches |
| Overall Height | 37 1/8 inches |
| Overall Depth | 28 5/8 inches |
| Depth Without Handle | 26 1/4 inches |
| Depth with Door Open | 48 1/4 inches |
| Height to Cooking Surface | Adjustable from 35 5/8 to 36 1/2 inches |
| Cabinet Opening Width | 30 inches |
| Oven Interior Width | 24 1/8 inches |
| Oven Interior Height | 19 1/4 inches |
| Oven Interior Depth | 19 1/2 inches |
| Minimum Clearance Above Cooktop | 30 inches to an unprotected cabinet |
| Minimum Adjacent-Cabinet Clearance | Approved for 0 inches |
| Recommended Side Clearance | 6 inches to surfaces less than 15 inches above the cooktop |
Installation and Accessories
Installation requires a properly grounded 208- or 240-volt, 40-amp electrical supply. Use a locally approved range cord or flexible conduit appropriate for the existing receptacle and local electrical code. The power cord is sold separately.
The included anti-tip device must be properly installed and engaged. Confirm the 30-inch cabinet opening, countertop height, electrical location and door clearance before delivery.
Optional accessories include an extension glide rack, rear filler strip, compatible cleaning products and three- or four-wire range cords. Confirm accessory compatibility before ordering.
