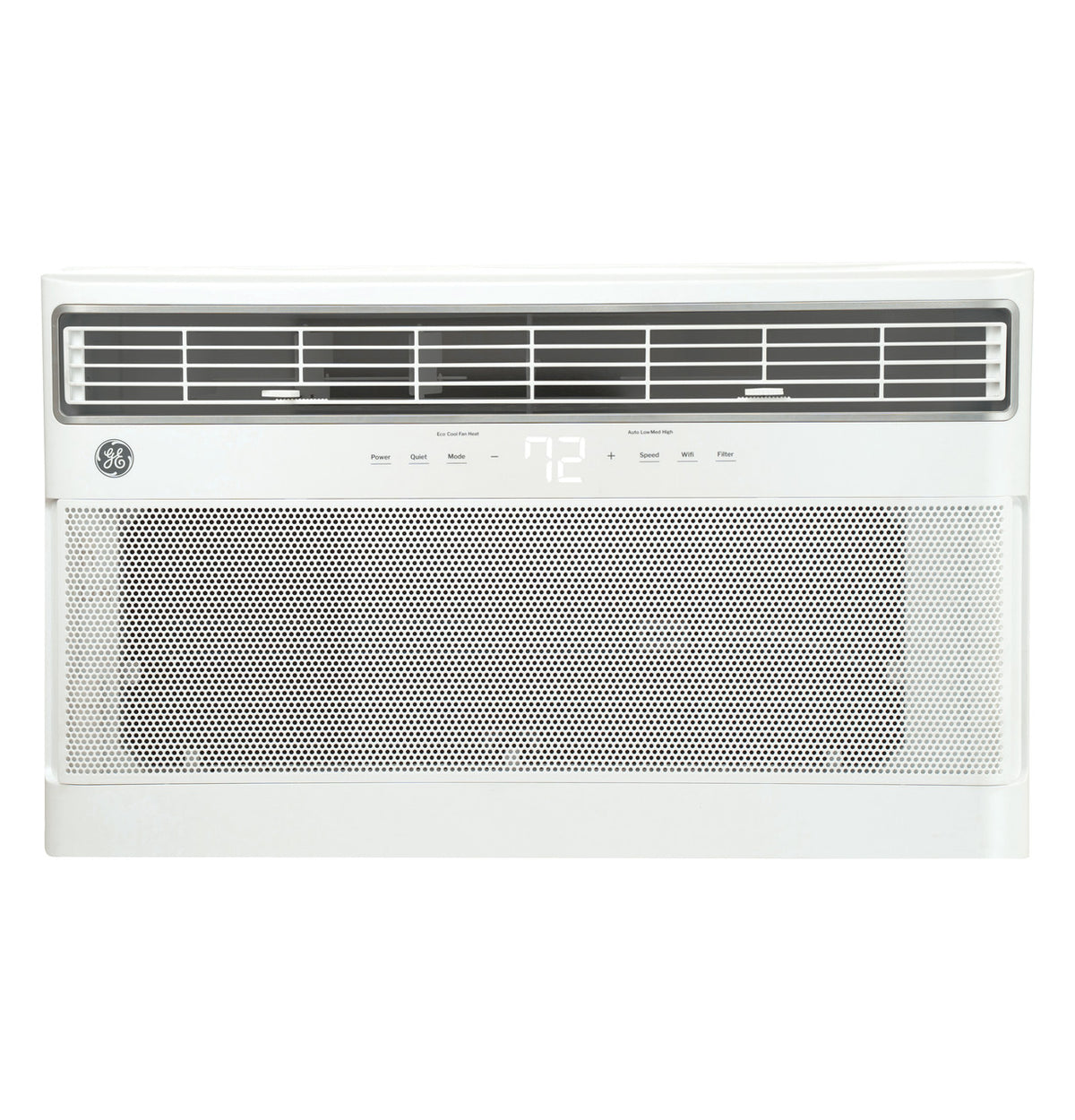

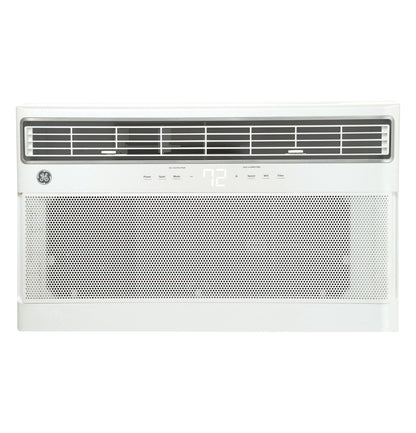

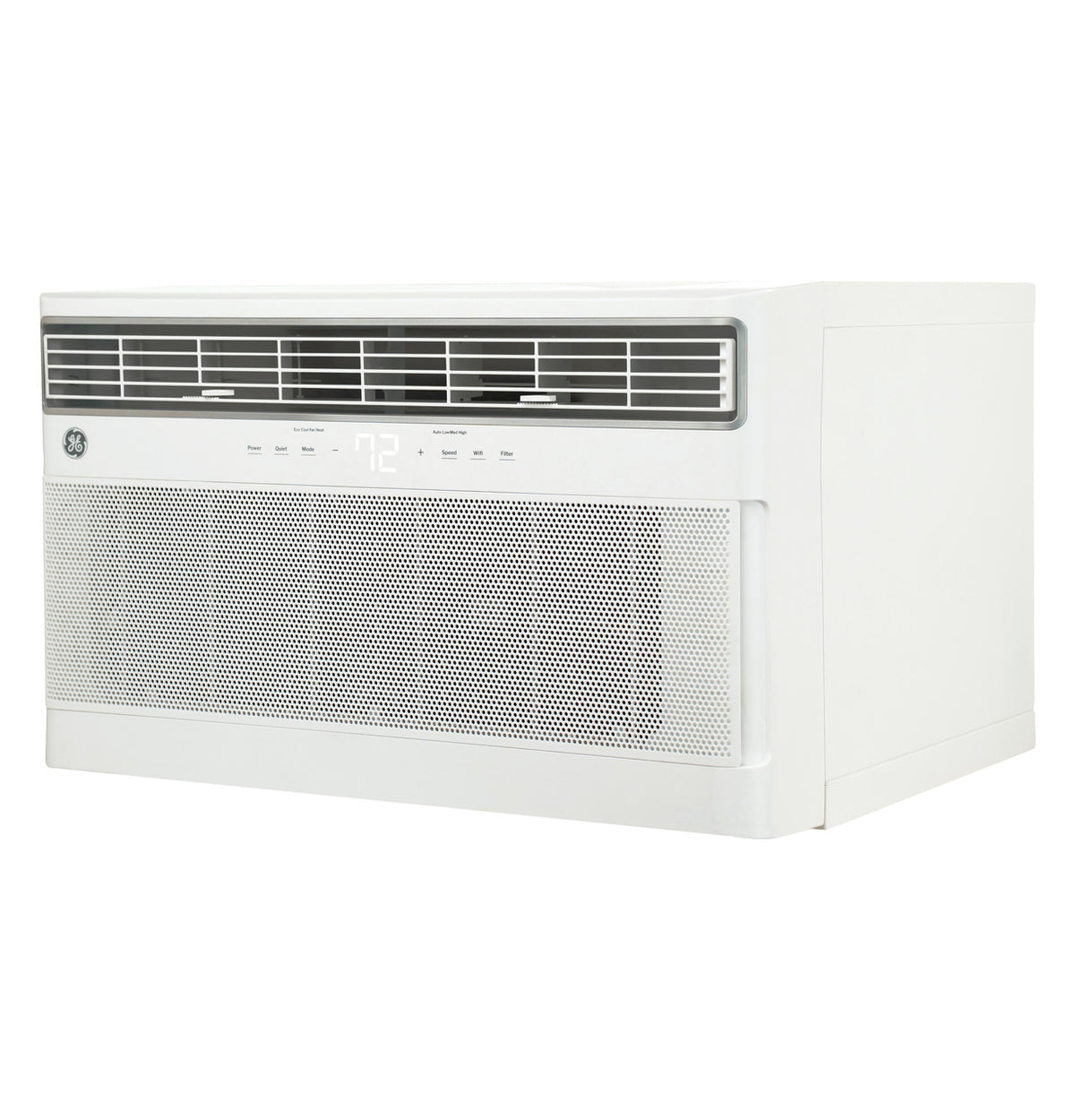

GE AJCQ12AXXWA 26" 12,000 BTU Built-In Smart Air Conditioner 115v
GE AJCQ12AXXWA 26" 12,000 BTU Built-In Smart Air Conditioner 115v
The GE AJCQ12AXXWA is a 26" built-in, cool-only air conditioner with 12,000 BTU of rated cooling capacity, variable-speed inverter technology, and built-in Wi-Fi. Its true built-in design integrates the chassis with a compatible wall sleeve for a clean installation with fewer visible gaps.
Variable-speed operation adjusts cooling output between approximately 6,100 and 12,400 BTU per hour for improved temperature recovery, efficiency, humidity control, and sound quality. Quiet Mode operates the compressor and fan at reduced speeds for comfortable cooling with less disruption.
Built-in SmartHQ™ connectivity enables remote control, notifications, and real-time feedback from a compatible mobile device. Available from Coastal Appliance Co., the AJCQ12AXXWA provides connected, corrosion-protected cooling for Hawaii homes, condos, offices, and multifamily properties.
Installation requires a compatible GE wall sleeve, sold separately. Compatible wall-case families include RAB26/RAB26A, RAB46, RAB47, and RAB48/RAB48B.
Key Features
12,000 BTU Cooling Capacity – Provides powerful cooling performance with an operating capacity range of approximately 6,100–12,400 BTU per hour.
Variable-Speed Inverter Technology – Adjusts compressor output to support faster temperature recovery, improved efficiency, quieter operation, and better humidity control.
True Built-In Design – Integrates the chassis and compatible wall sleeve for a finished installation with minimal gaps or air leakage.
Multiple Wall-Sleeve Options – Works with compatible GE RAB26/RAB26A, RAB46, RAB47, and RAB48/RAB48B wall-case families.
Built-In Wi-Fi – Connects to the SmartHQ™ app for remote operation, notifications, and real-time system feedback.
Quiet Mode – Operates the compressor and fan at reduced speeds to minimize operating noise.
Three Cooling Speeds – Provides high, medium, and low settings for customized room comfort.
Three Fan-Only Speeds – Circulates room air without activating the compressor.
Smart Fan Control – Automatically adjusts fan operation based on the selected temperature and room conditions.
Six-Way Air Direction – Allows cooled air to be directed throughout the room for more balanced comfort.
Electronic Touch Controls – Features a smooth, responsive control panel with convenient access to temperature and fan settings.
Auto-Dimming LCD Display – Provides a large, easy-to-read display that reduces brightness during nighttime operation.

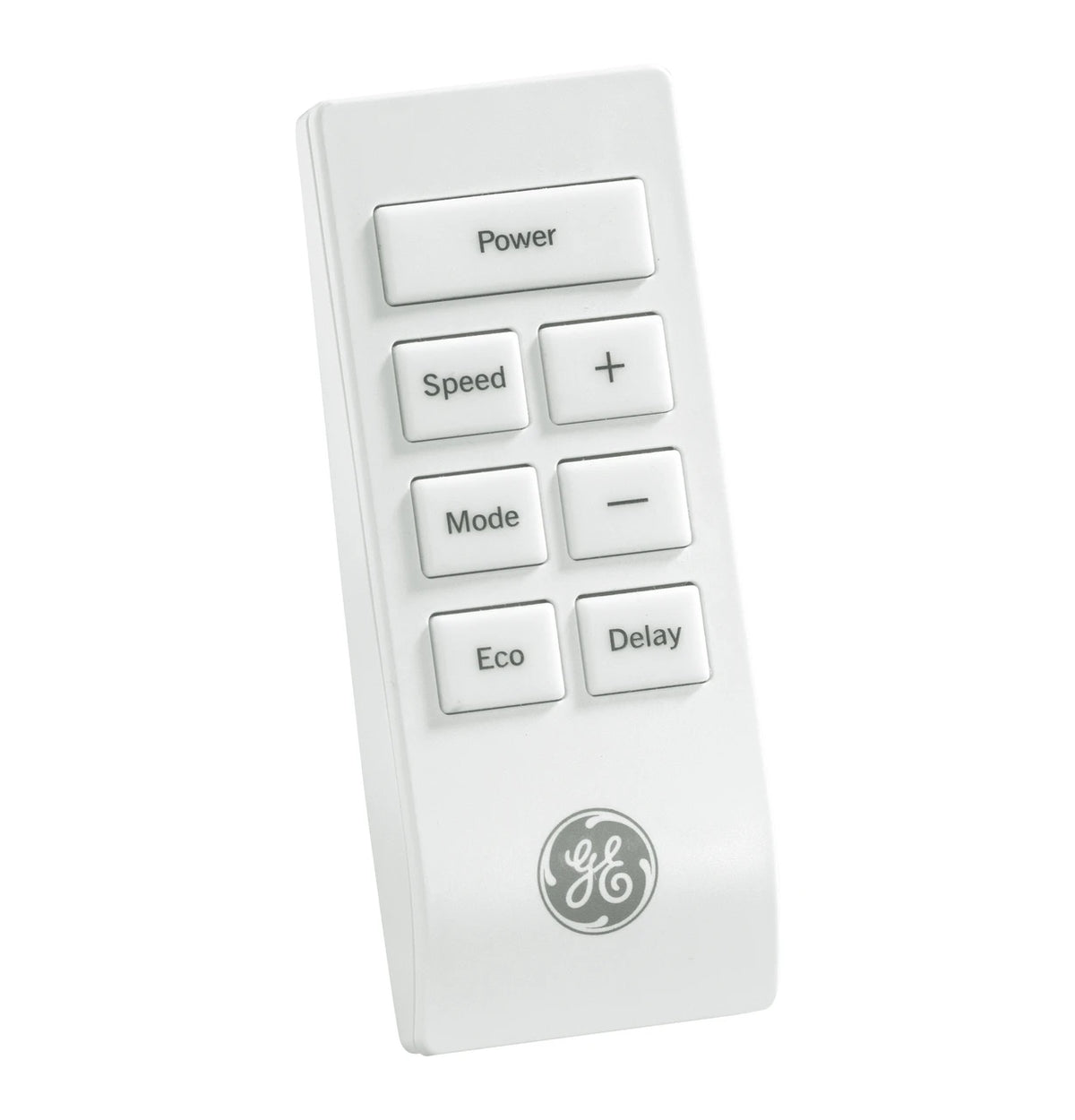

Included Remote Control – Allows temperature, operating mode, and fan adjustments from across the room.
Energy Saver Mode – Cycles the fan and compressor to help reduce unnecessary energy consumption.
Washable Filter – Features a rigid, tilt-out filter that can be removed and cleaned for continued airflow performance.
Filter Reminder – Alerts users when the air filter should be inspected and cleaned.
Corrosion Protection – Protects exterior components for enhanced durability in demanding environments.
Outdoor Vent and Exhaust – Supports outdoor air exchange when fresh-air ventilation is desired.
ADA Compliant – Meets applicable accessibility requirements when installed according to manufacturer guidelines.
Specifications
| Specification | Details |
|---|---|
| Brand | GE |
| Model | AJCQ12AXXWA |
| Product Type | Built-In Room Air Conditioner |
| Installation Type | Through-the-wall |
| Cooling Type | Cool only |
| Finish | White with metallic silver accent |
| Rated Cooling Capacity | 12,000 BTU/hr. |
| Cooling Capacity Range | 6,100–12,400 BTU/hr. |
| Compressor Type | Variable-speed rotary inverter |
| Fan Speeds | 3 cooling, 3 fan-only, and automatic |
| Air Direction | 6-way |
| Temperature Range | 60°F–85°F |
| Controls | Electronic capacitive touch |
| Display | Auto-dimming LCD |
| Remote Control | Included |
| Wi-Fi | Built in |
| Connected Platform | SmartHQ™ |
| Energy Saver Mode | Yes |
| Quiet Mode | Yes |
| Dehumidification | 3.4 pints per hour |
| Outdoor Vent and Exhaust | Yes |
| Filter Type | Rigid, tilt-out, and washable |
| Filter Reminder | Yes |
| Refrigerant | R32 |
| EER | 10.5 |
| CEER | 10.5 |
| Cooling Power Consumption | 1,130 watts |
| Rated Cooling Amperage | 10.3 amps |
| Electrical Requirements | 115V / 60Hz / single phase |
| Power Cord | LCDI safety cord |
| Cord Length | 75" |
| Plug Type | Parallel/right-angle |
| Compatible Wall Sleeves | GE RAB26/RAB26A, RAB46, RAB47, and RAB48/RAB48B wall-case families |
| Wall Sleeve Included | No; required and sold separately |
| Exterior Grille Included | No; compatible grille sold separately |
| ADA Compliant | Yes |
| Certifications | UL, cUL, AHAM, and EEV |
| Parts Warranty | Limited 2-year entire appliance |
| Sealed-System Warranty | Limited 5 years |
| Labor Warranty | Limited 1-year entire appliance |
| Net Weight | 92.2 lb. |
| Approximate Shipping Weight | 94 lb. |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 26" |
| Overall Height | 15-5/8" |
| Overall Depth | 21-13/16" |
| Chassis Width Excluding Sleeve | 24-13/16" |
| Chassis Height Excluding Sleeve | 14-7/8" |
| Chassis Depth Excluding Sleeve | 19-29/32" |
| Depth to Louvers | 5" |
| Net Weight | 92.2 lb. |
| Approximate Shipping Weight | 94 lb. |

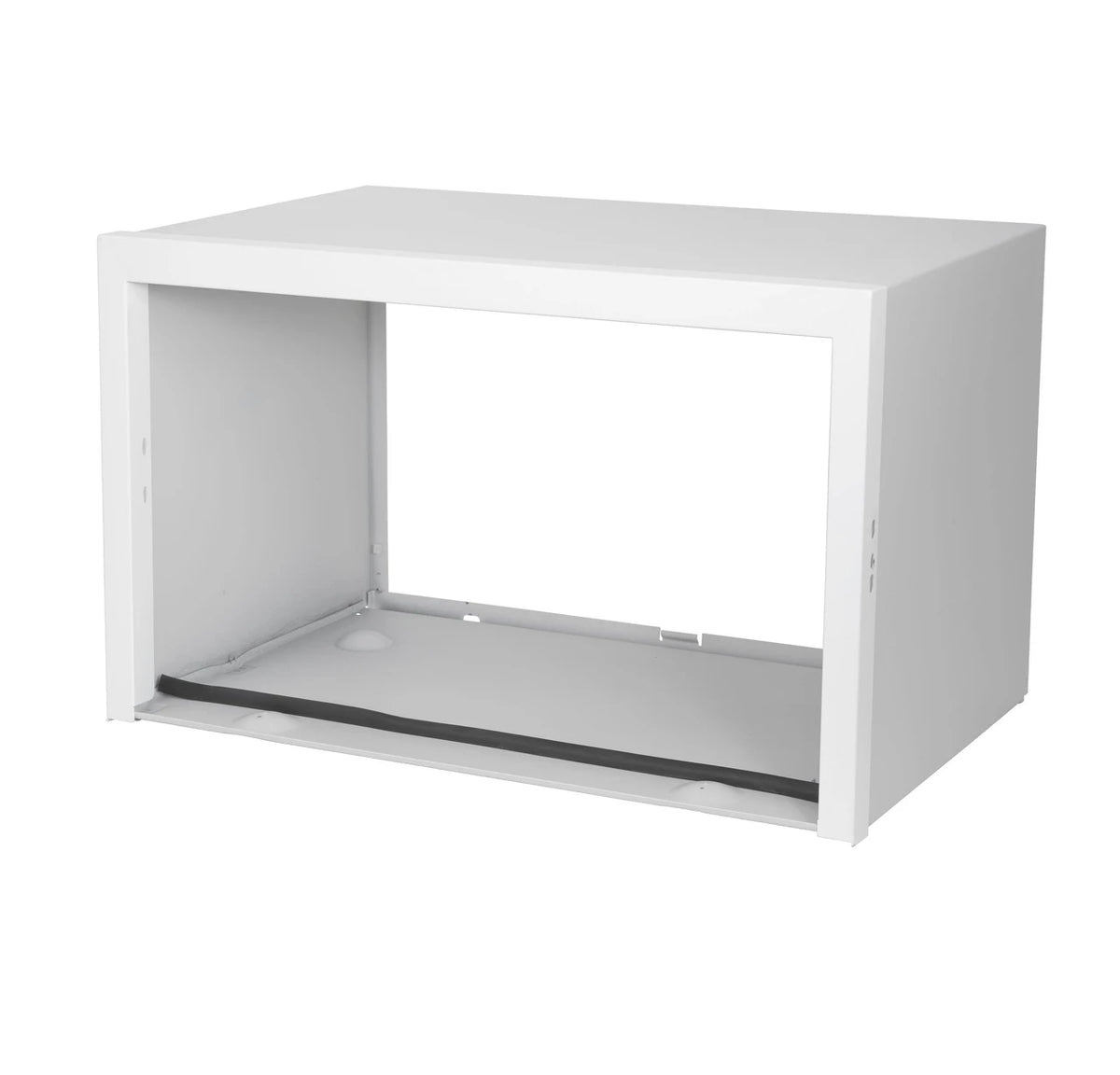

Compatible Wall Sleeves
GE RAB26/RAB26A Quick-Snap Wall Sleeve – Quick-assembly wall case designed for compatible GE J-chassis built-in air conditioners.
GE RAB46 Standard Wall Sleeve – Standard wall case for compatible GE J-chassis built-in air conditioners.
GE RAB47 Tenant-Option Wall Sleeve – J-chassis wall case designed for multifamily and tenant installations.
GE RAB48/RAB48B Wall Sleeve – Compatible built-in air-conditioner wall case for qualifying installations.
A compatible wall sleeve is required and must be purchased separately. An exterior grille may also be required. Confirm the existing wall sleeve’s model, dimensions, condition, and installation requirements before ordering the air conditioner.
