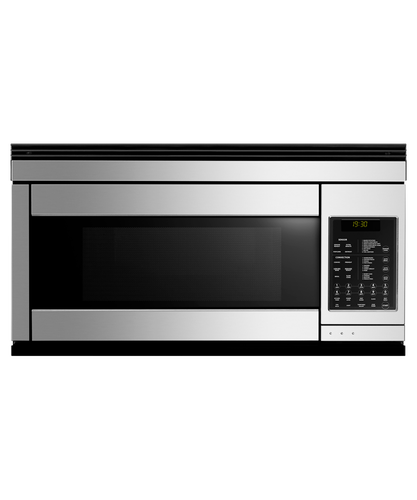

Fisher & Paykel CMOH-30SS-3T 30" Series 5 Contemporary Over-the-Range Convection Microwave

The Fisher & Paykel CMOH-30SS-3T combines microwave speed, convection cooking and cooktop ventilation in a space-saving 30-inch over-the-range design.

Its 1.1-cu.-ft. capacity, 850-watt microwave output and 1,400-watt convection element provide flexibility for reheating, defrosting, baking, roasting and combination cooking. Twelve cooking modes and sensor-controlled programs simplify everyday meal preparation.

A two-speed, 300-CFM ventilation system helps remove cooking smoke, steam and odors from the range below. The ventilation system supports vertical or horizontal exterior ducting and can also be configured for recirculating operation.

Finished in contemporary stainless steel, the CMOH-30SS-3T coordinates with Fisher & Paykel Series 5 cooking appliances. Shop at Coastal Appliance Co. for personalized product guidance, delivery and professional over-the-range microwave installation throughout Hawaii.

Key Features

Microwave and Convection Cooking – Combines an 850-watt microwave with a 1,400-watt convection element for fast reheating, baking and roasting.

Twelve Cooking Modes – Provides convenient programs for frequently prepared foods, including defrost, popcorn and reheat.

Sensor Cooking – Monitors cooking conditions and automatically adjusts time for selected foods.

300-CFM Ventilation – The integrated two-speed fan helps capture smoke, steam and cooking odors from the range below.

Convertible Venting – Supports vertical or horizontal exterior ducting as well as recirculating installation.

Cooktop Lighting – Integrated hood lighting illuminates the cooking surface below the microwave.

Removable Carousel – The turntable can be removed for easier cleaning and accommodation of different cookware.

Interactive Cooking System – The digital display provides step-by-step operating instructions and access to helpful settings.

Stainless-Steel Design – Contemporary styling coordinates with other Fisher & Paykel Series 5 kitchen appliances.

Specifications

Specification	Details
Brand	Fisher & Paykel
Model	CMOH-30SS-3T
Series	Series 5 Contemporary
Product Type	Over-the-Range Convection Microwave
Installation Type	Over-the-Range
Finish	Stainless Steel
Oven Capacity	1.1 cu. ft.
Cooking Modes	12
Microwave Output	850W
Convection Element	1,400W
Cooking Uniformity	Turntable and Stirrer Fan
Ventilation Capacity	300 CFM
Fan Speeds	2
Venting Options	Vertical, Horizontal or Recirculating
Duct Size	3 1/4" × 10" Rectangular
Cooktop Light	Yes
Filter Cleaning Alert	Yes
Controls	Electronic Touch Controls
Wi-Fi Connectivity	No
Electrical Requirements	120V, 60Hz, 13.2A
Connected Load	1,600W
Required Circuit	Separate Grounded 15A or Greater Circuit
Certifications	UL Listed, FCC Authorized and DHHS Compliant
Residential Warranty	Two-Year Limited Parts and Labor Warranty

Dimensions

Measurement	Size
Nominal Width	30"
Overall Width	29 15/16"
Overall Height	16 11/32"
Overall Depth	15 9/32"
Cavity Width	17 1/8"
Cavity Height	8 1/16"
Cavity Depth	13 13/16"
Approximate Weight	71 lb.
Required Mounting Width	30"
Maximum Upper-Cabinet Depth	12"
Minimum Height from Floor to Upper Cabinet	66"
Minimum Distance from Cooking Surface to Upper Cabinet	30"
Minimum Clearance Above Backsplash	2"

Verify the mounting surface, cabinet dimensions, electrical supply and ventilation configuration before installation. The wall and upper cabinet must be capable of supporting the appliance in accordance with Fisher & Paykel’s installation instructions.
