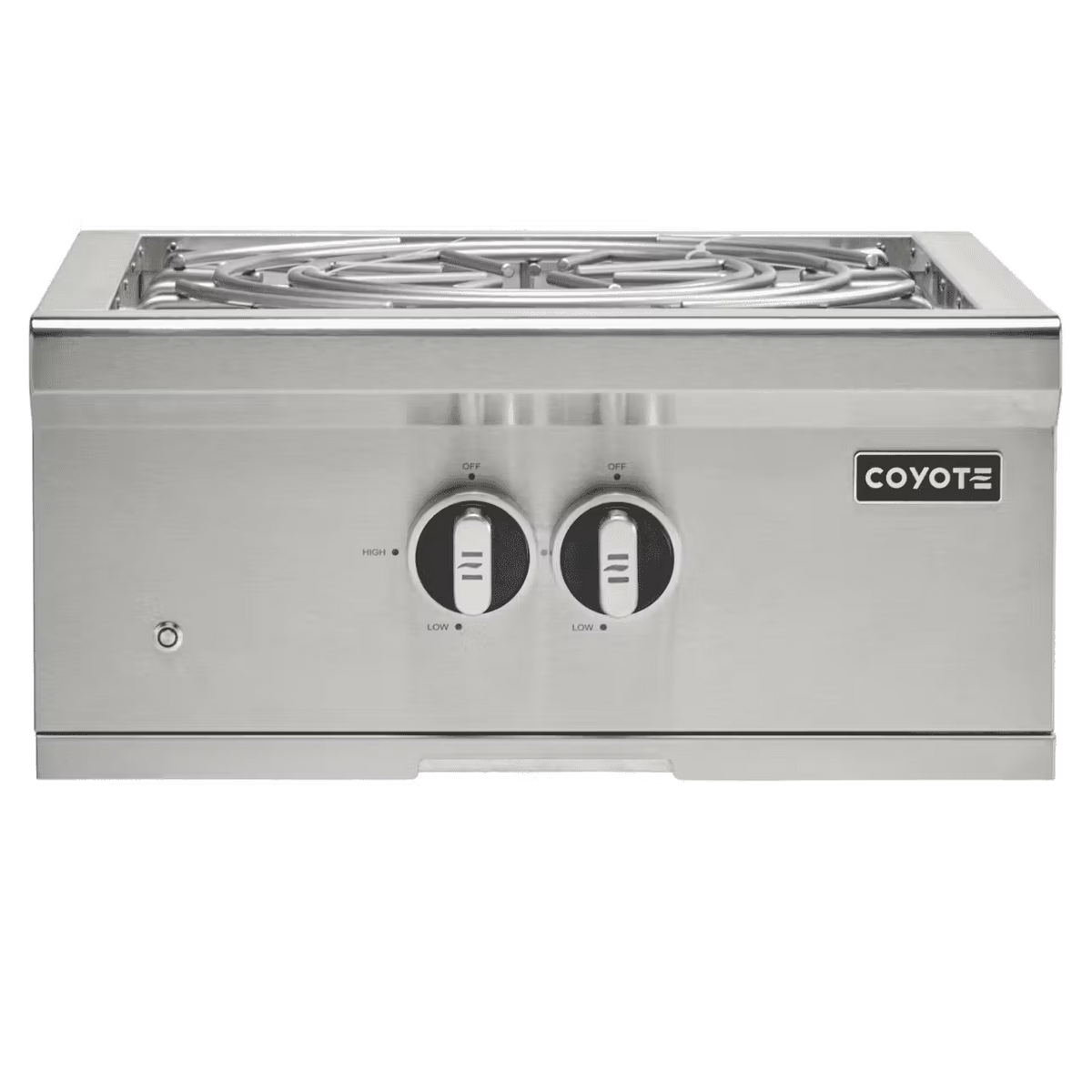

Coyote C3PB 24" Built-In Outdoor Power Burner – Stainless Steel

The Coyote C3PB is a high-performance 24-inch built-in power burner designed for boiling, wok cooking, griddling, frying, and precise simmering outdoors.

Its dual-valve brass burner delivers up to 60,000 BTUs for demanding tasks such as seafood boils and oversized stockpots. The burner can also reduce to approximately 6,000 BTUs for sauces, soups, and other temperature-sensitive recipes.

Durable 304 stainless steel construction, an illuminated control knob, and an included stainless steel cover provide lasting performance and a coordinated appearance within a custom outdoor kitchen.

Available from Coastal Appliance Co., the C3PB is a versatile addition to Hawaii lanais, patios, poolside kitchens, and backyard entertaining spaces. Choose the correct natural gas or propane configuration when ordering.

Key Features

60,000-BTU Maximum Output – Provides powerful heat for seafood boils, large stockpots, frying, and high-temperature outdoor cooking.

6,000-BTU Simmer Performance – Offers lower-temperature control for sauces, soups, and delicate recipes.

Dual-Valve Brass Burner – Combines high-output cooking with precise flame adjustment.

304 Stainless Steel Construction – Provides durable performance and coordinates with Coyote outdoor grills and cabinetry.

Built-In Installation – Integrates directly into a properly constructed outdoor kitchen island or countertop.

Illuminated Control Knob – The redesigned knob and bezel provide visibility and a refined nighttime appearance.

Flame-Thrower Ignition – Provides quick and dependable burner ignition.

Stainless Steel Cooking Grate – Supports large cookware, stockpots, wok accessories, and griddle attachments.

Included Stainless Steel Cover – Protects the burner when it is cool and not in use.

Natural Gas or Propane Options – Available in configurations for either fuel source.

Optional Wok Attachment – Expands the burner for high-heat stir-frying and Asian-inspired cooking.

Optional Teppanyaki Griddle – Converts the burner into a flat cooking surface for breakfast, seafood, vegetables, and seared foods.

Specifications

Specification	Details
Brand	Coyote
Model	C3PB
Product Type	Outdoor Power Burner
Installation Type	Built-In
Nominal Width	24 inches
Exterior Material	304 stainless steel
Burner Material	Brass
Number of Burners	1 dual-valve burner
Maximum Burner Output	60,000 BTUs
Minimum Simmer Output	Approximately 6,000 BTUs
Cooking Grate Material	Stainless steel
Ignition Type	Flame-thrower ignition
Control Type	Illuminated knob and bezel
Safety Valve / Thermocouple	No
Protective Cover	Stainless steel cover included
Fuel Options	Natural gas or liquid propane
Electrical Requirements	120V grounded connection for illuminated controls
Wi-Fi Connectivity	No
ENERGY STAR® Certified	Not applicable
ADA Compliant	Not specified
Outdoor Use	Yes
Indoor Use	No
Commercial Use	No; intended for residential outdoor use
Manufacturer Warranty	Coyote limited residential warranty; coverage varies by component

Dimensions

Measurement	Size
Overall Width	24 inches
Overall Height	13 inches
Overall Depth	24 1/4 inches
Noncombustible Cutout Width	21 inches
Noncombustible Cutout Height	10 1/4 inches
Noncombustible Cutout Depth	21 inches
Minimum Support Opening Below Countertop	1 1/2 inches
Combustible-Material Clearance	Follow the manufacturer’s required clearance or use the approved insulated jacket
Island Ventilation	Required; follow the manufacturer’s cross-ventilation instructions

Optional Accessories

Protective outdoor cover

Insulated jacket for combustible construction

Wok cooking attachment

Teppanyaki griddle

Asado insert sleeve

Outdoor-island ventilation panels

Compatible access doors and storage drawers

Installation Considerations

Select the correct natural gas or liquid propane configuration when ordering. Do not connect the burner to a fuel type for which it was not manufactured.

Install the burner in a properly constructed and ventilated outdoor kitchen island. Gas connections, regulators, and shutoff valves must remain accessible after installation.

An approved insulated jacket is required when combustible materials are located within the manufacturer’s restricted installation area.

The outdoor island must include cross ventilation to prevent the accumulation of heat or gas. Do not position all ventilation openings on the same wall of the enclosure.

Install propane ventilation openings near the bottom of the island because propane is heavier than air. Natural-gas ventilation openings should be positioned higher because natural gas is lighter than air.

A 120V GFCI-protected outdoor electrical connection is required for illuminated components. Keep electrical cords away from water, heated surfaces, and walkways.

Professional installation is recommended to confirm the countertop cutout, fuel supply, gas pressure, electrical connection, island ventilation, combustible clearances, and access requirements.
