Broan GLA1303SS 30" ENERGY STAR® Under-Cabinet Range Hood – Stainless Steel
Broan GLA1303SS 30" ENERGY STAR® Under-Cabinet Range Hood – Stainless Steel

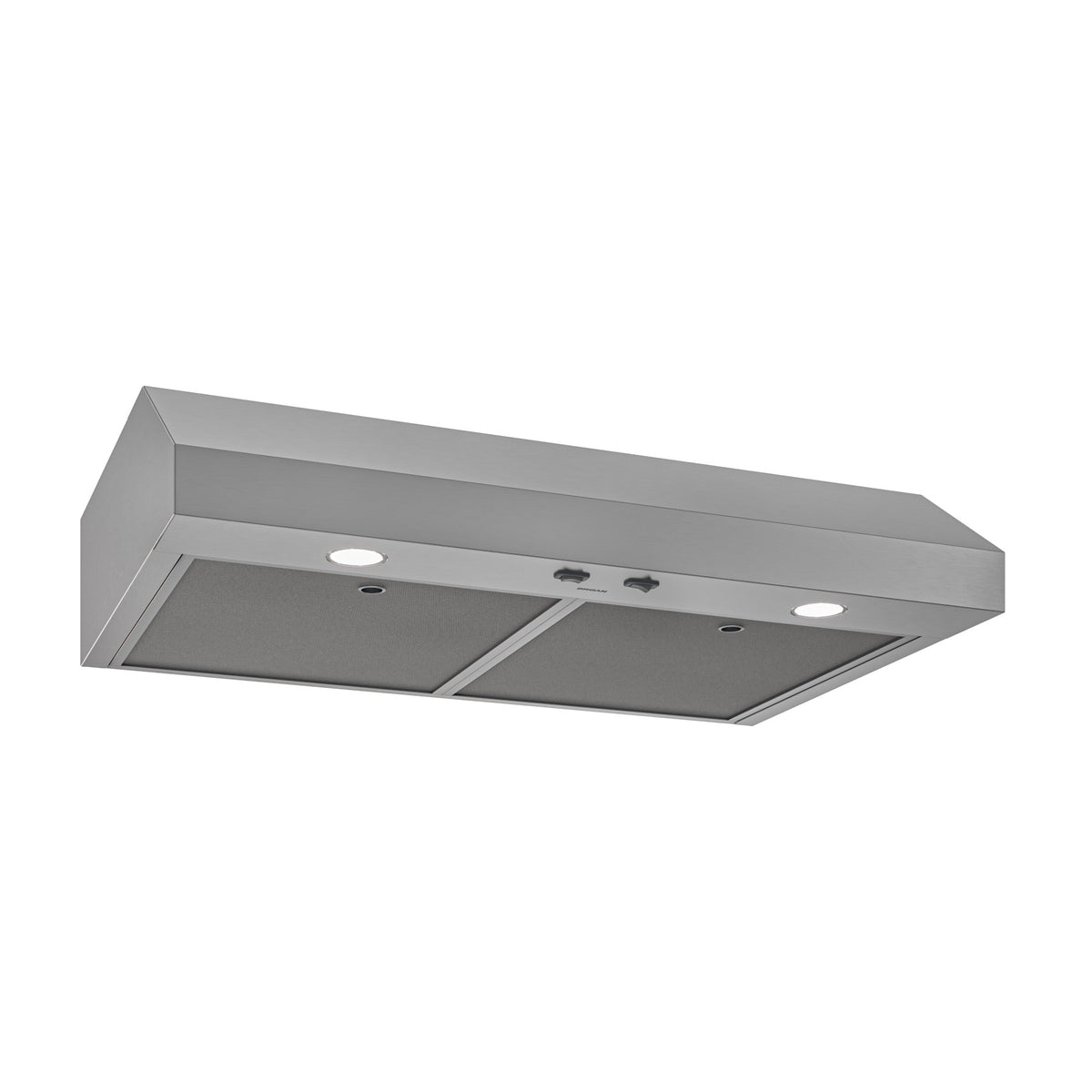

The Broan GLA1303SS is a 30-inch under-cabinet range hood offering powerful, energy-efficient ventilation in a clean stainless steel design.
Its internal blower delivers up to 350 Max Blower CFM to help capture smoke, grease, steam, and cooking odors. Two fan speeds and hidden rocker controls provide simple everyday operation.
Heat-resistant LED lighting illuminates the cooking surface, while two dishwasher-safe micro-mesh filters and a fully enclosed bottom simplify cleaning. Convertible installation supports vertical, horizontal, or non-ducted ventilation.
Available from Coastal Appliance Co., this ENERGY STAR® certified range hood is a practical ventilation solution for Hawaii homes, condominiums, rental properties, and remodeling projects.
Key Features
350 Max Blower CFM – Provides effective airflow for removing smoke, steam, grease, and cooking odors.
ENERGY STAR® Certified – Designed to deliver efficient kitchen ventilation while reducing unnecessary energy consumption.
Quiet Operation – Operates at approximately 1.5 sones on its normal working speed.

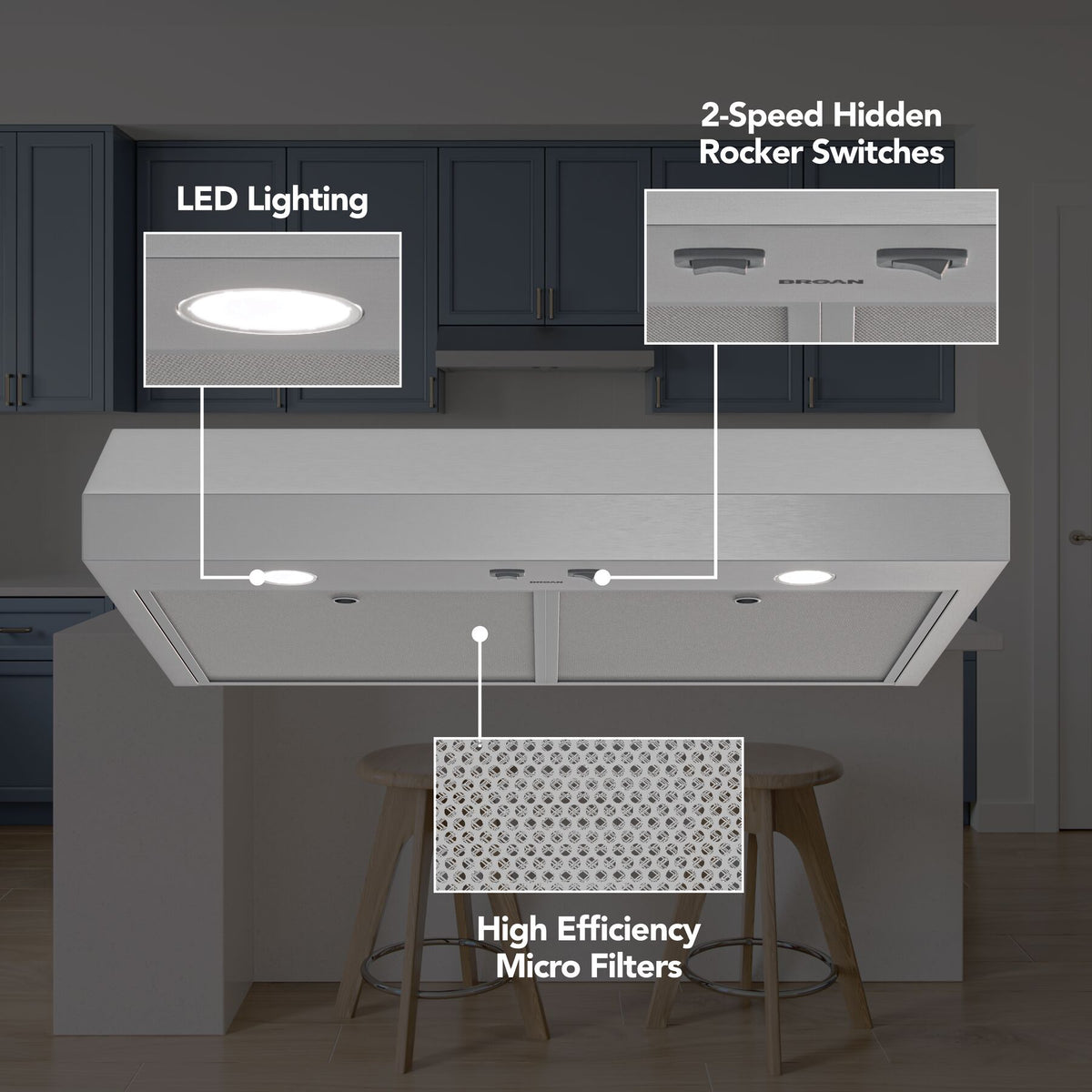

Two Fan Speeds – Hidden rocker controls make it easy to adjust ventilation for different cooking needs.
LED Cooktop Lighting – Heat-resistant LED modules provide bright, energy-efficient illumination over the cooking surface.
Dishwasher-Safe Micro-Mesh Filters – Two high-efficiency filters capture airborne grease and can be placed in the dishwasher for easier maintenance.
Convertible Ventilation – Supports vertical, horizontal, or non-ducted recirculating installation.
EZ1 Installation System – Included mounting brackets help simplify under-cabinet installation.
Fully Enclosed Bottom – Creates a cleaner appearance and makes the hood easier to maintain.
HVI Certified – Airflow and sound performance are independently certified by the Home Ventilating Institute.
Title 24 Compliant – Compliant for qualifying installations above electric cooking appliances.
ADA-Compatible Installation – Can be configured for ADA compliance with an optional low-voltage wall-control kit.
Stainless Steel Finish – Coordinates easily with contemporary ranges and other stainless steel kitchen appliances.
Specifications
| Specification | Details |
|---|---|
| Brand | Broan |
| Model | GLA1303SS |
| Series | Glacier |
| Product Type | Under-Cabinet Range Hood |
| Installation Type | Under-Cabinet |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Blower Type | Internal |
| Maximum Blower Performance | 350 Max Blower CFM |
| Certified Airflow | 250 CFM |
| Fan Speeds | 2 |
| Working Sound Level | 1.5 sones |
| Controls | Hidden rocker switches |
| Lighting | Heat-resistant LED |
| Lighting Levels | 1 |
| Light Modules Included | Yes |
| Filter Type | Micro-mesh grease filters |
| Number of Filters | 2 |
| Dishwasher-Safe Filters | Yes |
| Ventilation Type | Convertible |
| Duct Directions | Vertical or horizontal |
| Ductless Recirculation | Capable with optional charcoal filters |
| Duct Sizes | 3 1/4" × 10" rectangular or 7" round |
| Damper Included | Yes |
| Heat Sentry™ | No |
| Wi-Fi Connectivity | No |
| Remote Operation | No |
| ENERGY STAR® Certified | Yes |
| HVI Certified | Yes |
| Title 24 Compliant | Yes, for qualifying electric-range installations |
| ADA Compliant | Compatible with optional wall-control kit |
| Voltage | 120V |
| Rated Amperage | 1.4A |
| Electrical Connection | Hardwired; optional power cord available |
| Outdoor Approved | No |
| Manufacturer Warranty | 1-year limited warranty; 3-year warranty on LED modules |

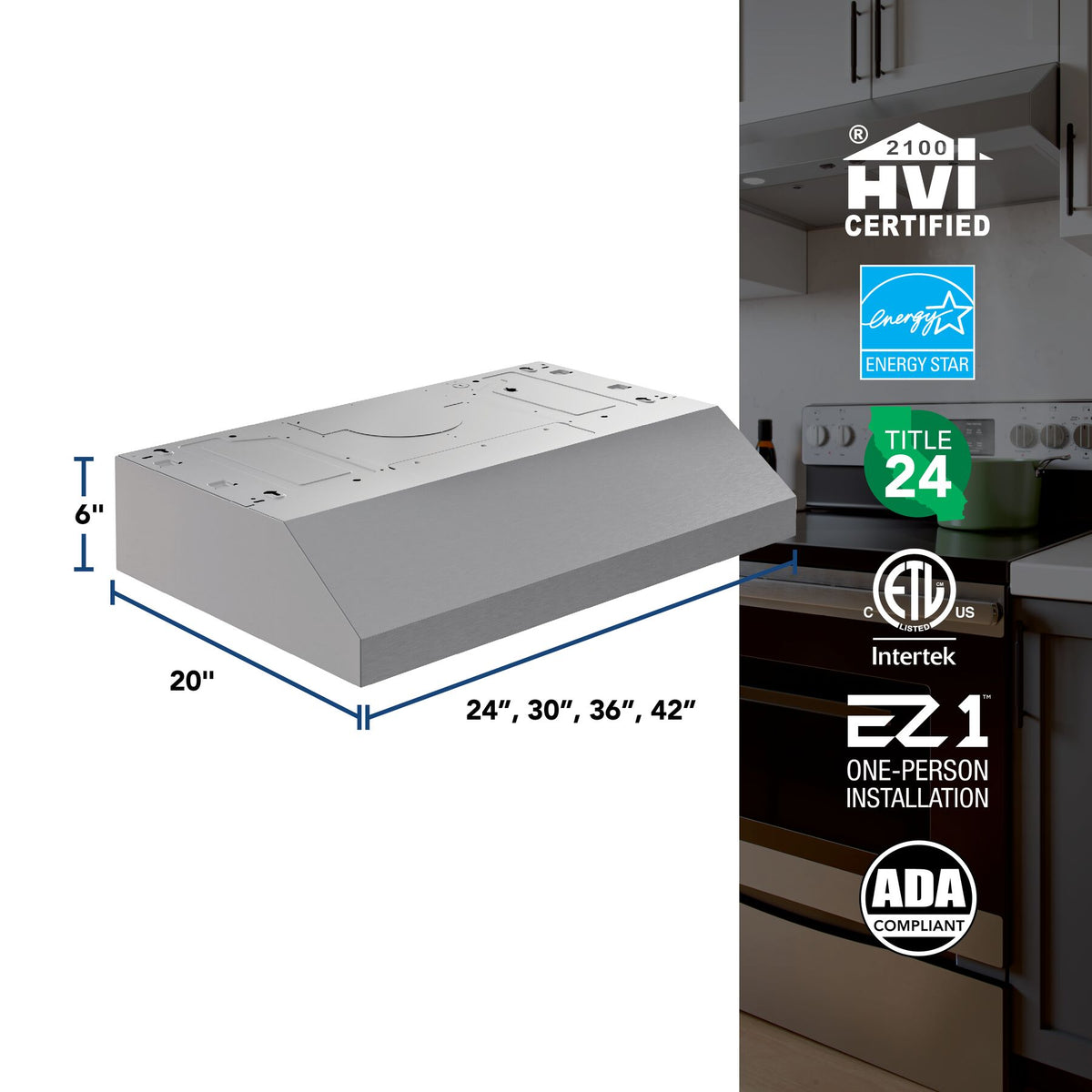

Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 30 inches |
| Overall Height | 5.98 inches |
| Overall Depth | 19.68 inches |
| Minimum Height Above Electric Cooktop | 18 inches |
| Minimum Height Above Gas Cooktop | 26 inches |
| Rectangular Duct Opening | 3 1/4" × 10" |
| Round Duct Connection | 7 inches |
Optional Accessories
Non-ducted charcoal filters
Low-voltage wall-control kit for ADA-compatible installation
Power cord kit
Seven-inch round damper
Automatic makeup-air damper
Replacement micro-mesh grease filters
Installation Considerations
This range hood may be installed with vertical ducting, horizontal rear ducting, or configured for non-ducted recirculation using optional charcoal filters.
For the best ventilation performance, exterior ducting should be kept as short and straight as possible with minimal elbows and transitions.
The hood is designed for hardwired electrical installation. An optional power cord may be used where permitted by the manufacturer and local electrical codes.
Maintain at least 18 inches above an electric cooking surface and 26 inches above a gas cooking surface. Always follow the complete manufacturer installation instructions and applicable Hawaii building requirements.
