Broan F403011 30" Convertible Under-Cabinet Range Hood – White
Broan F403011 30" Convertible Under-Cabinet Range Hood – White

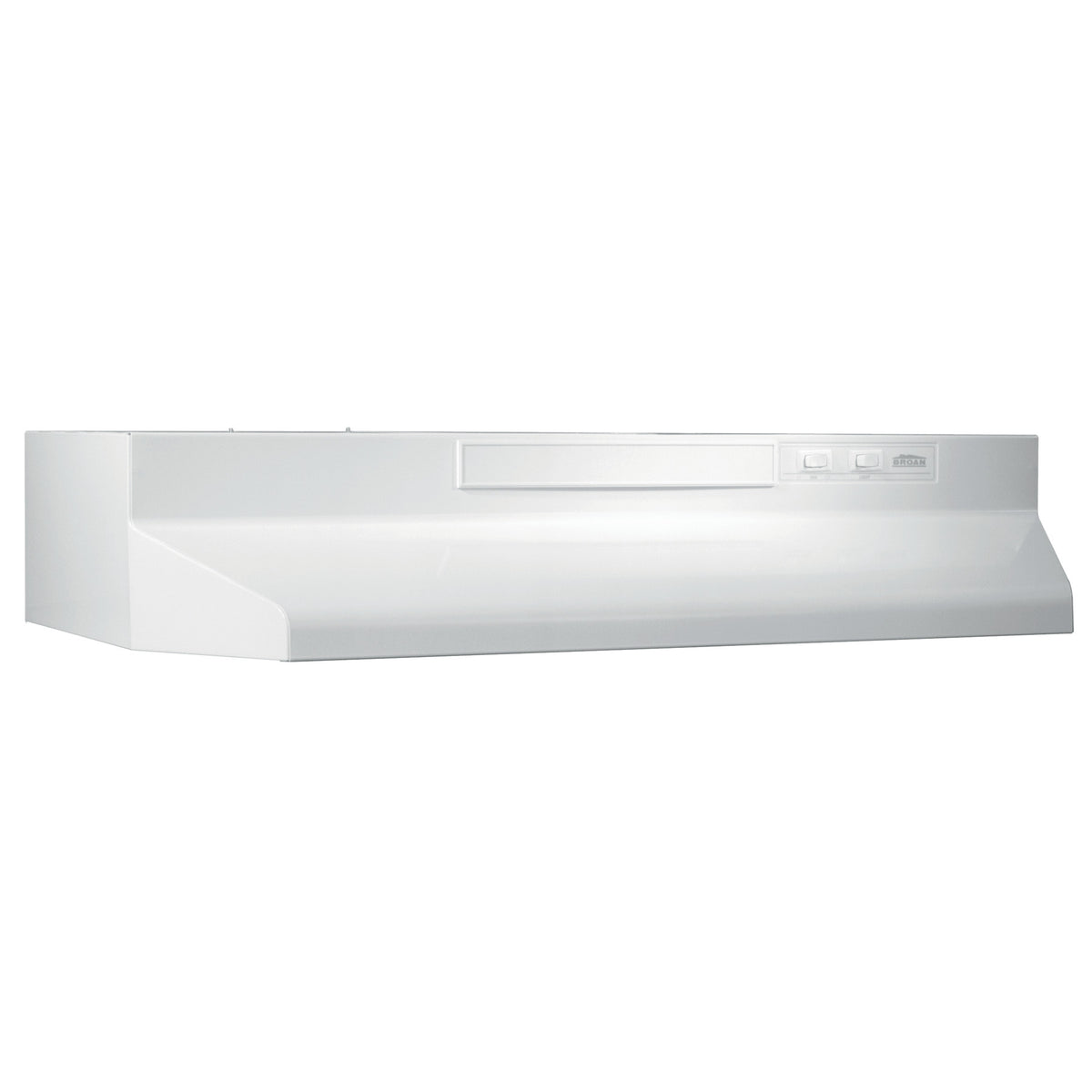

The Broan F403011 is a versatile 30-inch under-cabinet range hood with four-way convertible ventilation and a clean white-on-white finish.
Its internal blower delivers up to 230 Max Blower CFM to help remove smoke, steam, and everyday cooking odors. Two fan speeds and separate rocker controls provide simple, dependable operation.
The convertible design supports vertical rectangular, horizontal rectangular, vertical round, or non-ducted recirculating installation. A dishwasher-safe aluminum filter simplifies regular maintenance.
Available from Coastal Appliance Co., this economical under-cabinet range hood is a practical choice for Hawaii homes, condominiums, apartments, rental properties, and renovation projects.
Key Features
230 Max Blower CFM – Provides dependable ventilation for everyday cooking applications.
Four-Way Convertible Installation – Supports vertical rectangular, horizontal rectangular, vertical round, or non-ducted recirculating installation.
Two Fan Speeds – Allows airflow to be adjusted for light or more demanding cooking tasks.

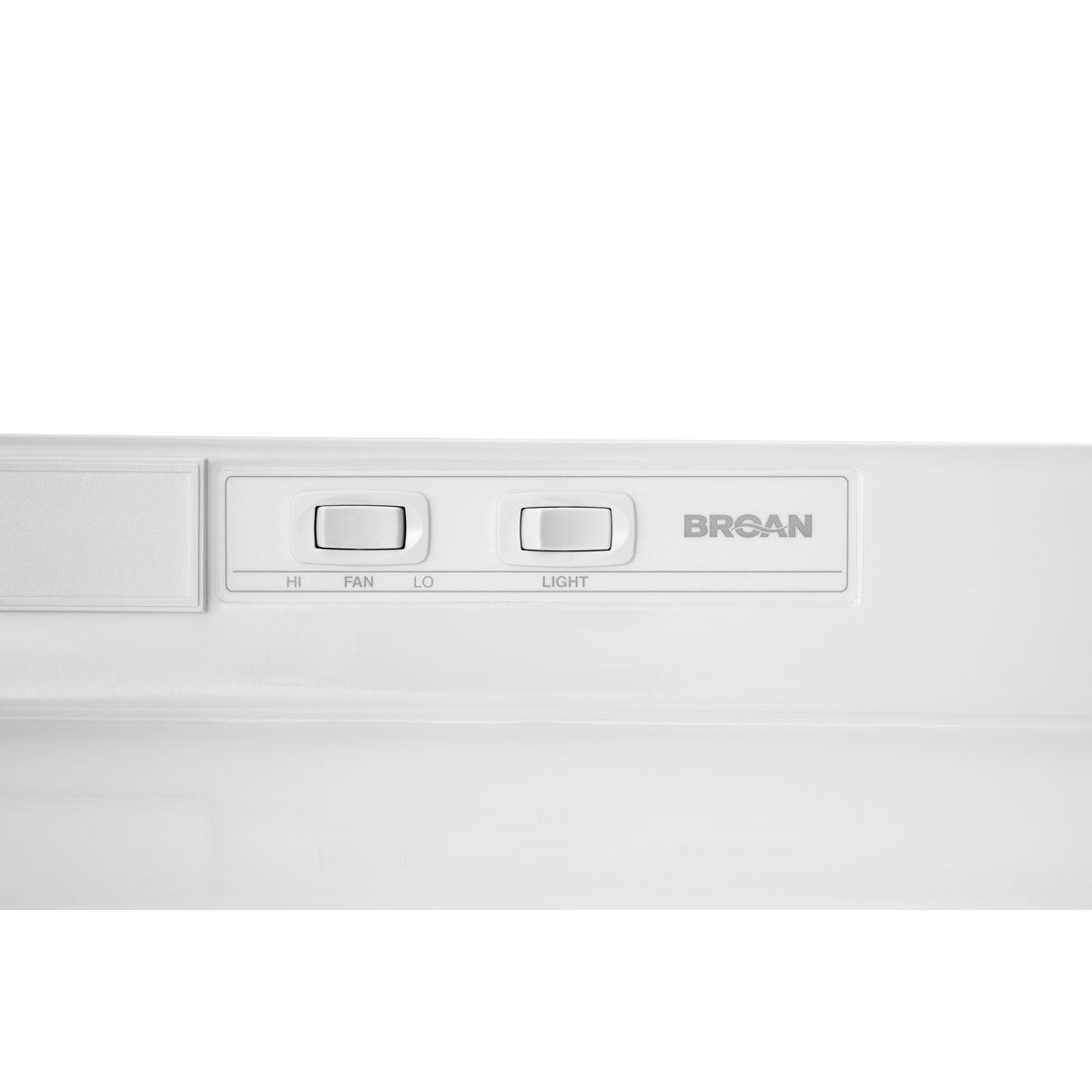

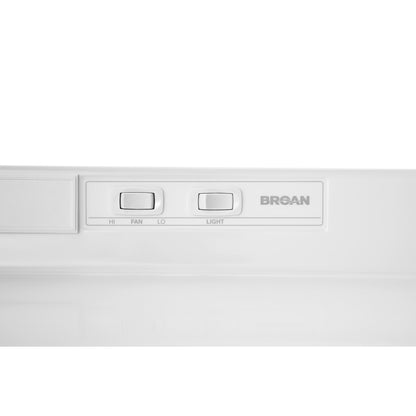

Independent Rocker Controls – Separate switches provide straightforward control of the fan and cooktop light.
Dishwasher-Safe Aluminum Filter – The removable and reusable mesh filter captures airborne grease and cleans easily in the dishwasher.
LED Bulb Compatible – Accepts one A19 LED bulb up to 75 watts for cooktop illumination; bulb is not included.
Flexible Duct Connections – Includes components for rectangular or seven-inch round vertical ducting.
Non-Ducted Capability – Can recirculate filtered air back into the kitchen with an optional charcoal filter.
HVI Certified – Airflow and sound performance are independently tested and certified.
UL Listed – Tested to applicable electrical and safety standards.
ADA-Compatible Installation – Can be used in an ADA-compliant application with appropriate remote wall controls.
Made in the USA – Manufactured in the United States.
Specifications
| Specification | Details |
|---|---|
| Brand | Broan |
| Model | F403011 |
| Series | F40000 |
| Product Type | Convertible Under-Cabinet Range Hood |
| Installation Type | Under-Cabinet |
| Finish | White-on-White |
| Material | Steel |
| Blower Type | Internal |
| Maximum Blower Performance | 230 Max Blower CFM |
| Certified Rectangular-Duct Airflow | Up to 160 CFM |
| Certified Round-Duct Airflow | Up to 190 CFM |
| Fan Speeds | 2 |
| Sound Level | From 3.5 sones; varies by speed and duct configuration |
| Controls | Independent rocker switches |
| Lighting Type | A19 LED bulb compatible |
| Maximum Bulb Wattage | 75 watts |
| Light Bulb Included | No |
| Lighting Levels | 1 |
| Filter Type | Aluminum mesh grease filter |
| Dishwasher-Safe Filter | Yes |
| Ventilation Type | Four-way convertible |
| Duct Directions | Vertical or horizontal |
| Rectangular Venting | Vertical or horizontal |
| Round Venting | Vertical only |
| Ductless Recirculation | Capable with optional charcoal filter |
| Rectangular Damper/Adapter | Included |
| Seven-Inch Round Adapter | Included |
| Seven-Inch Round Damper | Optional |
| Heat Sentry™ | No |
| Wi-Fi Connectivity | No |
| Built-In Timer | No |
| ENERGY STAR® Certified | No |
| HVI Certified | Yes |
| UL Listed | Yes |
| ADA Compliant | Compatible with an appropriate remote wall-control installation |
| Voltage | 120V |
| Rated Amperage | 2.5A |
| Rated Wattage | 240 watts |
| Outdoor Approved | No |
| Country of Manufacture | United States |
| Manufacturer Warranty | 1-year limited warranty |

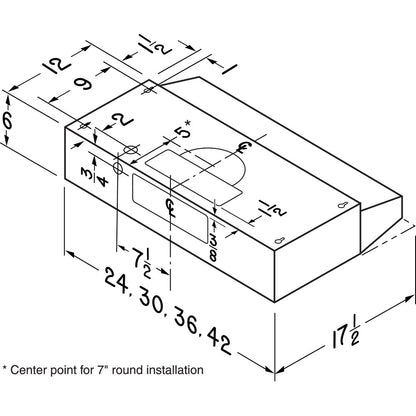

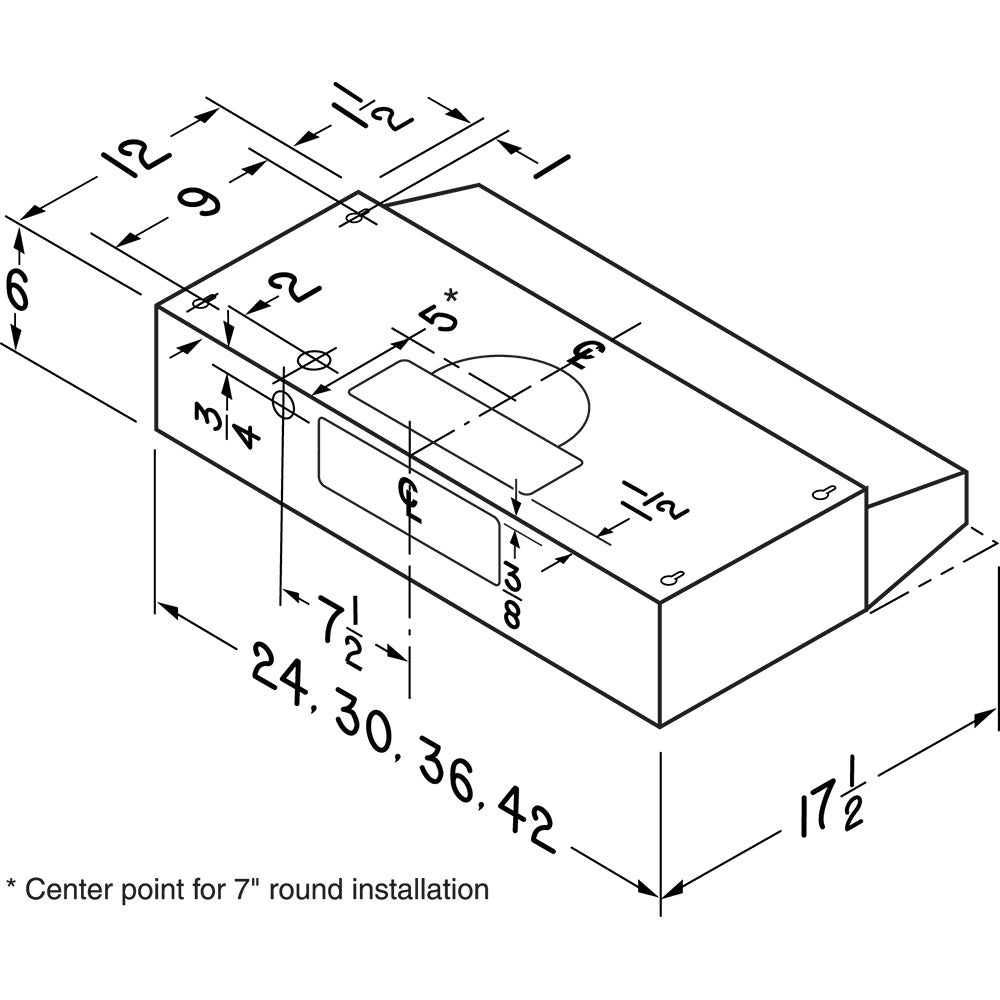

Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 30 inches |
| Overall Height | 6 inches |
| Overall Depth | 17 1/2 inches |
| Rectangular Duct Size | 3 1/4" × 10" |
| Round Duct Size | 7 inches |
| Recommended Mounting Height | 18–24 inches above the cooking surface |
| Installation Location | Indoor use only |
Optional Accessories
Non-ducted charcoal filter
Seven-inch round damper
Remote wall controls for an ADA-compatible installation
Replacement aluminum grease filter
LED cooktop light bulb
Incandescent light guard, if an incandescent bulb is used
Installation Considerations
The hood can be installed with a 3 1/4-by-10-inch vertical duct, a 3 1/4-by-10-inch horizontal rear duct, a seven-inch vertical round duct, or configured for non-ducted recirculation.
Non-ducted installations require an optional charcoal filter. Exterior ducting generally provides better removal of heat, moisture, smoke, and cooking odors.
A rectangular damper and adapter are included. The seven-inch round adapter is included, but the compatible round damper is sold separately.
Install the hood approximately 18 to 24 inches above the cooking surface unless the cooking-appliance instructions or local codes require additional clearance.
Professional installation is recommended to confirm the electrical connection, duct configuration, cabinet dimensions, clearances, and compatibility with the cooking appliance.
