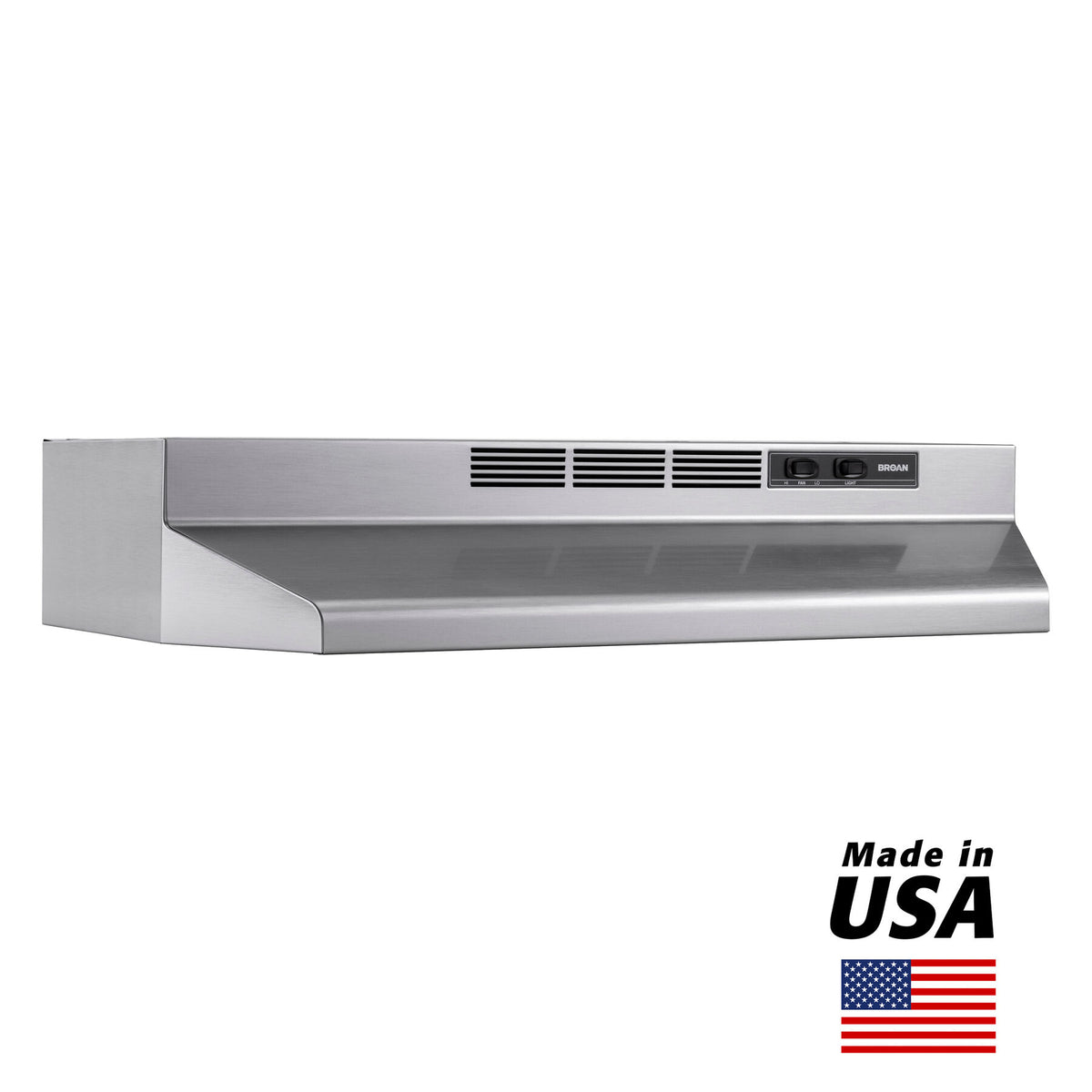

Broan 4124SF 24" Ductless Under-Cabinet Range Hood – Stainless Finish
Broan 4124SF 24" Ductless Under-Cabinet Range Hood – Stainless Finish
The Broan 4124SF is a compact 24-inch ductless under-cabinet range hood with a fingerprint- and scratch-resistant stainless finish.

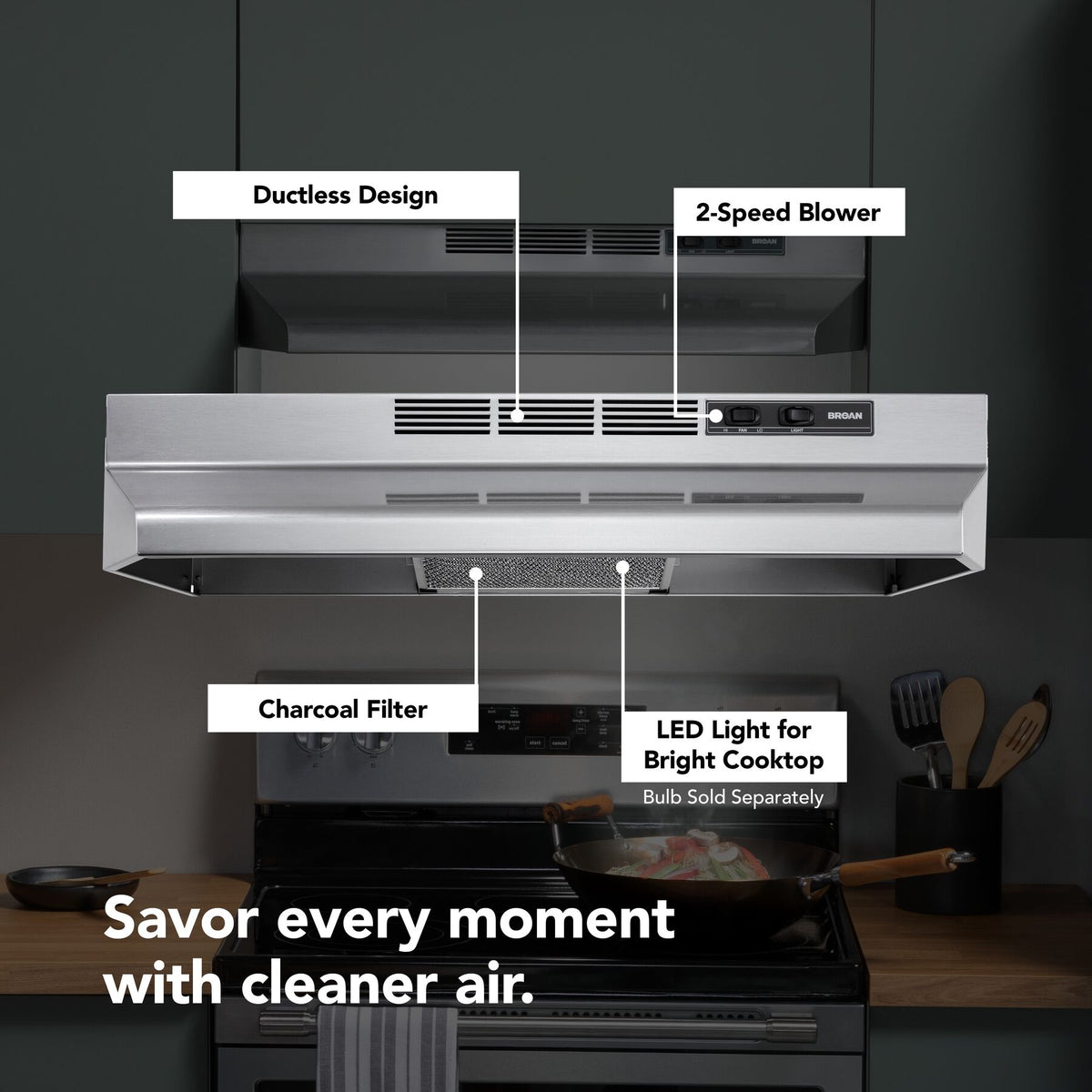

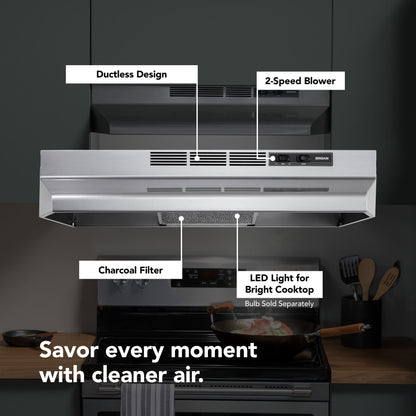

Its non-vented design draws cooking air through an included combination grease and charcoal filter before recirculating the filtered air into the kitchen. A two-speed blower provides simple ventilation for everyday cooking.

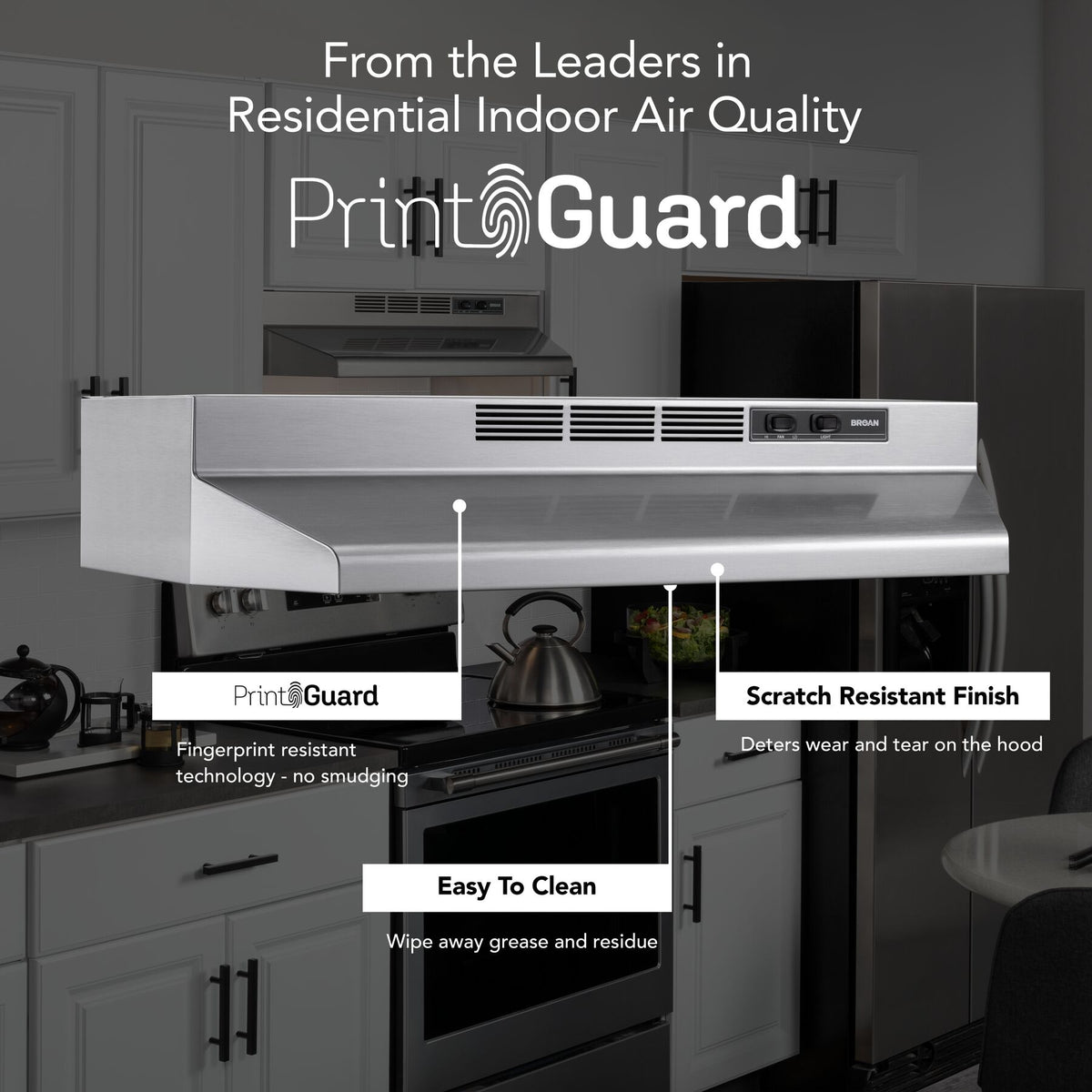

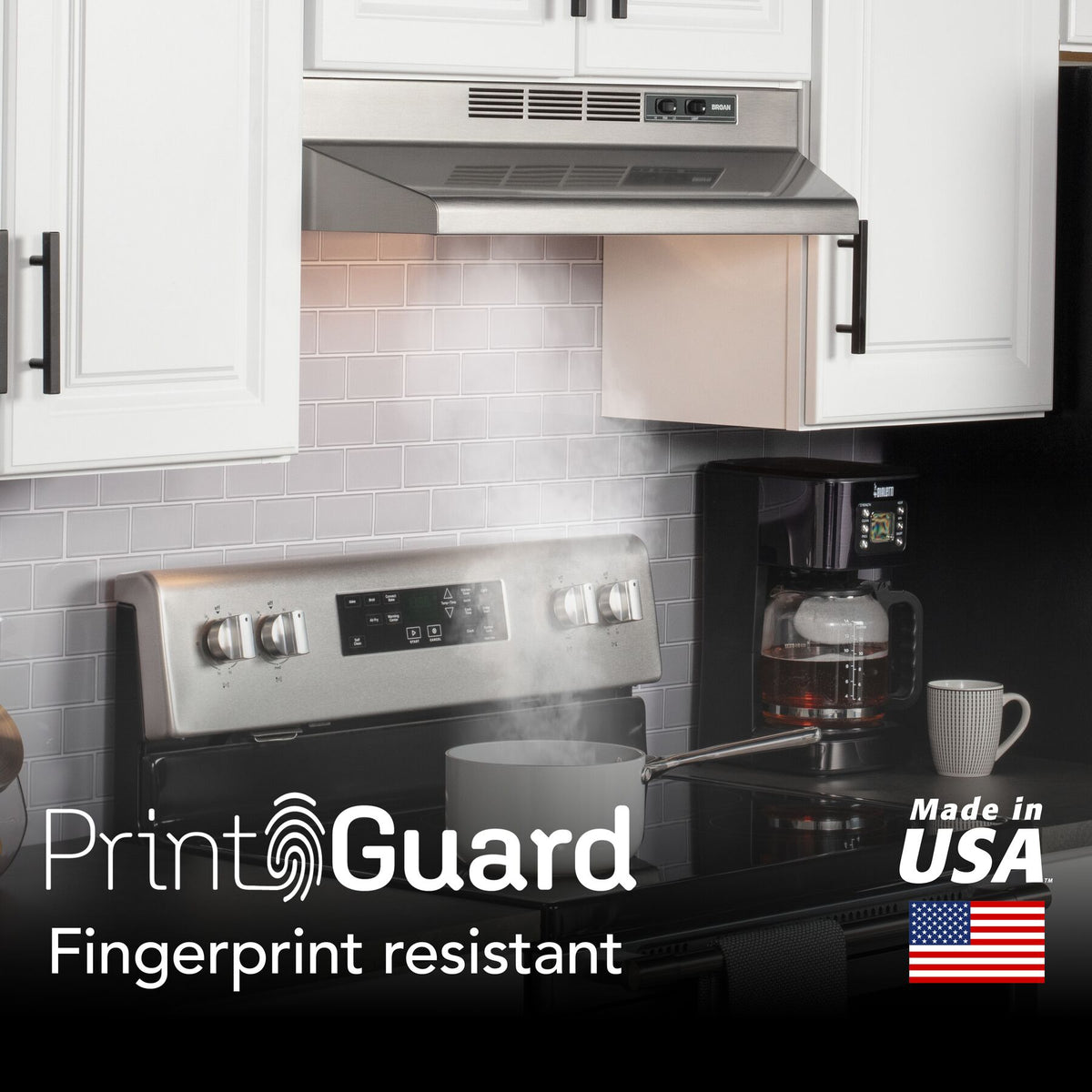

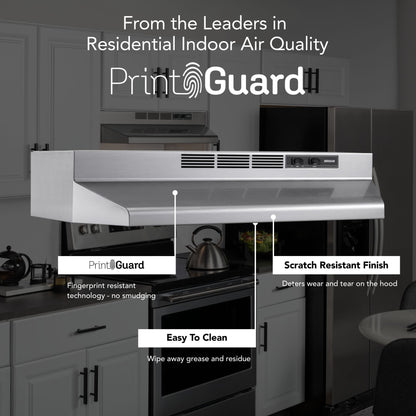

PrintGuard™ technology helps resist fingerprints, scratches, and daily wear while making the exterior and underside easier to clean. Separate rocker switches operate the fan and cooktop light.
Available from Coastal Appliance Co., this compact range hood is a practical choice for Hawaii apartments, condominiums, rental properties, small kitchens, and replacement projects without exterior ductwork.
Key Features
Ductless Recirculating Design – Operates without exterior ductwork for flexible installation in apartments, condominiums, and compact kitchens.
230 CFM Blower – Recirculates cooking air through the included filtration system to help reduce grease, smoke, and odors.
PrintGuard™ Stainless Finish – Resists fingerprints and coordinates with other stainless-finish kitchen appliances.
Scratch-Resistant Surface – Helps reduce visible wear from everyday use and cleaning.
Easy-to-Clean Construction – The exterior and underside wipe clean easily for simpler maintenance.
Combination Grease and Charcoal Filter – The included removable filter captures airborne grease and helps reduce cooking odors.
Two Fan Speeds – Provides adjustable airflow for different everyday cooking needs.
Independent Rocker Controls – Separate switches offer straightforward control of the fan and cooktop light.
LED Bulb Compatible – Accepts one LED bulb up to 75 watts; bulb is not included.
Permanently Lubricated Motor – Designed for dependable operation and minimal routine maintenance.
Hardwired or Corded Installation – Supports standard hardwired installation or an optional power cord where permitted.
ADA-Compatible Installation – Can be configured for accessible operation using appropriate remote wall controls.
UL Listed – Tested to applicable electrical and safety standards.
Made in the USA – Manufactured in the United States with domestic and imported components.
Specifications
| Specification | Details |
|---|---|
| Brand | Broan |
| Model | 4124SF |
| Series | 41000 |
| Product Type | Ductless Under-Cabinet Range Hood |
| Installation Type | Under-Cabinet |
| Finish | PrintGuard™ stainless finish |
| Fingerprint Resistant | Yes |
| Scratch Resistant | Yes |
| Material | Steel |
| Ventilation Type | Non-ducted recirculating only |
| Blower Performance | 230 CFM |
| Fan Speeds | 2 |
| Sound Level | 3.5 sones |
| Controls | Separate rocker switches |
| Lighting Type | LED bulb compatible |
| Maximum Bulb Wattage | 75 watts |
| Light Bulb Included | No |
| Lighting Levels | 1 |
| Filter Type | Combination grease and charcoal filter |
| Ductless Filter Included | Yes |
| Exterior Duct Connection | None |
| Damper Included | Not applicable |
| Heat Sentry™ | No |
| Wi-Fi Connectivity | No |
| Remote Operation | Compatible with an appropriate wall-control installation |
| Built-In Timer | No |
| Boost Mode | No |
| ENERGY STAR® Certified | No |
| HVI Certified | No |
| UL Listed | Yes |
| ADA Compliant | Compatible with an appropriate remote wall-control installation |
| Voltage | 120V |
| Rated Amperage | 2A |
| Rated Wattage | 240 watts |
| Electrical Connection | Hardwired; optional power cord available |
| Outdoor Approved | No |
| Country of Manufacture | United States |
| Manufacturer Warranty | 1-year limited warranty |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 24 inches |
| Overall Height | 6 inches |
| Overall Depth | 17 1/2 inches |
| Minimum Height Above Cooktop | 18 inches |
| Duct Opening | Not applicable |
| Installation Location | Indoor use only |
Optional Accessories
Replacement combination grease and charcoal filter
Power cord kit
Remote wall-control kit for an ADA-compatible installation
LED cooktop light bulb
Incandescent light guard, if an incandescent bulb is used
Installation Considerations
The Broan 4124SF is designed exclusively for non-ducted recirculating installation and does not connect to exterior ductwork.
Cooking air passes through the combination grease and charcoal filter before returning to the kitchen. Replace the filter periodically to maintain grease capture and odor-reduction performance.
The hood is designed for hardwired electrical installation. An optional power cord may be used where permitted by the manufacturer and applicable electrical codes.
Maintain at least 18 inches between the cooktop and the bottom of the hood. Follow any greater clearance required by the cooking-appliance manufacturer or local codes.
Professional installation is recommended to confirm cabinet dimensions, mounting support, electrical requirements, clearances, and cooking-appliance compatibility.
