Broan 412401 24" Ductless Under-Cabinet Range Hood – White
Broan 412401 24" Ductless Under-Cabinet Range Hood – White

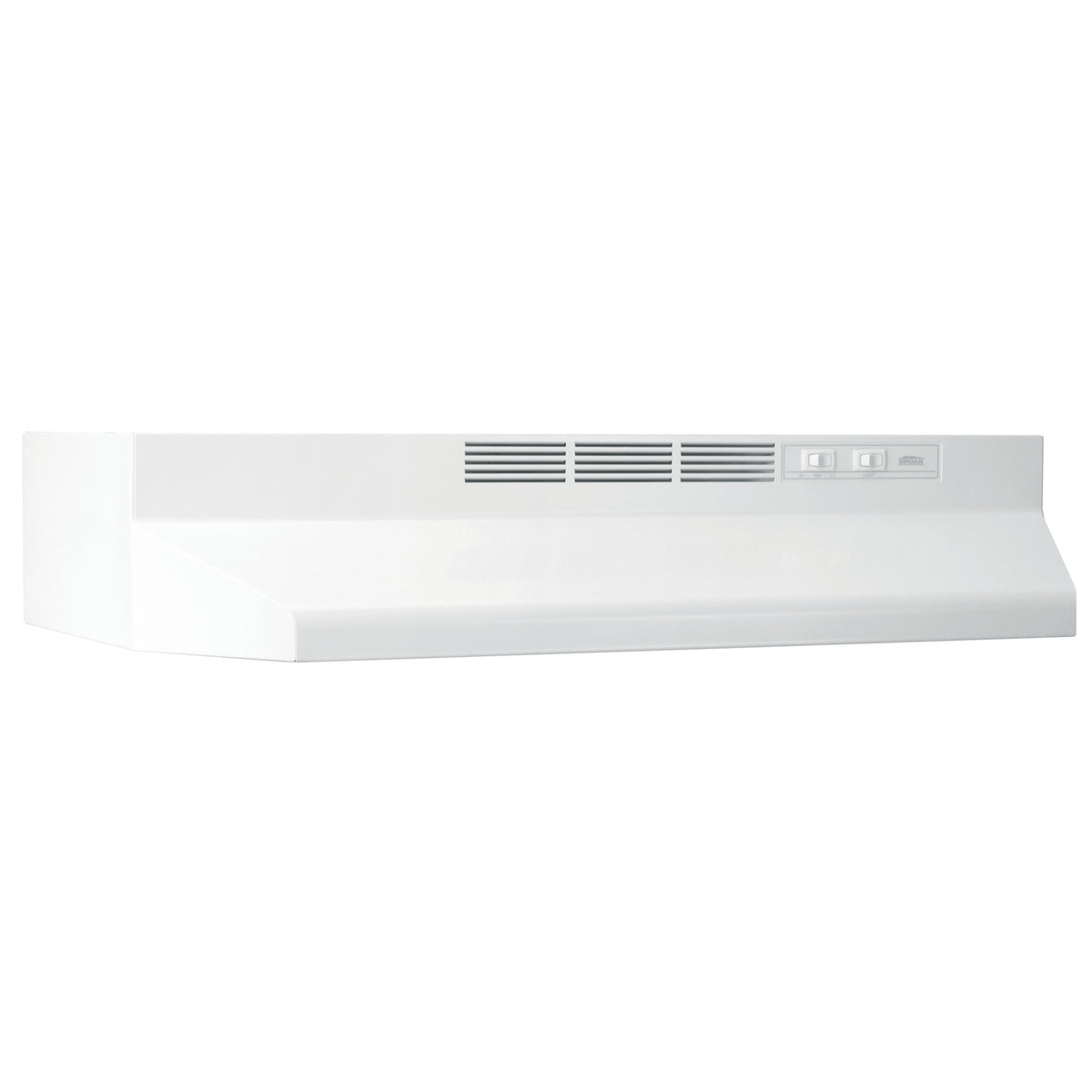

The Broan 412401 is a compact 24-inch ductless under-cabinet range hood designed for kitchens where exterior ductwork is unavailable.

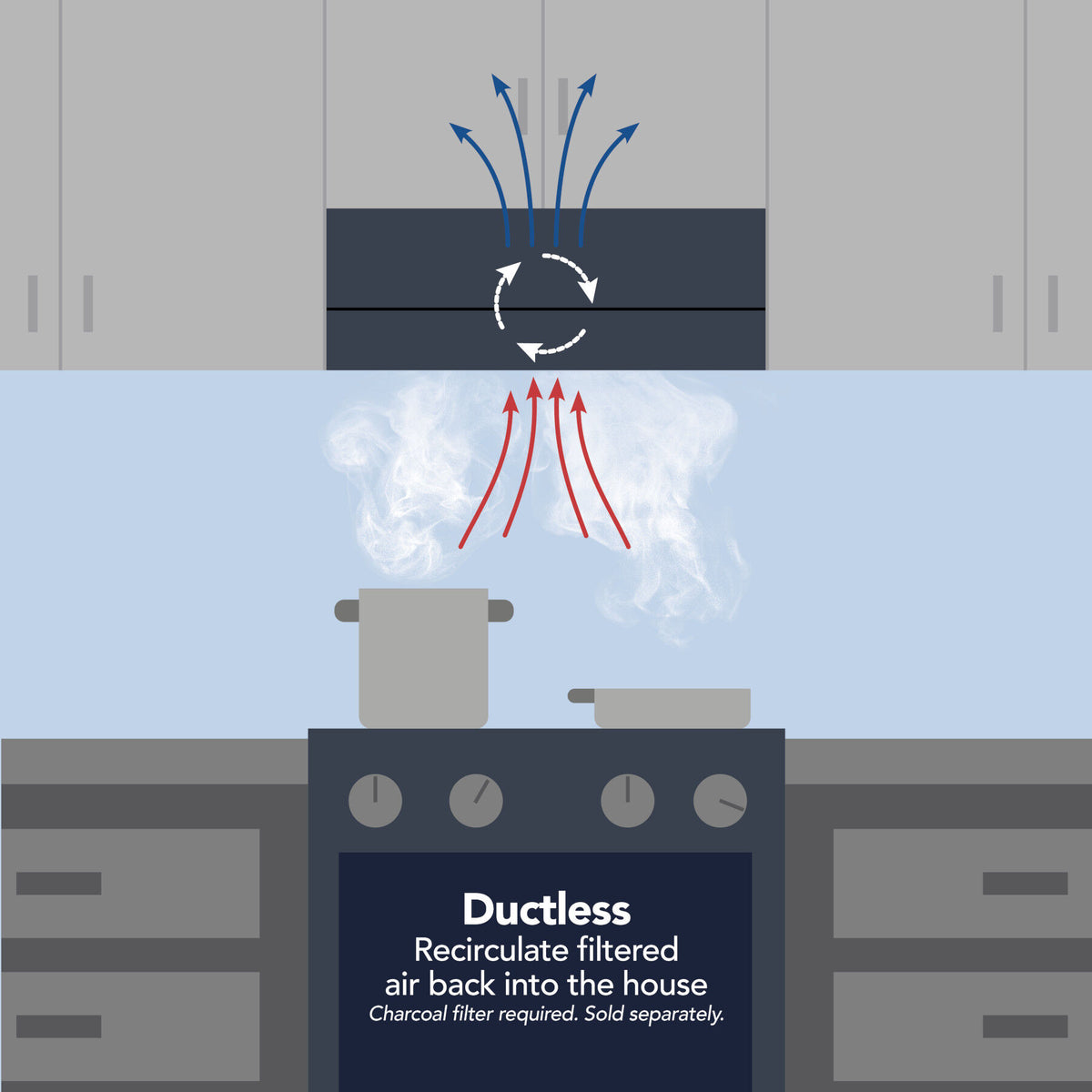

The non-vented system draws cooking air through an included combination grease and charcoal filter before recirculating the filtered air into the kitchen. Two fan speeds provide straightforward ventilation for everyday cooking.
Separate rocker switches control the fan and cooktop light, while the permanently lubricated motor is designed for dependable operation. The hood accepts an A19 LED bulb up to 75 watts.
Available from Coastal Appliance Co., this compact white range hood is a practical option for Hawaii apartments, condominiums, rental properties, small kitchens, and replacement projects.
Key Features
Ductless Installation – Operates without exterior ductwork, making it suitable for kitchens where traditional exhaust ventilation is unavailable.
Combination Grease and Charcoal Filter – The included replaceable filter captures airborne grease and helps reduce everyday cooking odors.
Two Fan Speeds – Provides adjustable recirculating airflow for different cooking needs.
Independent Rocker Controls – Separate switches offer simple control of the fan and cooktop lighting.
LED Bulb Compatible – Accepts one A19 LED bulb up to 75 watts; bulb is not included.
Permanently Lubricated Motor – Designed to provide dependable operation with minimal maintenance.
Mitered Sides and Hemmed Bottom – Creates a clean appearance while eliminating exposed sharp edges.
Hardwired or Corded Installation – Designed for hardwired installation or use with an optional power cord where permitted.
ADA-Compatible Installation – Can be configured for accessible operation using an appropriate remote wall-control kit.
UL Listed – Tested to applicable electrical and safety standards.
Made in the USA – Manufactured in the United States using domestic and imported components.
Specifications
| Specification | Details |
|---|---|
| Brand | Broan |
| Model | 412401 |
| Series | 41000 |
| Product Type | Ductless Under-Cabinet Range Hood |
| Installation Type | Under-Cabinet |
| Finish | White |
| Material | Steel |
| Ventilation Type | Non-ducted recirculating only |
| Exterior Duct Connection | None |
| Fan Speeds | 2 |

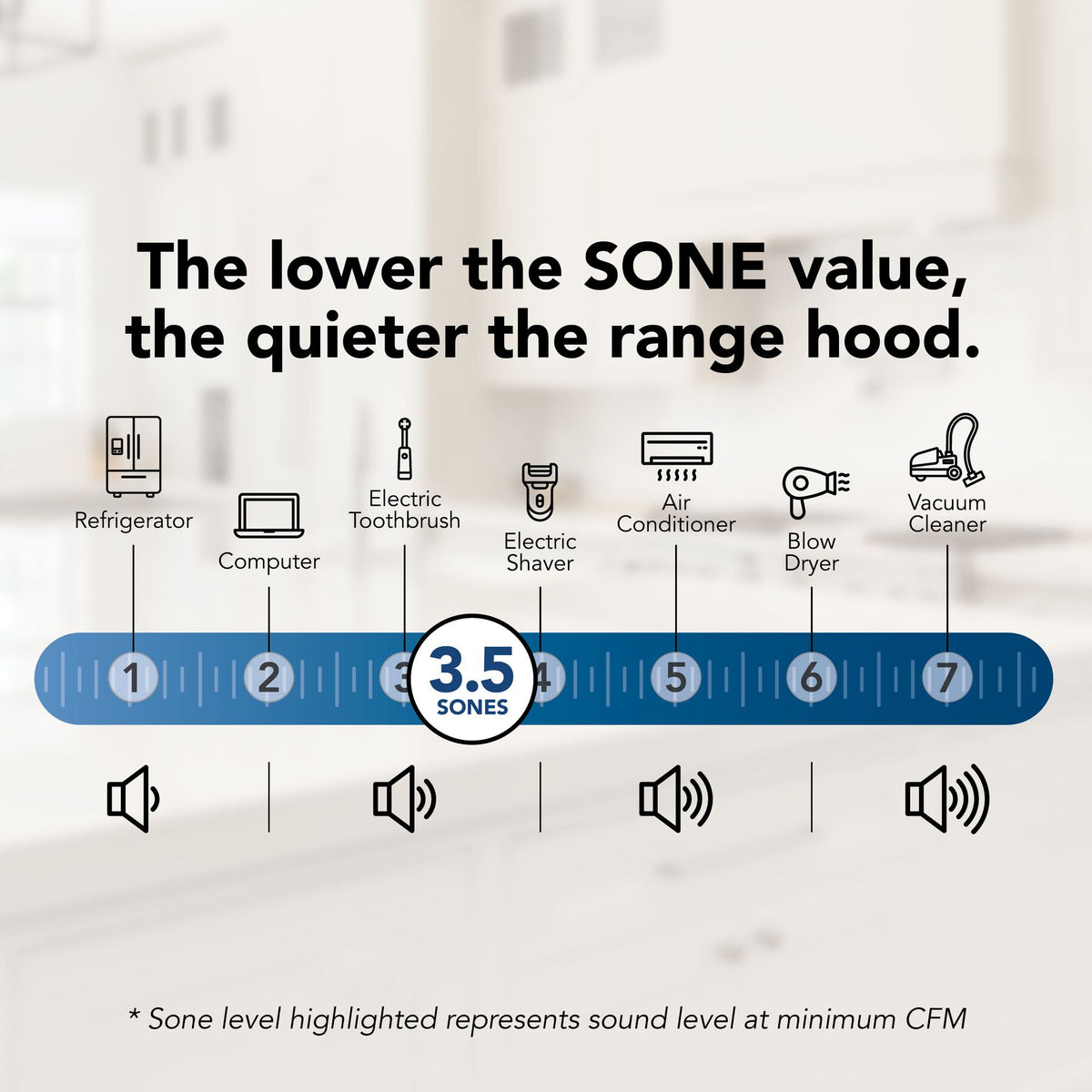

| Sound Level | 3.5 sones |
| Controls | Separate rocker switches |
| Lighting Type | A19 LED bulb compatible |
| Maximum Bulb Wattage | 75 watts |
| Light Bulb Included | No |
| Lighting Levels | 1 |
| Filter Type | Combination grease and charcoal filter |
| Ductless Filter Included | Yes |
| Replacement Filter Available | Yes |
| Damper Included | Not applicable |
| Heat Sentry™ | No |
| Wi-Fi Connectivity | No |
| Remote Operation | Compatible with an appropriate wall-control installation |
| Built-In Timer | No |
| ENERGY STAR® Certified | No |
| HVI Certified | No |
| UL Listed | Yes |
| ADA Compliant | Compatible with an appropriate remote wall-control kit |
| Voltage | 120V |
| Rated Amperage | 2A |
| Rated Wattage | 240 watts |
| Electrical Connection | Hardwired; optional power cord available |
| Outdoor Approved | No |
| Country of Manufacture | United States |
| Manufacturer Warranty | 1-year limited warranty |
Dimensions
| Measurement | Size |
|---|---|
| Nominal Width | 24 inches |
| Actual Width | Approximately 23 7/8 inches |
| Overall Height | 6 inches |
| Overall Depth | 17 1/2 inches |
| Recommended Mounting Height | 18–24 inches above the cooking surface |
| Duct Opening | Not applicable |
| Installation Location | Indoor use only |
Optional Accessories
Replacement combination grease and charcoal filter
Power cord kit
Remote wall-control kit for an ADA-compatible installation
A19 LED cooktop light bulb
Incandescent light guard, if an incandescent bulb is used
Installation Considerations
The Broan 412401 is designed exclusively for non-ducted recirculating operation and does not connect to exterior ductwork.
Cooking air passes through the combination grease and charcoal filter before returning to the kitchen. The filter requires periodic replacement to maintain odor-reduction performance.
The hood is designed for hardwired electrical installation. An optional power cord can be used where permitted by the manufacturer and applicable electrical codes.
Install the hood at the height specified in the manufacturer instructions and maintain all clearances required by the cooking appliance.
Professional installation is recommended to confirm cabinet dimensions, electrical requirements, mounting support, and compatibility with the cooking surface.
