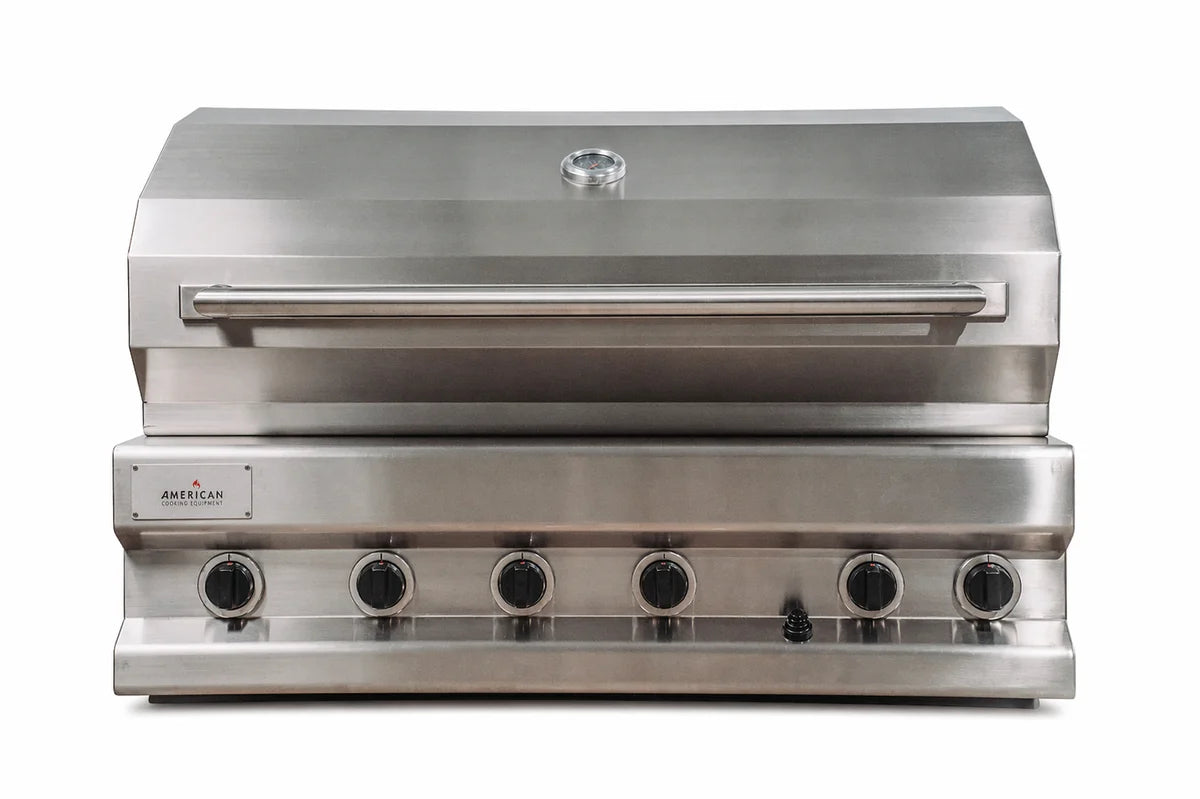

American Cooking Equipment THREE ONE SIX 316L 50" Marine-Grade 10-Burner Built-In Grill

The American Cooking Equipment THREE ONE SIX 316L 10-Burner Built-In Grill delivers professional-scale outdoor cooking capacity in an exceptionally durable, marine-grade stainless-steel design.

Constructed entirely from low-carbon 316L stainless steel, this premium grill is engineered to resist corrosion, heat and demanding outdoor conditions. Ten hand-formed burners provide powerful heat and multiple independently controlled cooking zones for large meals and outdoor entertaining.

The expansive cooking surface provides up to 1,050 square inches of grilling space. Solid 3/8" stainless-steel cooking grids, a fully welded firebox and precision burner alignment promote consistent heat distribution and long-term performance.

Designed for built-in installation, this grill integrates into custom outdoor kitchens, masonry islands and modular outdoor cabinetry. Its marine-grade construction is especially well suited for Hawaii’s humid, salt-air environment.

Gas connections must be completed by a properly licensed professional in accordance with the manufacturer’s instructions and applicable Hawaii codes. Select the correct natural-gas or propane model when ordering; do not assume field conversion is available.

Key Features

Marine-Grade 316L Stainless Steel – The grill body, hood, control panel, firebox, burners and cooking components are constructed for superior corrosion resistance.

Ten High-Output Burners – Ten hand-formed burners deliver more than 14,000 BTUs each for powerful cooking and flexible heat-zone control.

Up to 174,000 BTUs – Available total cooking output with the back-burner option supports high-temperature searing, roasting and large-scale entertaining.

Up to 1,050 Sq. In. of Cooking Space – Provides expansive capacity for preparing multiple entrées and side dishes simultaneously.

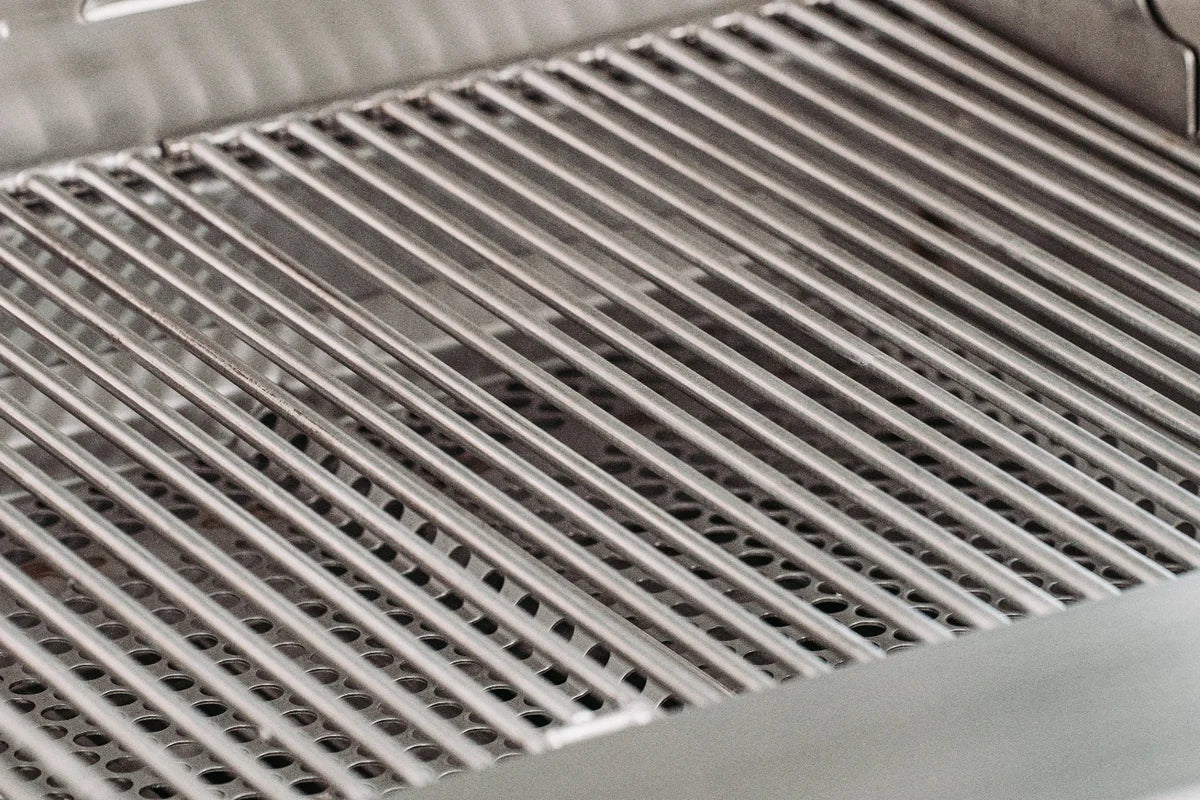

Solid Stainless-Steel Cooking Grids – Heavy-duty 3/8" solid 316 stainless-steel grids provide excellent heat retention and lasting durability.

Precision Burner Alignment – Edge-to-edge burner positioning promotes consistent heat distribution across the cooking surface.

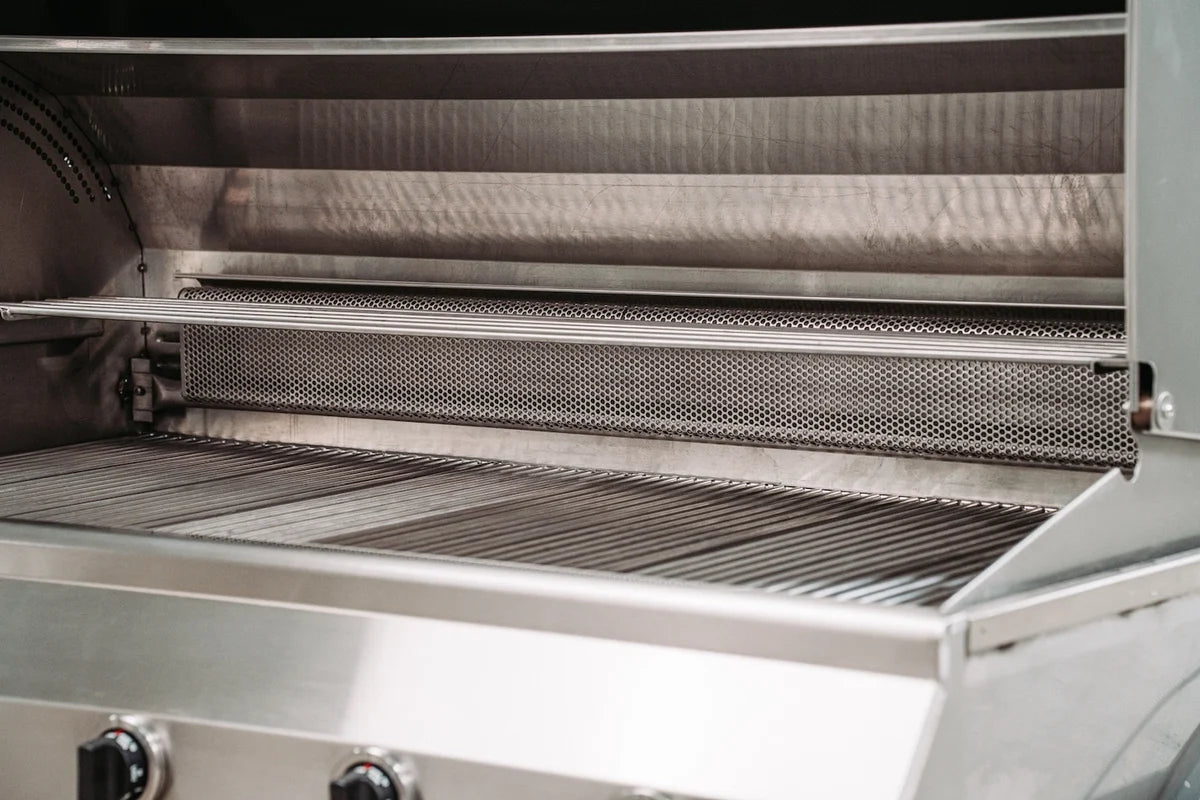

Adjustable Warming Rack – Adds secondary cooking and holding space without reducing the primary grilling area.

Fully Welded Construction – The firebox and structural frame are welded for strength, stability and long-term outdoor use.

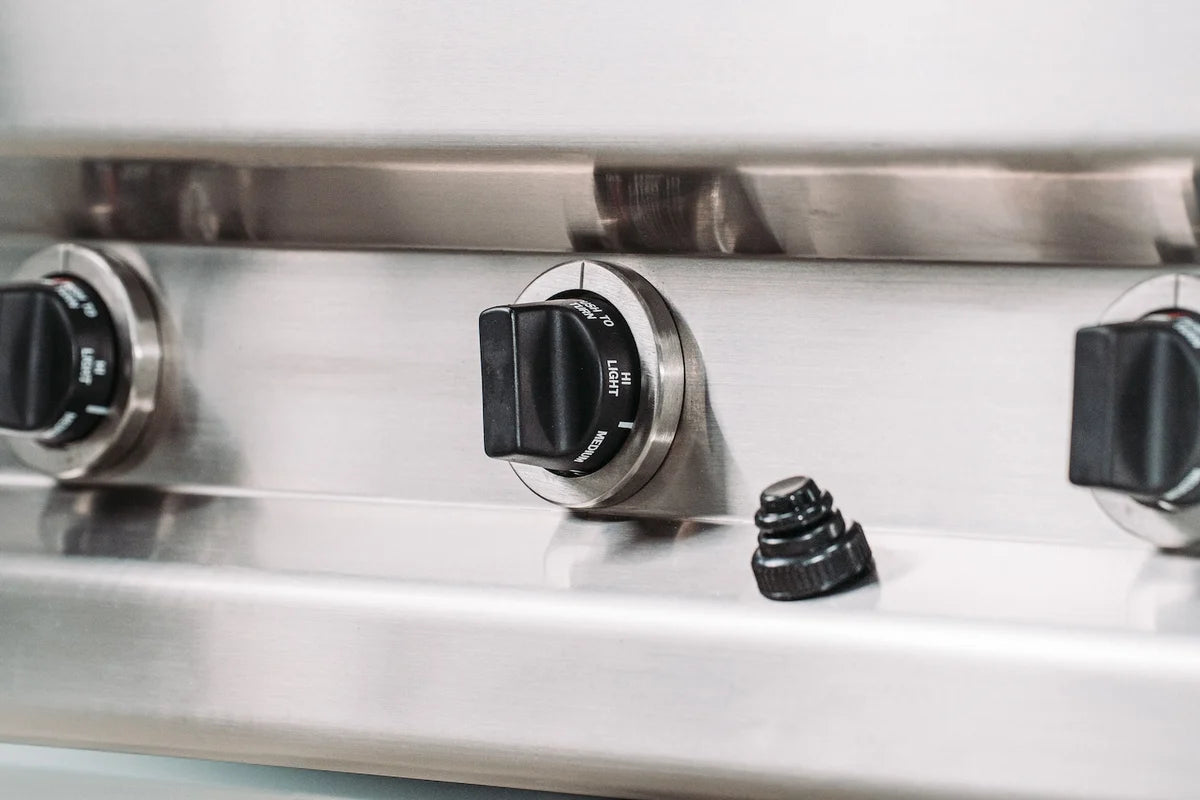

Battery-Powered Ignition – An AAA battery-powered spark generator provides convenient ignition without requiring a standard electrical connection.

Built-In Installation – Designed for integration into a properly constructed outdoor kitchen island or masonry enclosure.

Natural Gas or Propane Options – Available as separate factory-configured natural-gas and propane models.

Made in the USA – Handcrafted and inspected in the United States.

Protective Cover Included – Includes a fitted cover to help protect the grill when it is not in use.

Limited Lifetime Warranty – Backed by American Cooking Equipment’s limited lifetime warranty.

Specifications

Specification	Details
Brand	American Cooking Equipment
Series	THREE ONE SIX Signature Series
Product Type	Outdoor gas grill
Installation Type	Built-in
Nominal Width	50 in.
Natural Gas Model	316.50.22
Propane Model	316.50.23
Material	Marine-grade 316L stainless steel
Number of Main Burners	10
Burner Output	More than 14,000 BTUs per burner
Maximum Cooking Output	Up to 174,000 BTUs with back-burner option
Primary Cooking Area	Up to 1,050 sq. in.
Cooking Grid Material	3/8 in. solid 316 stainless steel
Warming Rack	Adjustable 316L stainless steel
Ignition System	AAA battery-powered spark generator
Heat Distribution	Precision edge-to-edge burner alignment
Firebox Construction	Fully welded 316L stainless steel
Frame Construction	Fully welded 316L stainless steel
Fuel Type	Natural gas or propane; factory-configured model selection required
Gas Connection	Dedicated gas supply and accessible manual shutoff required
Electrical Requirement	No standard electrical connection required for battery ignition
Optional Lighting	External lighting available
Wi-Fi Connectivity	No
ADA Compliant	Not specified
ENERGY STAR Certified	Not applicable
Installation Location	Outdoor use only
Country of Manufacture	United States
Protective Cover	Included
Warranty	Limited lifetime warranty

Dimensions

Measurement	Size
Nominal Grill Width	50 in.
Overall Width	Confirm with current manufacturer installation drawing
Overall Height	Confirm with current manufacturer installation drawing
Overall Depth	Confirm with current manufacturer installation drawing
Primary Cooking Area	Up to 1,050 sq. in.
Cutout Dimensions	Confirm with current manufacturer installation drawing before fabrication
Combustible Clearances	Follow current manufacturer instructions and applicable local codes
Utility Clearance	Provide accessible space for the gas connection, shutoff valve and service
