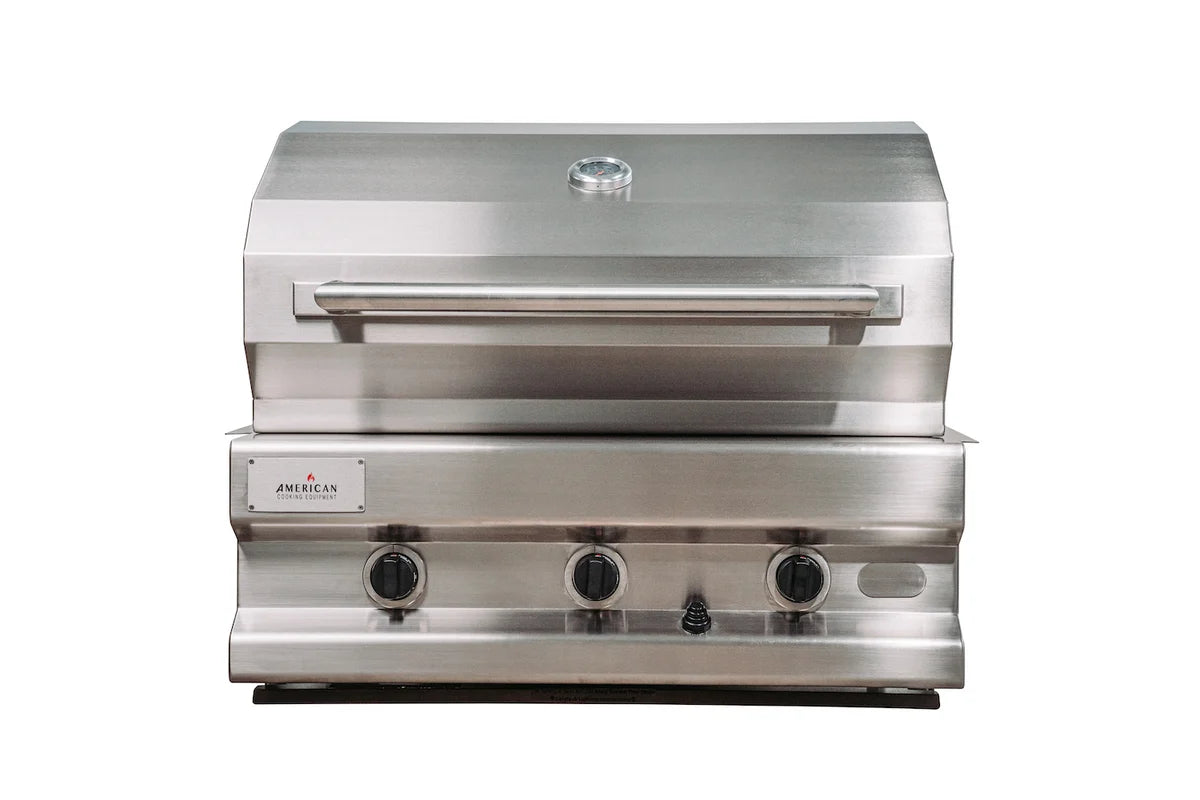

American Cooking Equipment THREE ONE SIX 316L 32" Marine-Grade 6-Burner Built-In Grill
American Cooking Equipment THREE ONE SIX 316L 32" Marine-Grade 6-Burner Built-In Grill
The American Cooking Equipment THREE ONE SIX 316L 6-Burner Built-In Grill delivers 104,000 BTUs of professional outdoor cooking power in an exceptionally durable, marine-grade stainless-steel design.
Constructed from low-carbon 316L stainless steel inside and out, this premium grill is engineered to resist corrosion, heat and demanding outdoor conditions. Six hand-formed burners, solid stainless-steel cooking grids and precision burner alignment provide powerful, consistent heat across the cooking surface.
The 30" wide by 22" deep cooking surface provides approximately 660 square inches of primary grilling space. A fully welded firebox and frame, adjustable warming rack and battery-powered ignition support dependable everyday cooking and outdoor entertaining.
Designed for built-in installation, this grill integrates into custom outdoor kitchens, masonry islands and modular outdoor cabinetry. Its marine-grade construction is especially well suited for Hawaii’s humid, salt-air environment. Coastal Appliance Co. can assist with site verification, delivery and professional installation.
Key Features
Marine-Grade 316L Stainless Steel – The grill body, hood, control panel, firebox, burners and cooking components are constructed for superior corrosion resistance.
Six High-Output Burners – Six burners deliver more than 14,000 BTUs each for powerful grilling and precise heat-zone control.
104,000 BTU Total Output – Provides the heat capacity needed for searing, roasting and preparing multiple foods simultaneously.
Spacious Cooking Surface – The 30" wide by 22" deep primary cooking area provides approximately 660 square inches of grilling space.

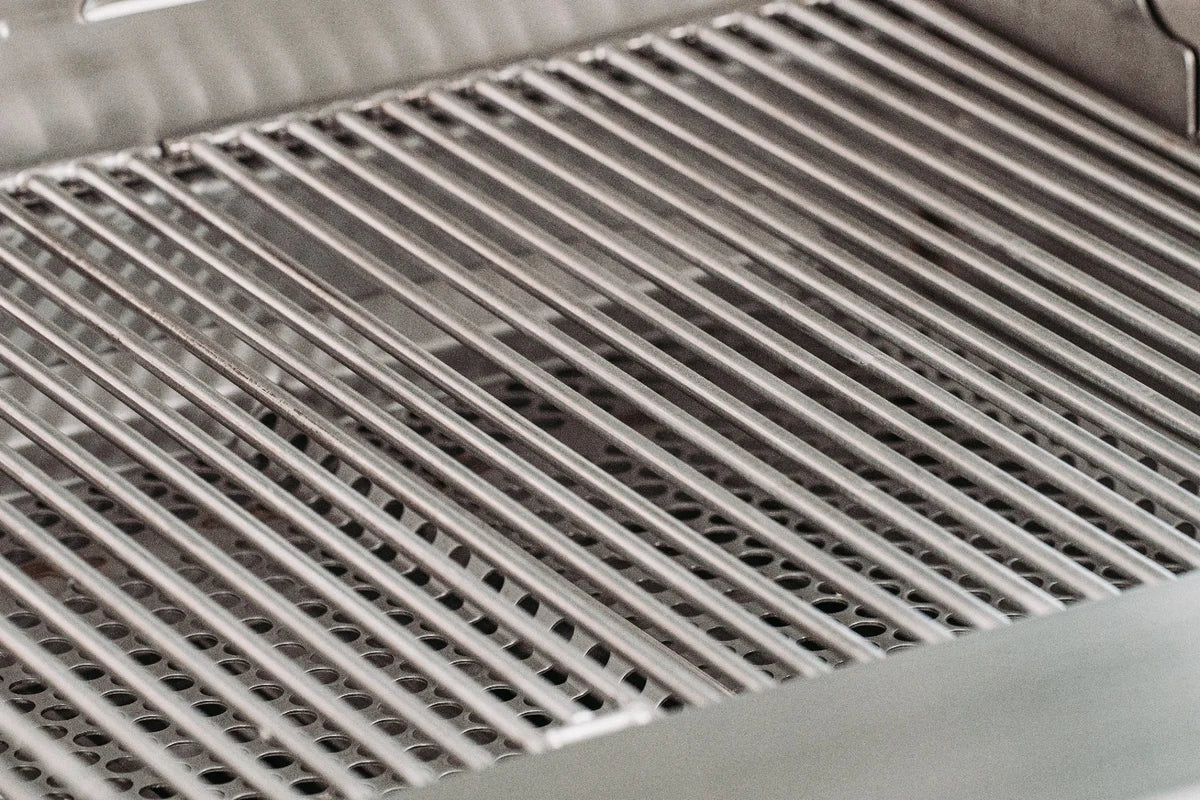

Solid Stainless-Steel Cooking Grids – Heavy-duty 3/8" solid 316 stainless-steel grids provide excellent heat retention and lasting durability.
Precision Burner Alignment – Edge-to-edge burner positioning promotes consistent heat distribution across the cooking surface.

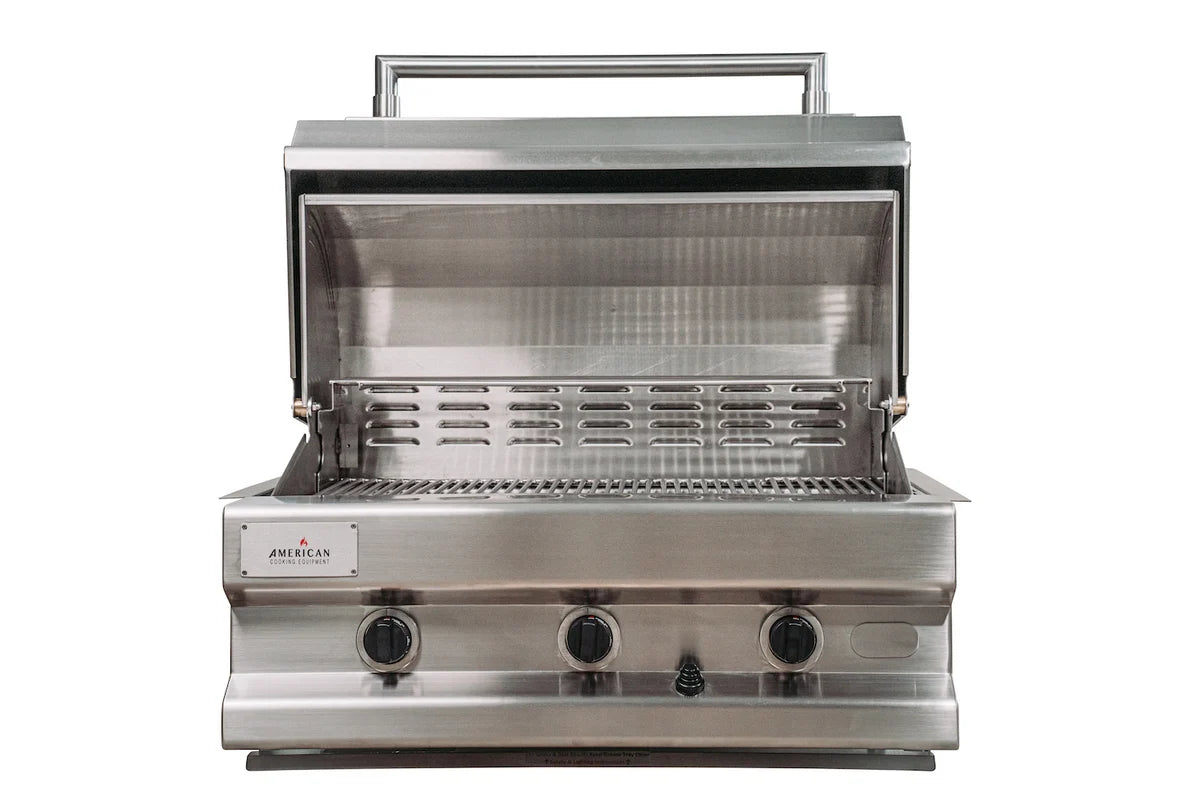

Adjustable Warming Rack – Adds secondary cooking and holding space without reducing the primary grilling area.
Fully Welded Construction – The firebox and structural frame are welded for strength, stability and long-term outdoor use.

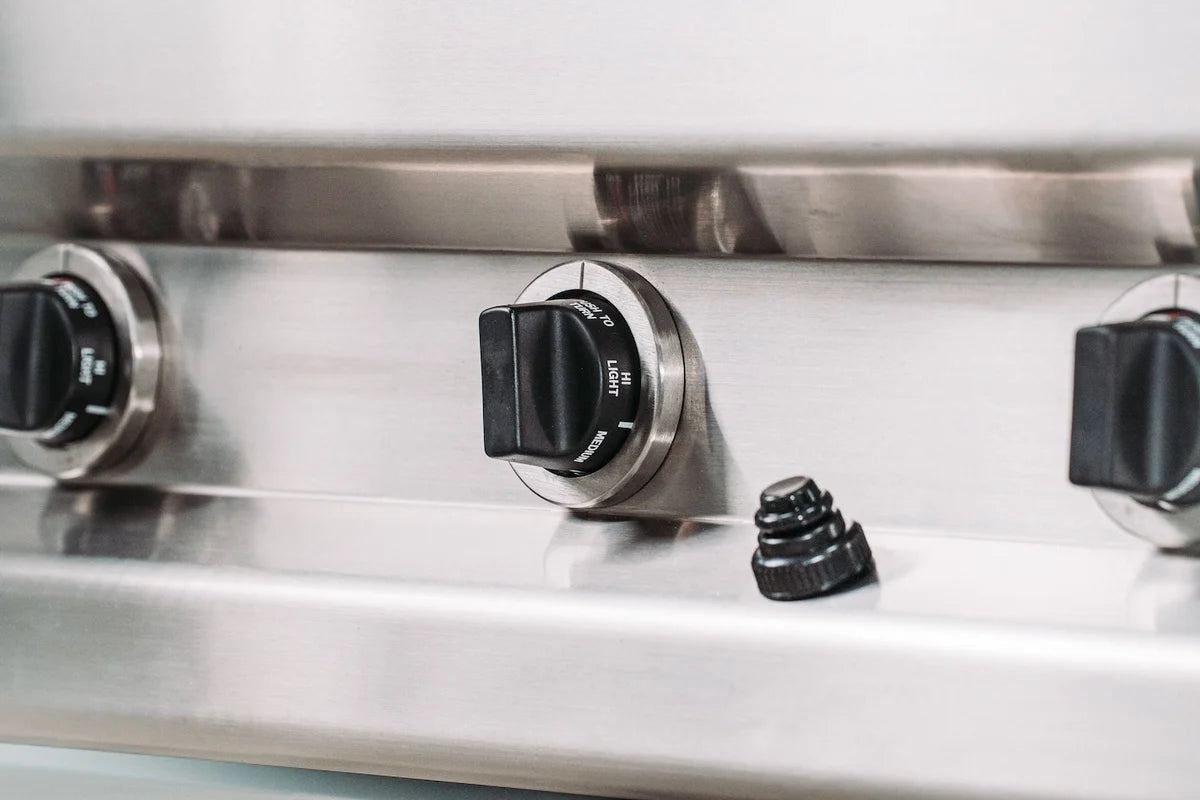

Battery-Powered Ignition – An AAA battery-powered spark generator provides convenient ignition without requiring a standard electrical connection.
Built-In Installation – Designed for integration into a properly constructed outdoor kitchen island or masonry enclosure.
Natural Gas or Propane Options – Available as separate factory-configured natural-gas and propane models.
Made in the USA – Handcrafted and inspected in the United States.
Protective Cover Included – Includes a fitted cover to help protect the grill when it is not in use.
Limited Lifetime Warranty – Backed by American Cooking Equipment’s limited lifetime warranty.
Specifications
| Specification | Details |
|---|---|
| Brand | American Cooking Equipment |
| Series | THREE ONE SIX Signature Series |
| Product Type | Outdoor gas grill |
| Installation Type | Built-in |
| Nominal Width | 32 in. |
| Natural Gas Model | 316.32.22 |
| Propane Model | 316.32.23 |
| Material | Marine-grade 316L stainless steel |
| Number of Main Burners | 6 |
| Burner Output | More than 14,000 BTUs per burner |
| Total Cooking Output | 104,000 BTUs |
| Primary Cooking Area | Approximately 660 sq. in. |
| Cooking Grid Material | 3/8 in. solid 316 stainless steel |
| Warming Rack | Adjustable 316L stainless steel |
| Ignition System | AAA battery-powered spark generator |
| Heat Distribution | Precision edge-to-edge burner alignment |
| Firebox Construction | Fully welded 316L stainless steel |
| Frame Construction | Fully welded 316L stainless steel |
| Fuel Type | Natural gas or propane; factory-configured model selection required |
| Gas Connection | Dedicated gas supply and accessible manual shutoff required |
| Electrical Requirement | No standard electrical connection required for battery ignition |
| Optional Lighting | External lighting available |
| Wi-Fi Connectivity | No |
| ADA Compliant | Not specified |
| ENERGY STAR Certified | Not applicable |
| Installation Location | Outdoor use only |
| Country of Manufacture | United States |
| Protective Cover | Included |
| Warranty | Limited lifetime warranty |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | Approximately 32 in. |
| Overall Height | Approximately 28 in. |
| Overall Depth | Approximately 25 3/4 in. |
| Cooking-Surface Width | 30 in. |
| Cooking-Surface Depth | 22 in. |
| Approximate Primary Cooking Area | 660 sq. in. |
| Cutout Dimensions | Confirm with the current manufacturer installation drawing before fabrication |
| Combustible Clearances | Follow the current manufacturer instructions and applicable local codes |
| Utility Clearance | Provide accessible space for the gas connection, shutoff valve and service |
Optional Accessories and Installation
External grill lighting
Rotisserie cooking components
Marine-grade outdoor kitchen cabinets and storage
Side-burner module
Outdoor griddle
Approved insulated enclosure components when required
Natural-gas connection components
Propane regulator and hose components
Additional grilling tools and cooking accessories
A Coastal Appliance Co. site visit is recommended before ordering or fabricating the outdoor kitchen. The island must provide proper structural support, ventilation, drainage and service access. Obtain the current manufacturer installation drawing and verify the received appliance before cutting stone, masonry or cabinetry.
Gas connections must be completed by a properly licensed professional in accordance with the manufacturer’s instructions and applicable Hawaii codes. Select the correct natural-gas or propane model when ordering; do not assume field conversion is available.
