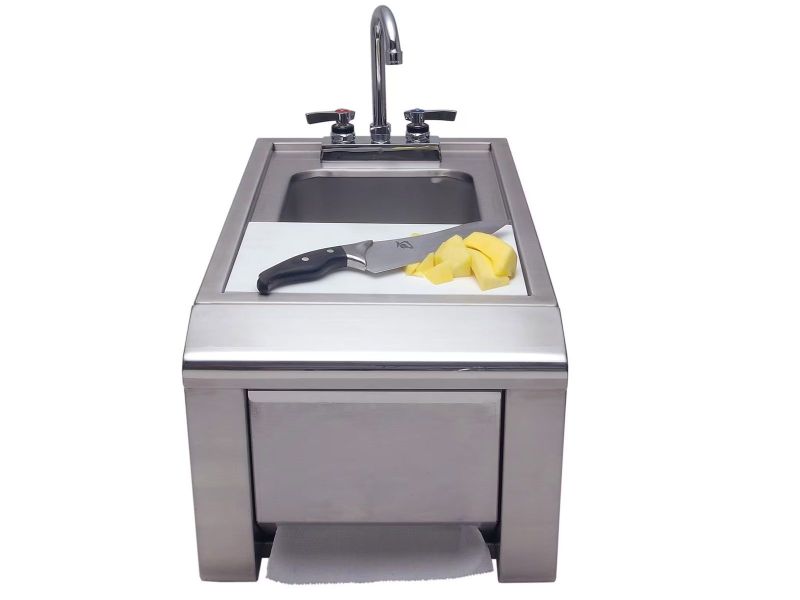

Alfresco ASK-T 14" Outdoor Prep and Hand-Wash Sink
Alfresco ASK-T 14" Outdoor Prep and Hand-Wash Sink
The Alfresco ASK-T creates a compact outdoor station for food preparation, hand washing, and cleanup.
Its commercial-grade stainless steel construction is designed for outdoor-kitchen installations. An included hot-and-cold-water faucet provides convenient access to water while grilling, preparing ingredients, or entertaining.
A removable cutting board extends the available preparation surface, while the integrated C-fold paper-towel dispenser keeps towels conveniently within reach. Its narrow 14-inch width makes it well suited for outdoor kitchens where counter space is limited.
The ASK-T requires a built-in installation with hot and cold water supplies and a drain connection. Contact Coastal Appliance Co. for product availability and outdoor-kitchen planning throughout Hawaii.
Key Features
Compact 14-Inch Design – Adds preparation and hand-washing functionality without requiring a large section of countertop.
Hot and Cold Faucet – Provides dual-temperature water for rinsing ingredients, washing hands, and outdoor cleanup.
Removable Cutting Board – Creates a convenient preparation surface directly over the sink area.
Integrated Paper-Towel Dispenser – Holds C-fold paper towels for quick access during food preparation and cleanup.
Stainless Steel Construction – Durable construction is designed to coordinate with Alfresco outdoor-kitchen products.
Built-In Installation – Integrates directly into an outdoor countertop for a clean, professional appearance.
Specifications
| Specification | Details |
|---|---|
| Brand | Alfresco |
| Model | ASK-T |
| Product Type | Outdoor prep and hand-wash sink |
| Installation Type | Built-in |
| Nominal Width | 14 inches |
| Construction | Stainless steel |
| Finish | Stainless steel |
| Faucet | Hot and cold water faucet included |
| Cutting Board | Removable |
| Towel Storage | Integrated C-fold paper-towel dispenser |
| Water Supply | Hot and cold connections required |
| Water Connections | Two 1/2-inch NPSM or 3/8-inch compression connections |
| Drain Connection | 1-inch NPSM |
| Electrical Requirements | None |
| Outdoor Approved | Yes |
| ADA Compliant | Not specified |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 14" |
| Overall Depth | 26 5/8" |
| Overall Height Including Faucet | Approximately 17 3/16" |
| Sink Body Depth Below Counter | 8 1/8" |
| Cutout Width | 13 1/4" |
| Cutout Depth | 23" |
| Minimum Interior Cabinet Clearance | 10 1/4" |
| Bullnose Notch | 1/2" |
| Minimum Countertop Setback | 3 5/8" |
Installation Requirements
The ASK-T requires a built-in countertop opening with adequate cabinet space beneath the sink. Hot and cold water supplies and an approved drain must be provided inside the cabinet.
Final countertop dimensions, bullnose details, plumbing connections, drainage, and clearances should be verified using Alfresco’s installation drawing. A licensed plumber should complete the water and drain connections in accordance with local codes.
Coastal Appliance Co. recommends confirming the cabinet construction, countertop material, plumbing access, and drainage plan before the countertop opening is fabricated.
