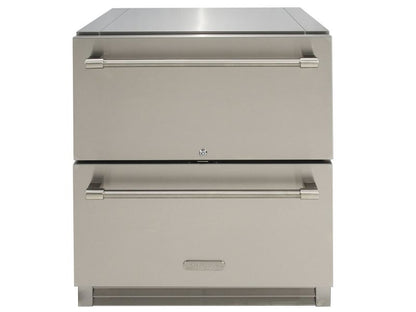

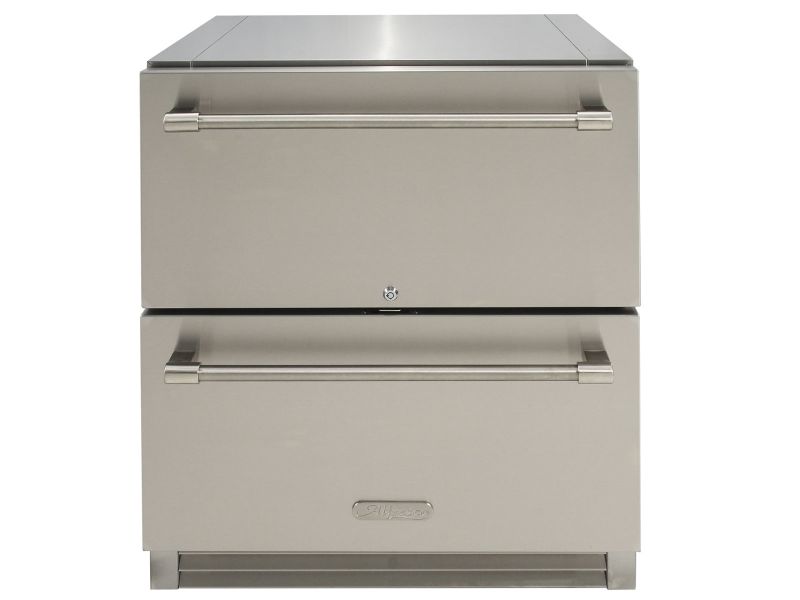

Alfresco AR-28D 28" PolarCore™ Two-Drawer Outdoor Refrigerator
Alfresco AR-28D 28" PolarCore™ Two-Drawer Outdoor Refrigerator
The Alfresco AR-28D is a 28-inch PolarCore™ outdoor refrigerator offering 6.77 cu. ft. of organized storage across two smooth-gliding drawers.
Its variable-speed compressor, commercial fan-driven evaporator and Flash Recovery System provide powerful cooling with an adjustable temperature range from 33°F to 50°F. Drawer-activated multicolor LED lighting improves visibility while adding a distinctive look to the outdoor kitchen.
Constructed from 304 stainless steel inside and out, the AR-28D features front-bottom ventilation for built-in undercounter or freestanding installation. Automatic defrost, digital controls and self-closing drawers make everyday operation convenient.
Available in stainless steel, standard colors and custom RAL colors, this outdoor refrigerator can be coordinated with a customized Alfresco kitchen. Coastal Appliance Co. provides professional product guidance and outdoor-kitchen planning throughout Hawaii.
Key Features
6.77 Cu. Ft. Capacity – Provides spacious refrigerated storage for beverages, ingredients and outdoor-entertaining essentials.

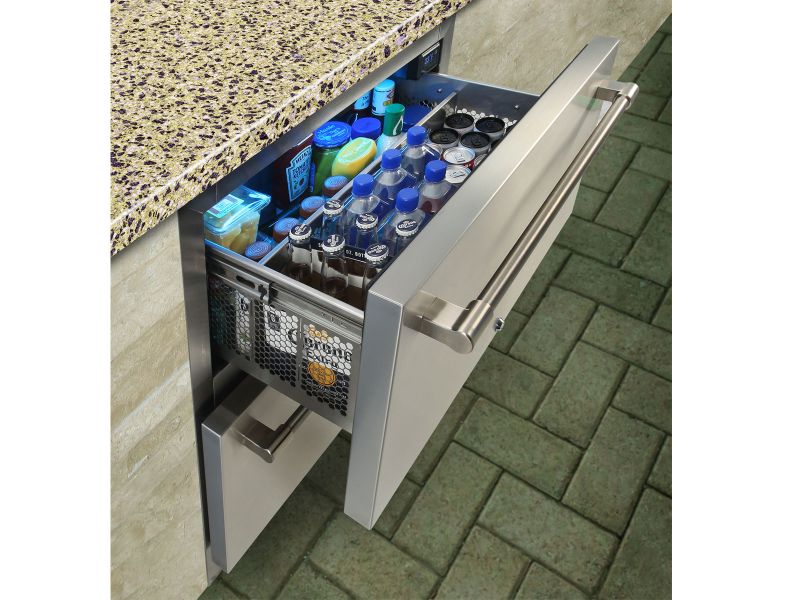

Two-Drawer Configuration – Separates food and beverages while keeping stored items easy to access.
Self-Closing Drawers – Smooth-gliding drawer mechanisms close securely and conveniently.
PolarCore™ Cooling – Delivers professional-grade temperature management for outdoor installations.
Flash Recovery System – Quickly restores the selected temperature after a drawer has been opened.
Variable-Speed Compressor – Provides 780–1,800 BTUH of cooling performance based on operating conditions.
Commercial Forced-Air Cooling – A fan-driven fin evaporator circulates cold air throughout the refrigerator.
Digital Temperature Controls – Lighted display provides convenient temperature adjustment from 33°F to 50°F.

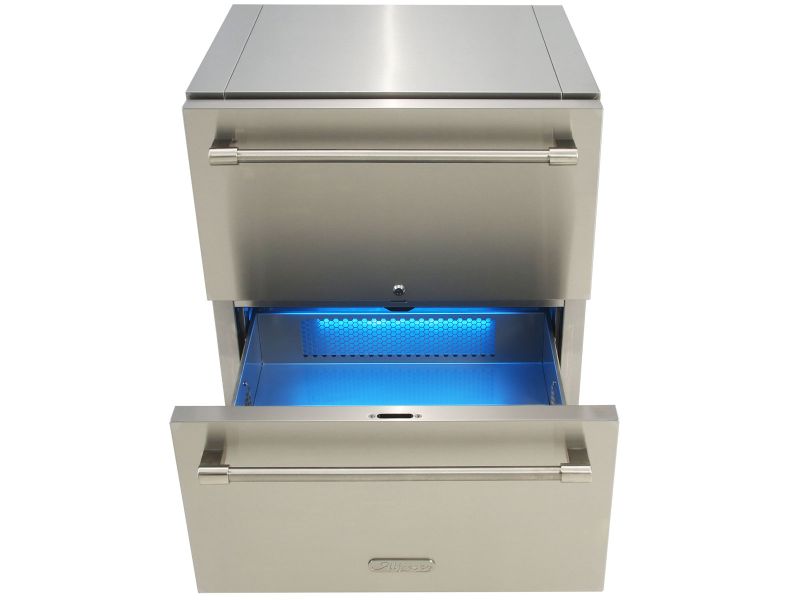

Multicolor LED Lighting – Drawer-activated lighting offers adjustable colors and intensity.
304 Stainless-Steel Construction – Stainless-steel interior and exterior provide durability for outdoor use.
Front-Bottom Ventilation – Supports built-in undercounter and freestanding installation.
Automatic Defrost – Reduces routine maintenance by controlling frost accumulation automatically.
Drawer Lock – Included lock helps secure refrigerated contents.
Custom Finish Options – Available in stainless steel, 10 standard colors or a selection of custom RAL colors.
Specifications
| Specification | Details |
|---|---|
| Brand | Alfresco |
| Model | AR-28D |
| Series | PolarCore™ |
| Product Type | Outdoor two-drawer refrigerator |
| Installation Type | Built-in undercounter or freestanding |
| Nominal Width | 28 inches |
| Total Capacity | 6.77 cu. ft. |
| Number of Drawers | Two |
| Temperature Range | 33°F to 50°F |
| Control Type | Digital control with lighted display |
| Cooling System | Commercial fan-driven fin evaporator |
| Compressor | Variable speed, 780–1,800 BTUH |
| Flash Recovery System | Yes |
| Defrost Type | Automatic |
| Interior Lighting | Drawer-activated multicolor and adjustable-intensity LED |
| Drawer Operation | Smooth-gliding and self-closing |
| Construction | 304 stainless steel inside and out |
| Ventilation | Front-bottom ventilation |
| Drawer Lock | Included |
| Refrigerant | R-290 |
| Voltage | 115 VAC |
| Running Current | 2.1 amps |
| Minimum Circuit Ampacity | 2.5 amps |
| Maximum Overcurrent Protection | 15 amps |
| Power Cord | 8-foot cord with NEMA 5-15 plug |
| Grounded Receptacle | Required |
| GFCI Protection | Recommended |
| Outdoor Approved | Yes |
| Certification | ETL certified |
| ADA Compliant | No |
| Panel-Ready Option | Available as a separate configuration |
| Finish Options | Stainless steel, standard colors and custom RAL colors |
Dimensions
| Measurement | Size |
|---|---|
| Overall Width | 27 7/8 inches |
| Overall Height | 34 1/4 inches |
| Overall Depth Including Handle | 26 5/16 inches |
| Cabinet Body Depth | 21 3/4 inches |
| Recommended Cutout Width | 28 1/4 inches |
| Recommended Cutout Height | 34 1/2 inches |
| Recommended Cutout Depth | 21 3/4 inches minimum |
| Minimum Body Clearance Above Floor | 1/4 inch |
Installation and Accessories
Front-bottom ventilation allows the refrigerator to be installed beneath an outdoor counter without requiring rear ventilation. The enclosure should be built to the manufacturer’s specified opening dimensions with sufficient space for the drawers to extend fully.
Provide a grounded 115-volt receptacle protected by a 15-amp circuit. GFCI protection is recommended for outdoor installations. Do not use an extension cord, and keep the supplied plug accessible after installation.
A matching drawer divider is available separately. Panel-ready and custom-color configurations should be specified when ordering and coordinated with the surrounding cabinetry before fabrication.
