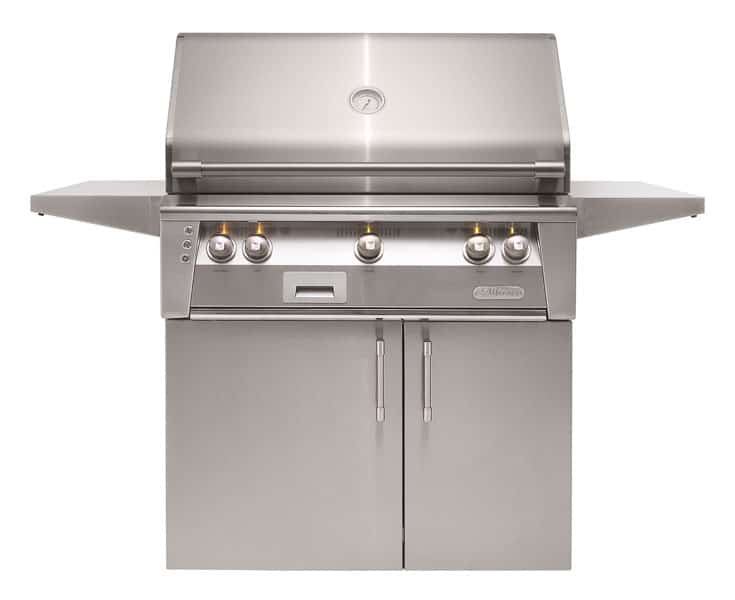

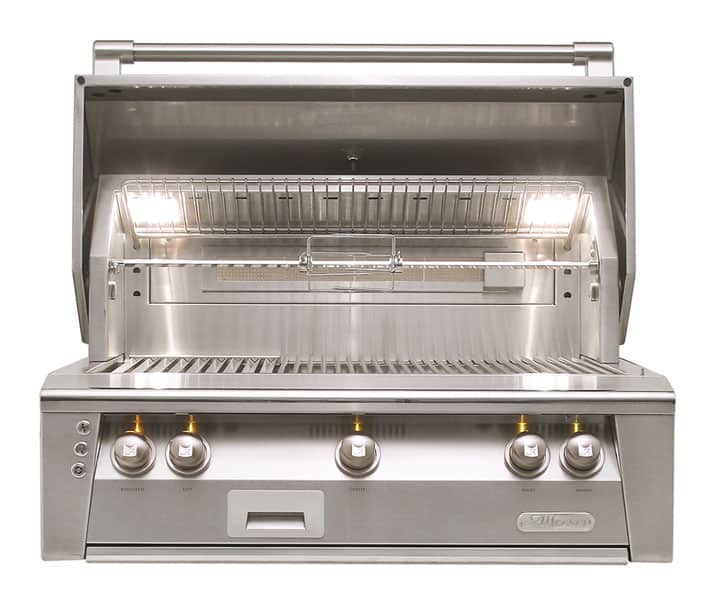

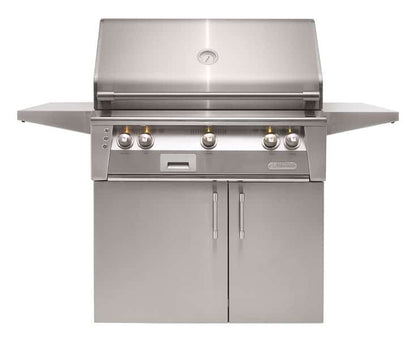

Alfresco ALXE-36 36" Luxury Built-In Gas Grill

The Alfresco ALXE-36 is a 36-inch luxury built-in gas grill that combines powerful heat, integrated smoking and professional rotisserie cooking in a versatile midsize design.

Three stainless-steel Accufire™ main burners deliver intense, evenly distributed heat across 660 square inches of grilling space. The Signature Taste™ smoking system uses a dedicated burner and wood-chunk drawer to add authentic smoke flavor to meats, seafood and vegetables.

An integrated Mega-Drive™ rotisserie system with infrared burners, a three-position warming rack and dual high-intensity halogen lights expand its outdoor cooking capabilities. Sealed push-button ignition provides dependable operation from a dedicated 115-volt electrical connection.

Built from commercial-grade 304 stainless steel with hand-welded seams, the ALXE-36 is designed for permanent installation in a custom outdoor kitchen. Natural-gas, propane, SearZone™ and custom-color configurations are available.

Key Features

Three Accufire™ Main Burners – High-performance stainless-steel burners provide powerful heat and consistent cooking across the grilling surface.

660 Sq. In. Grilling Area – Offers generous capacity for family meals and outdoor entertaining.

Mega-Drive™ Rotisserie System – Integrated infrared burners provide intense, controlled heat for slow-roasting meats.

Signature Taste™ Smoking System – A dedicated burner and pull-out wood-chunk drawer add authentic smoke flavor.

Three-Position Warming Rack – Adjusts for holding food, secondary cooking or storage away from the rotisserie area.

Dual Halogen Work Lights – High-intensity integrated lighting illuminates the cooking surface for nighttime grilling.

Sealed Push-Button Ignition – Uses a protected 115-volt AC power source for convenient and dependable ignition.

Commercial-Grade Stainless Steel – Constructed from 304, 18-8 stainless steel with heli-arc hand-welded seams.

Optional SearZone™ Configuration – A separate configuration replaces one standard burner with an infrared searing burner capable of high-temperature cooking.

Natural Gas or Propane Options – Available in factory-configured natural-gas and liquid-propane versions.

Custom Color Options – Select from stainless steel, standard colors or an extensive range of RAL Classic finishes.

Made in the USA – Designed and manufactured in the United States.

Specifications

Specification	Details
Brand	Alfresco
Series	ALXE Luxury
Model	ALXE-36
Natural Gas Model	ALXE-36-NG
Liquid Propane Model	ALXE-36-LP
Product Type	Outdoor gas grill
Installation Type	Built-in
Nominal Width	36 in.
Construction	Commercial-grade 304, 18-8 stainless steel
Main Burners	3 stainless-steel Accufire™ burners
Manufacturer-Published Total Input	148,000 BTUH on January 2026 specification sheet
Primary Grilling Area	660 sq. in.
Rotisserie	Integrated Mega-Drive™ system with infrared burners
Smoking System	Signature Taste™ system with dedicated burner and wood-chunk drawer
Warming Rack	Three-position
Lighting	Dual integrated high-intensity halogen work lights
Ignition	Sealed push-button electronic ignition
Fuel Options	Natural gas or liquid propane
Natural Gas Pressure	5 in. water column
Propane Pressure	10 in. water column
Natural Gas Connection	1/2 in. NPT
Propane Connection	3/8 in. ODF
Electrical Requirement	115 VAC, 1.44A, 60Hz
Power Cord	8 ft. NEMA 5-15 plug
Wi-Fi Connectivity	No
ADA Compliant	Not specified
ENERGY STAR Certified	Not applicable
Installation Location	Outdoor use only
Country of Manufacture	United States
Warranty	Alfresco limited warranty; coverage varies by component

Dimensions

Measurement	Size
Overall Width	Approximately 36 in.
Overall Height	Approximately 26 in.
Overall Depth	Approximately 26 13/16 in.
Cutout Width	34 1/2 in.
Cutout Height	10 1/4 in.
Cutout Depth	23 in.
Countertop Notch	7/8 in.
Primary Grilling Area	660 sq. in.
Minimum Countertop Edge	1 in.
Enclosure Requirement	Published cutout applies to noncombustible construction
Combustible Enclosure	Approved Alfresco insulated jacket required
Utility Clearance	Provide accessible gas, electrical and service connections

Optional Accessories and Installation

• Infrared SearZone™ configuration

• Insulated jacket

• Standard grill cart

• Solid-fuel insert

• Steamer, fryer and pasta-cooker insert

• Commercial griddle insert

• Indirect roasting pod

• Stainless-steel accessory grate

• Stainless-steel wind guard

• Built-in grill cover

• Premium weather-resistant grill cover

• Compatible outdoor kitchen doors, drawers and storage

• Standard and custom color finishes

A professional site visit is recommended before ordering or fabricating the outdoor kitchen. Confirm the exact fuel configuration, current installation drawing and appliance rating plate before sizing utilities or cutting countertops, masonry or cabinetry.

The enclosure must be constructed from noncombustible materials unless an approved Alfresco insulated jacket is installed. Gas and electrical connections must be completed by properly licensed professionals in accordance with the manufacturer’s instructions and applicable local codes.
