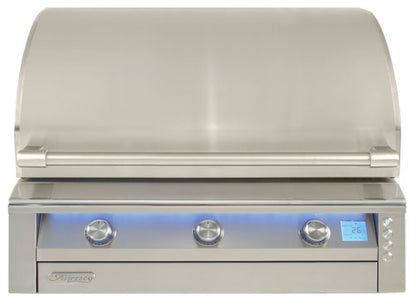

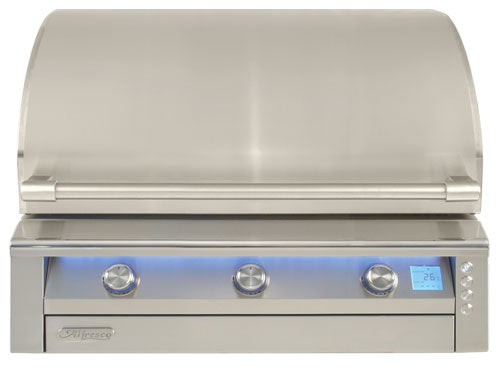

Alfresco AIPG-36 36" Intelligent Built-In Gas Grill

Product Summary

The Alfresco AIPG-36 combines powerful outdoor cooking performance with intelligent temperature monitoring and precision controls in a 36-inch built-in design.

Three stainless steel CoreFlame™ burners and Thermaglass™ radiant shields distribute heat evenly across 828 square inches of cooking space. Automatic ignition with auto-reignite helps maintain consistent burner operation.

The Intelli-Temp™ smart grilling system connects to the Alfresco smartphone app through Bluetooth®, providing real-time temperature information, timers and customizable cooking presets. A Sensa-Tek™ wireless temperature probe and four-zone digital display help monitor individual burner zones and internal food temperature.

The AIPG-36 also includes a two-position Mega-Drive™ rotisserie, Signature Taste X2™ smoking system and customizable LumaTouch™ control lighting. Visit Coastal Appliance Co. for Alfresco outdoor-kitchen products and professional appliance guidance throughout Hawaii.

Key Features

Intelli-Temp™ Smart Grilling System – Connects to the Alfresco smartphone app through Bluetooth® for real-time monitoring, timers and saved cooking presets.

Three CoreFlame™ Burners – Dynamically ported stainless steel burners provide responsive and evenly distributed heat.

Thermaglass™ Burner Shields – Distribute radiant heat while helping reduce flare-ups and protect burner ports from grease and debris.

828-Square-Inch Cooking Surface – Provides generous space for grilling, roasting, smoking and entertaining.

Four-Zone Digital Display – Shows temperatures from all three cooking zones and the wireless food probe.

Sensa-Tek™ Wireless Temperature Probe – Monitors internal food temperature and stores in an integrated charging station.

Mega-Drive™ Rotisserie – Two-position, chain-driven system accommodates foods of different sizes and supports loads up to 50 pounds.

Signature Taste X2™ Smoker – Dual-drawer smoking system directs smoke from wood chunks and herbs into the cooking zone.

Automatic Burner Ignition – Always-on ignition system automatically attempts to relight a main burner if its flame is interrupted.

GraviLift™ Hood Assist – Counterbalanced mechanism provides smooth movement and allows the hood to remain at multiple positions.

LumaTouch™ Control Lighting – Offers more than 20 lighting colors and eight brightness levels, with knob illumination that reflects burner intensity.

Triple Halogen Work Lights – Brightly illuminate the cooking surface for nighttime grilling.

Optional Multi-Position Sear Zone™ – Variable-heat infrared burner can be installed in the left, center or right cooking zone.

Standard Grill Cover Included – Helps protect the grill when it is not in use.

Custom Color Options – Available in ten standard colors and select RAL finishes; availability should be confirmed when ordering.

Specifications

Specification	Details
Brand	Alfresco
Model	AIPG-36
Series	Intelligent Professional Grill
Product Type	Intelligent outdoor gas grill
Installation Type	Built-in
Grill Width	36 inches
Construction	Commercial-grade 304 stainless steel
Main Burners	3
Main Burner Type	Stainless steel CoreFlame™ burners
Radiant System	Thermaglass™ burner shields
Total Input	90,000 BTUH
Total Cooking Surface	828 sq. in.
Rotisserie	Two-position Mega-Drive™ system
Rotisserie Burner	Thermaglass™ infrared
Rotisserie Capacity	Up to 50 lbs.
Smoking System	Signature Taste X2™ dual-drawer smoker
Temperature Probe	Sensa-Tek™ wireless probe
Temperature Display	Four-zone digital display
Smart System	Intelli-Temp™
Connectivity	Bluetooth®
Smartphone App	Alfresco grilling app for compatible Apple and Android devices
Control Lighting	LumaTouch™ multicolor lighting
Interior Lighting	Triple high-intensity halogen lights
Main-Burner Ignition	Automatic with auto-reignite
Rotisserie and Smoker Ignition	Push-button
Warming Rack	Three-position
Sear Zone™	Optional
Fuel Options	Natural gas or liquid propane
Natural Gas Pressure	4 inches W.C.
Liquid Propane Pressure	10 inches W.C.
Natural Gas Connection	1/2-inch NPT
Liquid Propane Connection	3/8-inch ODF
Electrical Requirements	115 VAC, 7 amps, 60 Hz
Power Cord	8-foot cord with NEMA 5-15 plug
Grill Cover	Included
Wi-Fi Connectivity	No; Bluetooth® connectivity
ADA Compliant	Not applicable
Installation Location	Outdoor use only
Safety Standards	ANSI Z21.58-2022 and CSA 1.6-2022
Warranty	Limited lifetime coverage on qualifying stainless steel parts and burners; additional terms apply

Dimensions

Measurement	Size
Overall Width	36"
Overall Height	15 1/4"
Overall Depth Including Handle	26 13/16"
Cutout Width	34 1/2"
Cutout Height	10 13/16"
Cutout Depth	23"
Minimum Back Setback	1 1/2"
Rotisserie Motor Clearance	3 9/16"

Always confirm final cabinet and countertop dimensions using the current Alfresco installation specifications before cutting the enclosure.

Optional Accessories

Variable-heat infrared Sear Zone™

Insulated jacket for combustible enclosures

Deluxe freestanding cart

Wind guard

Premium protective cover

Solid-fuel insert

Indirect roasting pod

Commercial griddle

Steamer, fryer and pasta-cooker system

Accessory cooking-grate and tray set

Installation Considerations

The AIPG-36 is designed exclusively for outdoor installation.

Confirm the correct natural gas or liquid propane configuration before ordering. Gas connections should be completed by a qualified professional and comply with applicable local codes.

A dedicated, properly grounded 115-volt GFCI-protected electrical connection is recommended for the intelligent controls, ignition, rotisserie and lighting systems.

The grill enclosure should be constructed from noncombustible materials. An Alfresco-approved insulated jacket is required when installing the grill into a combustible enclosure.

Reliable Bluetooth® performance requires a compatible smartphone and the Alfresco grilling app. Mobile-device compatibility and app requirements may change.

Provide adequate ventilation, structural support and service access to the gas regulator, shutoff valve and electrical connection.
