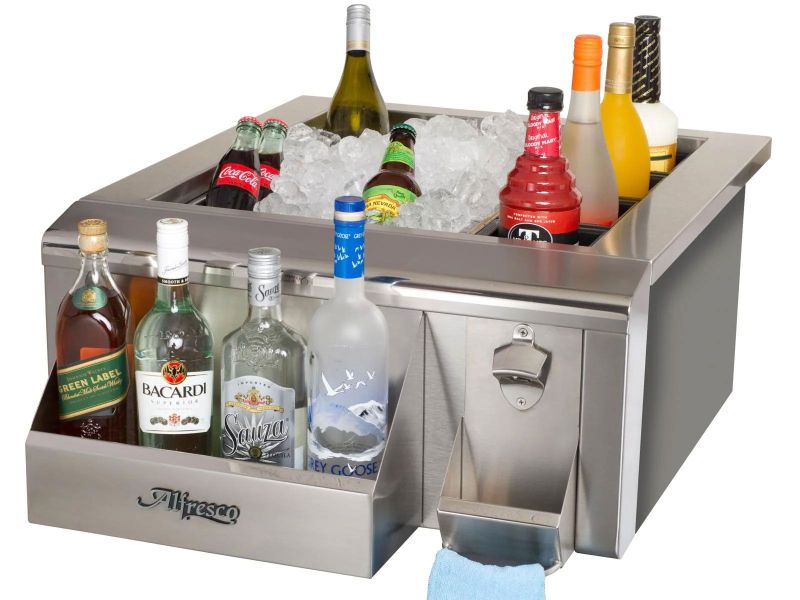

Alfresco AGBC-24 24" Versa Sink™ and Beverage Center

The Alfresco AGBC-24 combines a built-in outdoor sink, insulated ice chest, and beverage-preparation station in one versatile 24-inch design.

The stainless steel basin holds up to 60 pounds of ice and features one-inch foam insulation on all sides and the bottom. A sliding stainless steel cover helps protect the contents and creates a cleaner appearance when the basin is not in use.

Included beverage accessories feature four removable bottle wells, a three-bottle speed rail, a full-size ice pan, bottle opener, towel holder, and bottle-cap catcher. Remove the inserts to use the basin as an outdoor sink for food preparation and cleanup.

The AGBC-24 is faucet-ready, allowing the faucet to be selected separately to match the outdoor kitchen design. Contact Coastal Appliance Co. for availability, compatible faucet options, and outdoor-kitchen planning throughout Hawaii.

Key Features

Versa Sink™ Design – Converts between an outdoor sink, insulated ice chest, and beverage-preparation center.

60-Pound Ice Capacity – Holds enough ice and beverages for outdoor gatherings and entertaining.

One-Inch Foam Insulation – Insulation on the sides and bottom helps maintain cold temperatures.

Four Removable Bottle Wells – Organizes commonly used bottles within the insulated basin.

Three-Bottle Speed Rail – Hang-on front rail keeps beverage bottles accessible during preparation and service.

Full-Size Ice Pan – Included four-inch-deep pan separates serving ice from bottles and other contents.

Sliding Stainless Steel Cover – Covers the basin and provides a clean, finished appearance when the unit is not in use.

Bottle Opener and Cap Catcher – Integrated opener provides convenient beverage service while the catcher contains removed caps.

Towel Holder – Keeps a bar or hand towel within convenient reach.

Basket Drain with Stopper – Allows the basin to function as a sink or retain ice and water when closed.

Faucet-Ready Design – Accepts a separately purchased faucet selected for the outdoor-kitchen installation.

Specifications

Specification	Details
Brand	Alfresco
Model	AGBC-24
Series	Versa Sink™
Product Type	Outdoor sink and beverage center
Installation Type	Built-in
Nominal Width	24 inches
Construction	Stainless steel
Finish	Stainless steel
Sink Basin Size	19" W x 21" D x 8 1/4" H
Ice Capacity	Up to 60 lb.
Insulation	1-inch foam on sides and bottom
Ice Pan	Full-size stainless steel, 4 inches deep
Bottle Wells	4 removable wells with frame
Speed Rail	Hang-on front rail with 3-bottle capacity
Bottle Opener	Included
Cap Catcher	Included
Towel Holder	Included
Sliding Cover	Included
Faucet	Not included
Drain	3 1/2-inch basket drain with strainer plug
Drain-Pipe Connection	1 1/2 inches
Disposer Compatibility	Drain accommodates a compatible disposer
Electrical Requirements	None
Water Supply	Required when installed with a faucet
Outdoor Approved	Yes
ADA Compliant	Not specified

Dimensions

Measurement	Size
Overall Width	24"
Overall Depth	27 1/4"
Overall Depth with Speed Rail	32 5/16"
Overall Height	11 1/16"
Sink Basin Width	19"
Sink Basin Depth	21"
Sink Basin Height	8 1/4"
Cutout Width	23 1/4"
Cutout Depth	22 1/2"
Cutout Height	9"
Minimum Countertop Setback	3 5/8"
Bullnose Notch	7/8"

Installation Requirements

The AGBC-24 requires a built-in countertop opening with adequate cabinet clearance beneath the basin. A properly routed drain must be provided inside the cabinet.

A hot-and-cold-water supply is required when the unit is installed with a faucet. The faucet is purchased separately, allowing the style and functionality to be selected for the outdoor kitchen.

Final countertop dimensions, bullnose details, plumbing connections, drainage, and clearances should be verified using Alfresco’s installation drawing. Coastal Appliance Co. recommends confirming the cabinet and plumbing plan before countertop fabrication.
