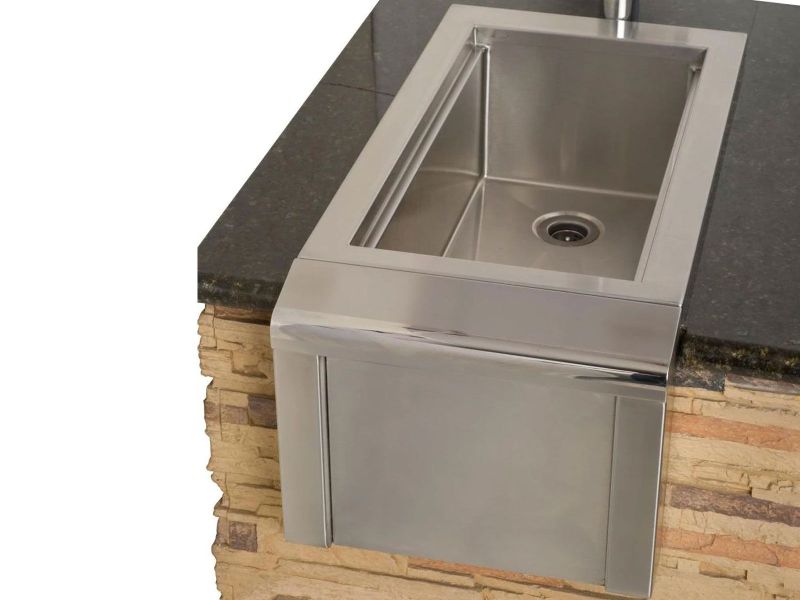

Alfresco AGBC-14 14" Versa Sink™ and Beverage Center

The Alfresco AGBC-14 combines a compact outdoor sink, insulated ice chest, and beverage-preparation station in one versatile 14-inch design.

The stainless steel basin holds up to 32 pounds of ice and features one-inch foam insulation on all sides and the bottom. A removable sliding stainless steel cover helps protect the contents and creates a clean appearance when the basin is not in use.

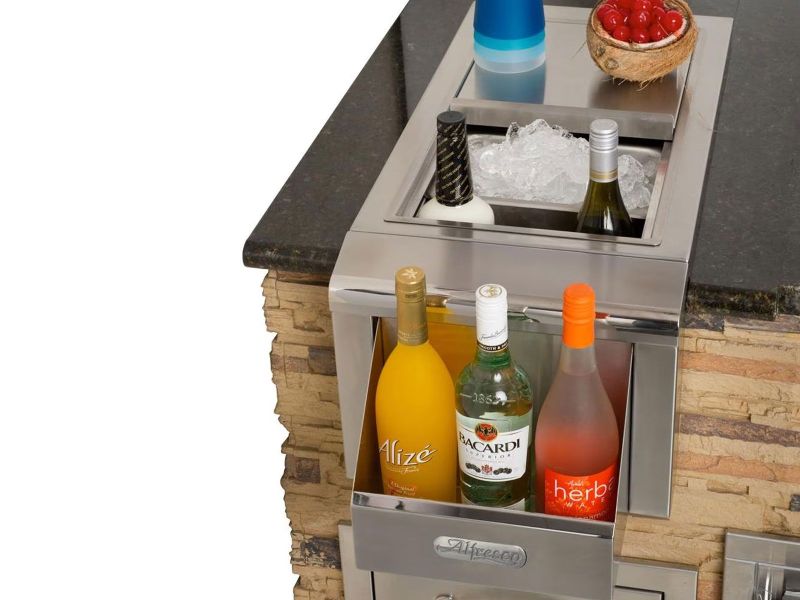

An included three-bottle speed rail keeps frequently used bottles accessible, while a separate stainless steel ice pan allows the basin to support both sink and beverage-service functions.

The AGBC-14 is faucet-ready, allowing the faucet to be selected separately for the outdoor kitchen. Contact Coastal Appliance Co. for availability, compatible faucet options, and outdoor-kitchen planning throughout Hawaii.

Key Features

Versa Sink™ Design – Converts between an outdoor sink, insulated ice chest, and beverage-preparation center.

Compact 14-Inch Width – Adds sink and beverage functionality while preserving valuable outdoor counter space.

32-Pound Ice Capacity – Holds ice and chilled beverages for outdoor gatherings and entertaining.

One-Inch Foam Insulation – Insulation on the sides and bottom helps maintain cold temperatures.

Three-Bottle Speed Rail – Hang-on front rail keeps beverage bottles accessible during preparation and service.

Separate Ice Pan – Included stainless steel pan supports combined sink and ice-service use.

Sliding Stainless Steel Cover – Protects the basin and creates a clean, finished appearance when not in use.

Basket Drain with Stopper – Allows the basin to function as a sink or retain ice and water when closed.

Faucet-Ready Design – Accepts a separately purchased faucet selected for the outdoor-kitchen installation.

Specifications

Specification	Details
Brand	Alfresco
Model	AGBC-14
Series	Versa Sink™
Product Type	Outdoor sink and beverage center
Installation Type	Built-in
Nominal Width	14 inches
Construction	Stainless steel
Finish	Stainless steel
Sink Basin Size	11" W x 21" D x 8 1/4" H
Ice Capacity	Up to 32 lb.
Insulation	1-inch foam on sides and bottom
Ice Pan	Quarter-size stainless steel, 4 inches deep
Speed Rail	Hang-on front rail with 3-bottle capacity
Sliding Cover	Included
Faucet	Not included
Drain	Basket drain with strainer and stopper
Drain Opening	3 1/2 inches
Drain-Pipe Connection	1 1/2 inches
Disposer Compatibility	Drain accommodates a compatible disposer
Electrical Requirements	None
Water Supply	Required when installed with a faucet
Outdoor Approved	Yes
ADA Compliant	Not specified

Dimensions

Measurement	Size
Overall Width	14"
Overall Depth	27 1/8"
Overall Depth with Speed Rail	Approximately 32 3/16"
Overall Height	11 1/16"
Sink Basin Width	11"
Sink Basin Depth	21"
Sink Basin Height	8 1/4"
Cutout Width	13 1/4"
Cutout Depth	23"
Cutout Height	9 1/4"
Minimum Countertop Setback	3 5/8"
Bullnose Notch	1/2"

Installation Requirements

The AGBC-14 requires a built-in countertop opening with adequate cabinet clearance beneath the basin. A properly routed drain must be provided inside the cabinet.

A hot-and-cold-water supply is required when the unit is installed with a faucet. The faucet is purchased separately, allowing its style and functionality to be selected for the outdoor kitchen.

Final countertop dimensions, bullnose details, plumbing connections, drainage, and clearances should be verified using Alfresco’s installation drawing. Coastal Appliance Co. recommends confirming the cabinet and plumbing plan before countertop fabrication.
