ASKO T3HW 24" 4.2 Cu. Ft. ENERGY STAR® Ventless Heat Pump Dryer
ASKO T3HW 24" 4.2 Cu. Ft. ENERGY STAR® Ventless Heat Pump Dryer
The ASKO T3HW is a 24-inch ventless heat pump dryer engineered for efficient drying and exceptional fabric care. Its compact, freestanding design offers a 4.2 cu. ft. stainless steel drum with capacity for loads weighing up to 19.8 pounds.
Butterfly Drying™, Bundle Guard™, Soft Drum™ technology, sensor-controlled drying, and a durable brushless motor help dry garments evenly while reducing tangling, wear, and unnecessary energy consumption. The Multi Filter System captures lint through multiple filtration stages for dependable performance.
Choose from 12 drying programs, including Quick Pro, Bedding, Delicate, Silk & Wool, AirRefresh, and Down/Bulky. Built-in Wi-Fi provides access to ConnectLife features, while Dryer Link can recommend a suitable drying program based on the connected ASKO washer cycle.
The ENERGY STAR® certified T3HW is ideal for Hawaii homes, condominiums, and apartments where exterior dryer venting may be difficult. Coastal Appliance Co. can help coordinate a matching ASKO washer, stacking accessories, pedestal, and installation requirements.
Key Features
Ventless Heat Pump Drying – Dries clothing efficiently without requiring an exterior exhaust duct.
4.2 Cu. Ft. Stainless Steel Drum – Accommodates laundry loads weighing up to 19.8 pounds.
ENERGY STAR® Certified – Uses heat pump technology to reduce energy consumption during normal drying.
Butterfly Drying™ – Moves garments in a figure-eight pattern to promote even drying and reduce bundling.
Bundle Guard™ – Detects bundled laundry and adjusts drum movement to help separate tangled items.
Soft Drum™ Technology – Uses a fabric-conscious drum design to encourage gentle airflow around garments.
Multi Filter System – Combines an easy-access mesh filter with additional lint filtration for reliable operation.
Brushless Motor – Delivers quiet, durable, and energy-efficient performance.
Sensor-Controlled Drying – Monitors moisture levels and stops the program when the selected dryness level is reached.
12 Drying Programs – Includes cycles for cotton, synthetics, bedding, delicate fabrics, wool, bulky items, and more.
Quick Pro Program – Dries up to 8.8 pounds of synthetic laundry in approximately 40 minutes under specified conditions.
Wi-Fi and ConnectLife – Provides connected appliance features through the ConnectLife app.
Dryer Link – Recommends a drying program based on the cycle used by a compatible connected ASKO washer.
Load Light™ – Illuminates the drum to make loading and unloading easier.

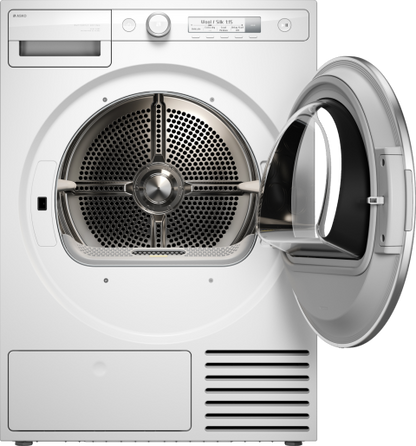

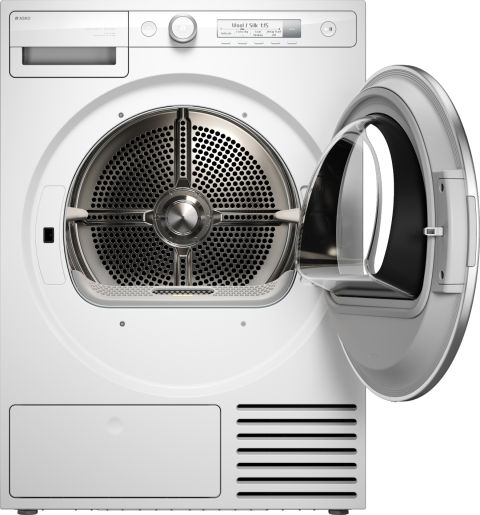

Reversible 180-Degree Door – Supports flexible placement in compact laundry spaces.
Drainable Condensate System – Collected water can be emptied from the tank or routed to a suitable drain.

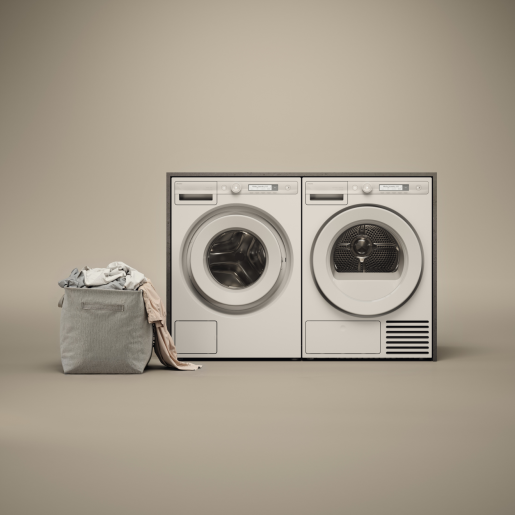

Stackable Design – Can be installed above a compatible ASKO front-load washer.
ADA-Compliant Configuration – Meets applicable ADA height requirements when installed on an ASKO pedestal drawer.
R290 Refrigerant – Uses a low-global-warming-potential refrigerant in the heat pump system.
Specifications
| Specification | Details |
|---|---|
| Brand | ASKO |
| Model | T3HW |
| Manufacturer Model | T3HW.U |
| Series | 3-Series |
| Product Type | Electric heat pump dryer |
| Installation Type | Freestanding or stacked |
| Venting Type | Ventless |
| Finish | White |
| Drum Capacity | 4.2 cu. ft. |
| Maximum Load Capacity | 19.8 lb. |
| Drum Material | Stainless steel |
| Number of Programs | 12 |
| Drying Control | Moisture sensor or timed drying |
| Programs | Auto Normal Dry, Time, Silk & Wool, Bedding, Quick Pro Cotton, Down/Bulky, Mixed, Synthetics, Delicate, Cotton Iron, Cotton Storage, AirRefresh |
| Drying Modes | Standard and Delicate |
| Options | Dryness level, delay start, anti-crease, low temperature, half load, load level, end signal, quick dry |
| Controls | LCD display with rotary selector |
| Remaining-Time Display | Yes |
| Interior Drum Light | Yes |
| Wi-Fi Connectivity | Yes |
| Mobile Platform | ConnectLife |
| Reversible Door | Yes |
| Maximum Door Opening | 180 degrees |
| Water Tank Capacity | 1.7 gal. |
| Drain Connection | Available |
| Lint Filtration | Multi Filter System |
| Motor Type | Brushless DC motor |
| Stackable | Yes, with a compatible ASKO washer |
| ENERGY STAR® Certified | Yes |
| Combined Energy Factor | 6.0 |
| Estimated Annual Energy Use | 142 kWh |
| Noise Level | 61 dB |
| Refrigerant | R290 |
| Connected Load | 700 W |
| Voltage | 208–240 V |
| Frequency | 60 Hz |
| Electrical Phase | Single phase |
| Required Circuit | 30 A |
| ADA Compliant | When installed on an ASKO pedestal drawer |
| Child Lock | Yes |
| Overheat Protection | Yes |
| Net Weight | 116.8 lb. |
| Product Code | 746431 |
| EAN | 3838783003058 |
Dimensions
| Measurement | Size |
|---|---|
| Width | 23 7/16" |
| Height | 33 7/16" |
| Depth | 24 13/16" |
| Depth With Door Open | 42 1/2" |
| Door Opening Diameter | 13 3/8" |
| Adjustable Feet | Up to 9/16" |
| Power Cord Length | 82 11/16" |
| Shipping Width | 25 1/16" |
| Shipping Height | 36 1/4" |
| Shipping Depth | 29 1/4" |
| Shipping Weight | 126.8 lb. |
Optional Accessories and Installation
ASKO Pedestal Drawer – Raises the dryer to a more convenient loading height and provides an ADA-compliant installation configuration.
Sensi Basket™ Drying Basket – Holds shoes, delicate garments, and other items stationary while warm air circulates around them.
Stacking Components – Required when installing the dryer above a compatible ASKO front-load washer; confirm compatibility with the selected washer.
Condensate Drain Connection – Allows collected water to discharge directly into a suitable drain instead of being emptied manually from the tank.
Electrical Connection – Requires a dedicated 208–240-volt, 30-amp electrical connection.
Exterior Venting – Not required for this ventless heat pump dryer.
