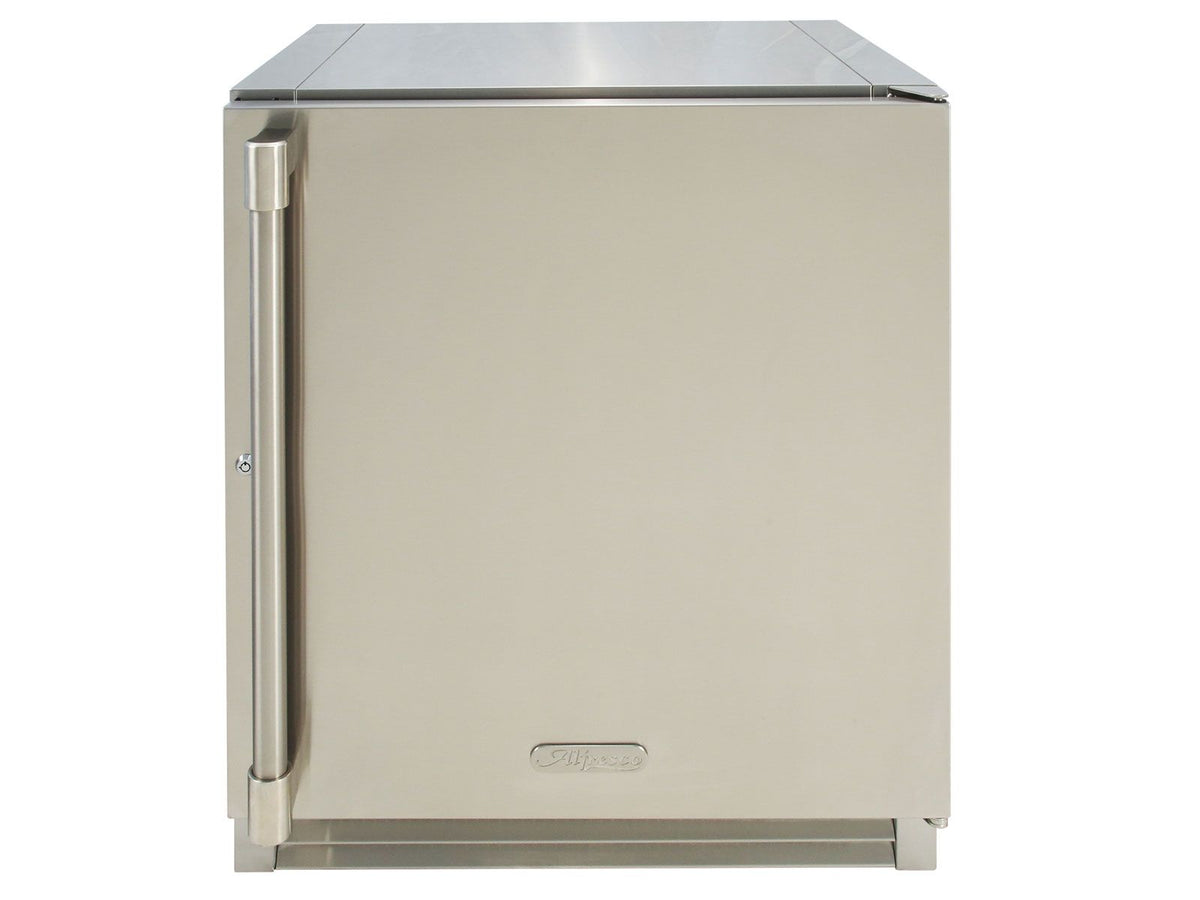

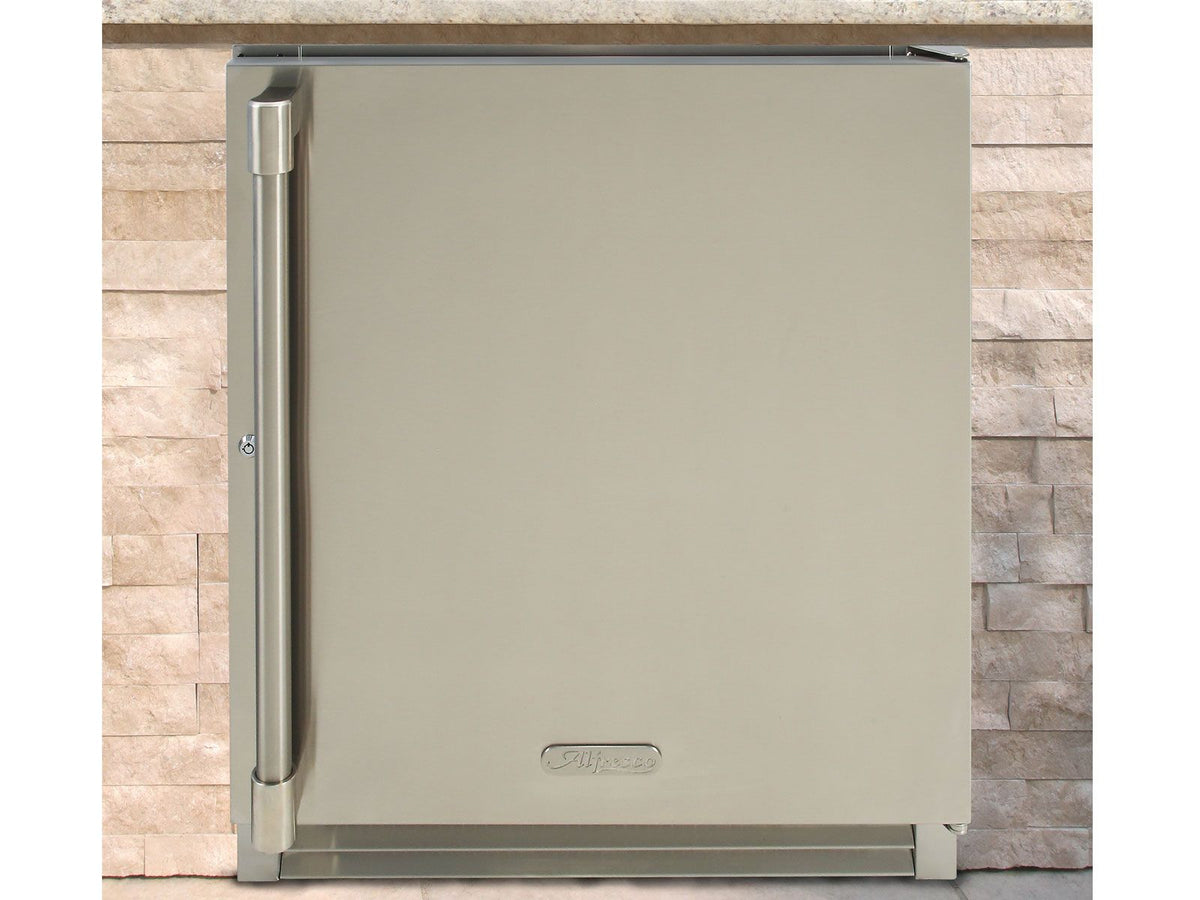

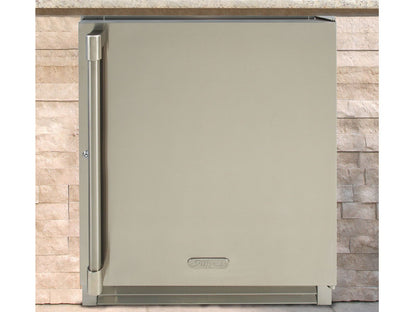

Alfresco AR-28 28" PolarCore™ Single-Door Outdoor Refrigerator
Alfresco AR-28 28" PolarCore™ Single-Door Outdoor Refrigerator
The Alfresco AR-28 is a 28-inch PolarCore™ outdoor refrigerator with 6.77 cu. ft. of flexible food and beverage storage.
Its variable-speed compressor, commercial fan-driven evaporator and Flash Recovery System deliver powerful cooling with an adjustable temperature range from 33°F to 50°F. Smooth-gliding, self-closing shelves make stored items easy to organize and access.
Constructed from 304 stainless steel inside and out, the AR-28 features front-bottom ventilation for built-in undercounter or freestanding installation. Automatic defrost, digital controls and door-activated multicolor LED lighting provide convenient everyday operation.
The right-hinged door is field-reversible, and stainless steel, standard-color, custom-color and panel-ready configurations are available. Coastal Appliance Co. provides professional product guidance and outdoor-kitchen planning throughout Hawaii.
Key Features
6.77 Cu. Ft. Capacity – Provides spacious refrigerated storage for beverages, ingredients and outdoor-entertaining essentials.
PolarCore™ Cooling – Delivers professional-grade temperature management for outdoor installations.

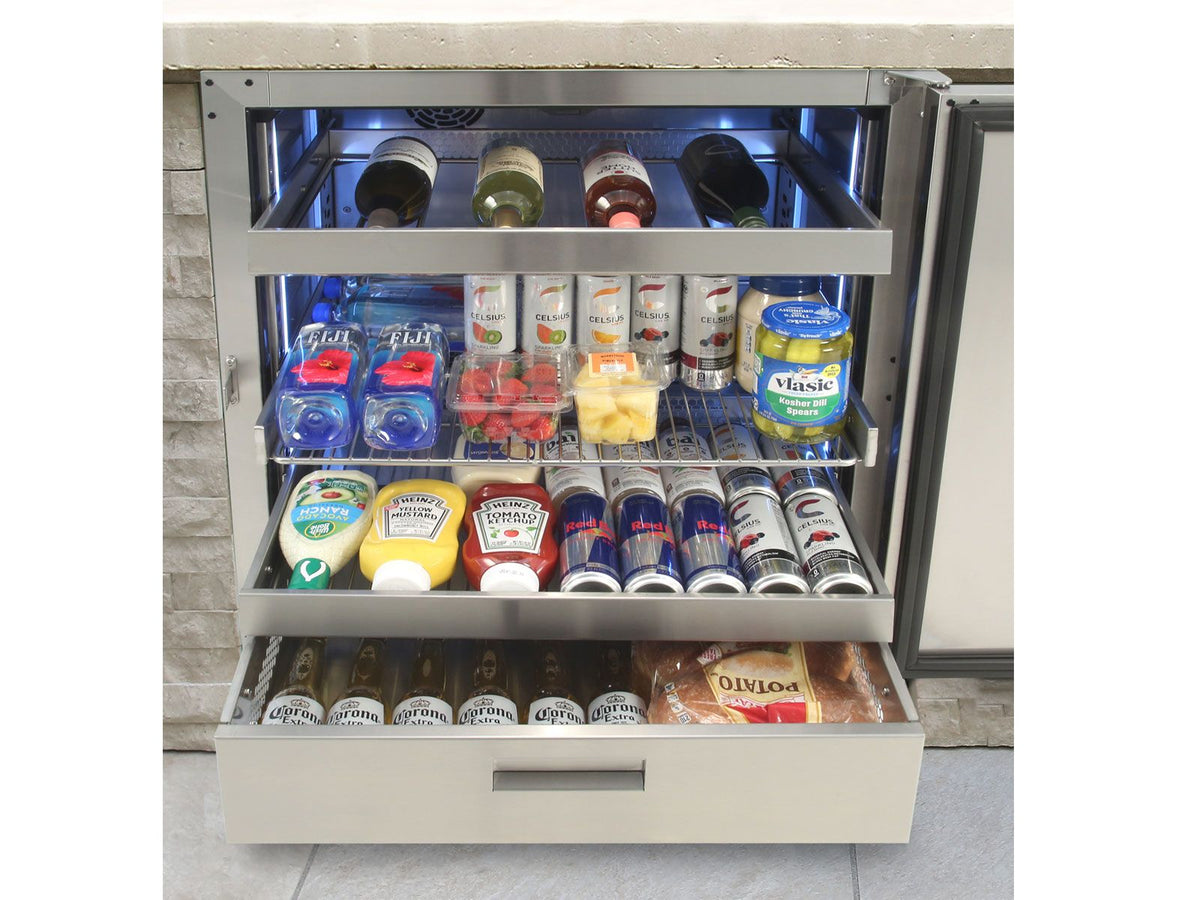

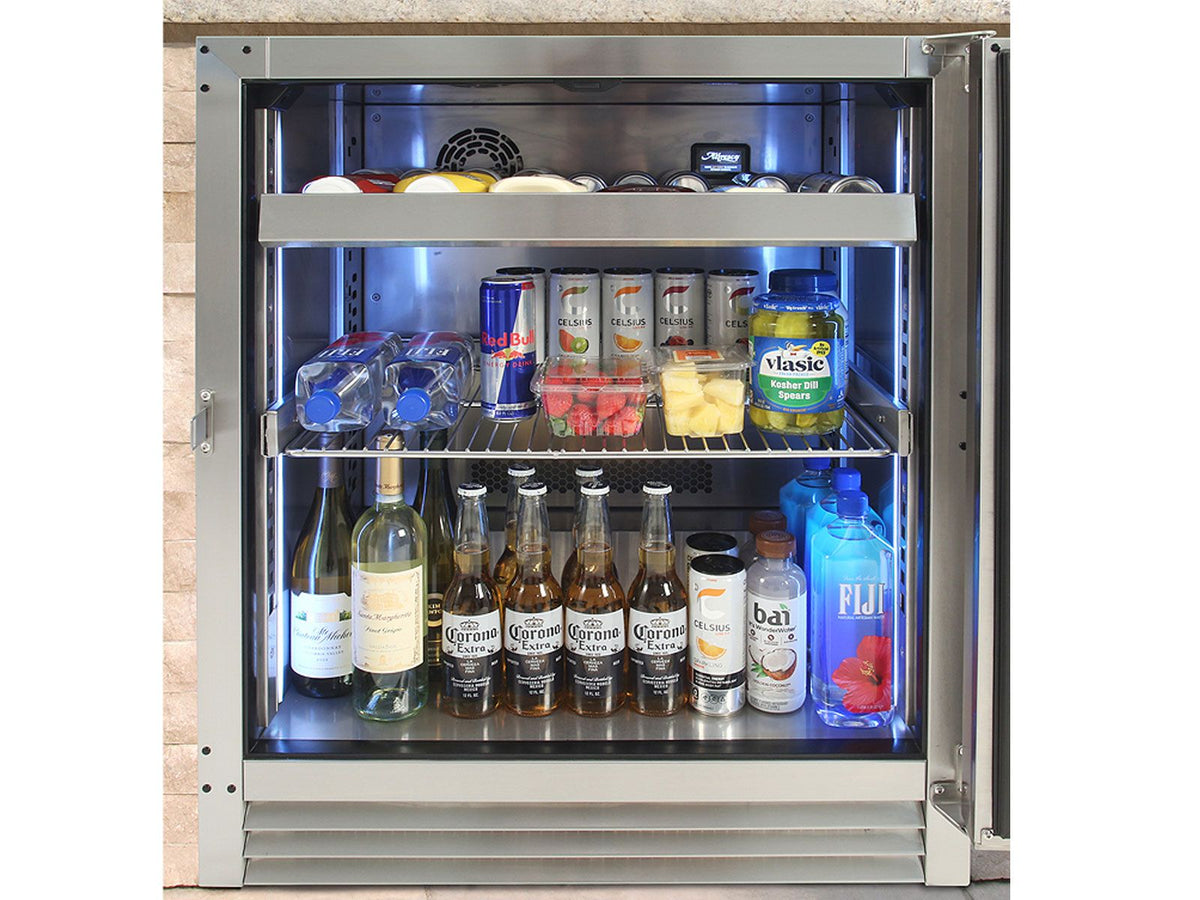

Adjustable Roll-Out Shelves – Smooth-gliding, self-closing shelves offer flexible organization and convenient access.
Flash Recovery System – Quickly restores the selected temperature after the refrigerator door has been opened.
Variable-Speed Compressor – Provides 780–1,800 BTUH of cooling performance based on operating conditions.
Commercial Forced-Air Cooling – A fan-driven fin evaporator circulates cold air throughout the refrigerator.
Digital Temperature Controls – Lighted display provides convenient temperature adjustment from 33°F to 50°F.
Multicolor LED Lighting – Door-activated lighting offers adjustable colors and intensity.
304 Stainless-Steel Construction – Stainless-steel interior and exterior provide durability for outdoor use.
Front-Bottom Ventilation – Supports built-in undercounter and freestanding installation.
Automatic Defrost – Controls frost accumulation and reduces routine maintenance.
Field-Reversible Door – Ships with a right-hand hinge and can be reversed during installation.
Door Lock – Included lock helps secure refrigerated contents.
Custom Finish Options – Available in stainless steel, 10 standard colors or a selection of custom RAL colors.
Specifications
| Specification | Details |
|---|---|
| Brand | Alfresco |
| Model | AR-28 |
| Series | PolarCore™ |
| Product Type | Outdoor single-door refrigerator |
| Installation Type | Built-in undercounter or freestanding |
| Nominal Width | 28 inches |
| Total Capacity | 6.77 cu. ft. |
| Door Configuration | Single door |
| Door Hinge | Right; field-reversible |
| Temperature Range | 33°F to 50°F |
| Control Type | Digital control with lighted display |
| Cooling System | Commercial fan-driven fin evaporator |
| Compressor | Variable speed, 780–1,800 BTUH |
| Flash Recovery System | Yes |
| Defrost Type | Automatic |
| Shelving | Adjustable, self-closing roll-out shelves |
| Interior Lighting | Door-activated multicolor and adjustable-intensity LED |
| Construction | 304 stainless steel inside and out |
| Ventilation | Front-bottom ventilation |
| Door Lock | Included |
| Refrigerant | R-290 |
| Voltage | 115 VAC |
| Running Current | 2.1 amps |
| Minimum Circuit Ampacity | 2.5 amps |
| Maximum Overcurrent Protection | 15 amps |
| Power Cord | 8-foot cord with NEMA 5-15 plug |
| Grounded Receptacle | Required |
| GFCI Protection | Recommended |
| Outdoor Approved | Yes |
| Certification | ETL certified |
| ADA Compliant | No |
| Panel-Ready Option | Available as a separate configuration |
| Finish Options | Stainless steel, standard colors and custom RAL colors |
Dimensions
| Measurement | Size |
|---|---|
| Overall Face Width | 28 1/4 inches |
| Overall Face Height | 34 1/2 inches |
| Overall Depth Including Handle | 27 inches |
| Depth to Front of Door | 24 inches |
| Cabinet Body Depth | 21 3/4 inches |
| Minimum Cutout Width | 27 7/8 inches |
| Minimum Cutout Height | 34 1/4 inches |
| Minimum Cutout Depth | 21 3/4 inches |
| Maximum Door Swing | 172 degrees |
| Minimum Body Clearance Above Floor | 1/4 inch |
Installation and Accessories
Front-bottom ventilation allows the refrigerator to be installed beneath an outdoor counter without requiring rear ventilation. Provide sufficient space for the door to open and the roll-out shelves to extend completely.
The refrigerator requires a grounded 115-volt receptacle protected by a 15-amp circuit. GFCI protection is recommended for outdoor installations. Do not use an extension cord, and keep the supplied plug accessible after installation.
Optional accessories include a wine grate, open shelf, enclosed shelf and accessory drawer. Panel-ready and custom-color configurations should be specified when ordering and coordinated with the surrounding cabinetry before fabrication.
