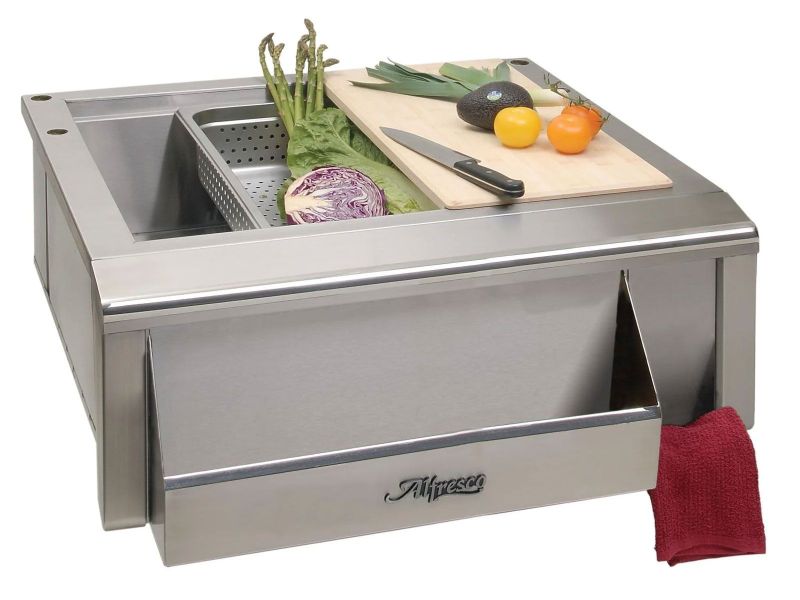

Alfresco AGBC-30+SINK 30" Versa Sink™ Preparation Package

The Alfresco AGBC-30+SINK combines a spacious insulated outdoor sink with preparation accessories designed for cooking, cleaning, and entertaining.

The 27-inch-wide stainless steel basin holds up to 75 pounds of ice and features one-inch foam insulation on all sides and the bottom. Its included stopper allows the sink to convert into a large beverage chiller when needed.

The preparation package adds a removable cutting board, four-inch-deep perforated colander, large speed rail, and towel holder. The modular accessories attach without tools, allowing the sink to be quickly reconfigured for washing, draining, cutting, or beverage service.

The AGBC-30+SINK is faucet-ready, allowing a faucet to be selected separately for the outdoor kitchen. Contact Coastal Appliance Co. for availability, compatible faucet options, and outdoor-kitchen planning throughout Hawaii.

Key Features

Versa Sink™ Design – Functions as an outdoor sink, food-preparation station, and insulated beverage chiller.

Preparation Accessory Package – Includes a cutting board, perforated colander, large speed rail, and towel holder.

Large Stainless Steel Basin – A 27-inch-wide basin provides ample room for washing ingredients, cookware, and serving pieces.

75-Pound Ice Capacity – Converts into a spacious insulated ice chest for outdoor parties and entertaining.

One-Inch Foam Insulation – Insulation on the sides and bottom helps maintain cold temperatures.

Removable Cutting Board – Creates an integrated preparation surface directly over the sink.

Perforated Colander – Four-inch-deep stainless steel colander supports rinsing, draining, and ingredient preparation.

Large Speed Rail – Keeps bottles and frequently used ingredients accessible during preparation and service.

Towel Holder – Provides a convenient location for a hand or bar towel.

Tool-Free Reconfiguration – Modular accessories attach and remove quickly as preparation needs change.

Basket Drain with Stopper – Allows the basin to function as a sink or retain ice and water when closed.

Faucet-Ready Design – Accepts a separately purchased faucet selected for the outdoor-kitchen installation.

Specifications

Specification	Details
Brand	Alfresco
Model	AGBC-30+SINK
Series	Versa Sink™
Product Type	Outdoor sink and preparation center
Installation Type	Built-in
Nominal Width	30 inches
Construction	Stainless steel
Finish	Stainless steel
Sink Basin Size	27" W x 21" D x 8 1/4" H
Ice Capacity	Up to 75 lb.
Insulation	1-inch foam on sides and bottom
Cutting Board	Included
Colander	Included, stainless steel and 4 inches deep
Speed Rail	Included, large size
Towel Holder	Included
Faucet	Not included
Drain	3 1/2-inch basket drain with strainer and stopper
Drain-Pipe Connection	1 1/2 inches
Disposer Compatibility	Drain accommodates a compatible disposer
Electrical Requirements	None for standard sink package
Water Supply	Required when installed with a faucet
Outdoor Approved	Yes
ADA Compliant	Not specified

Dimensions

Measurement	Size
Overall Width	30"
Overall Depth	27 3/16"
Overall Height	11 1/4"
Sink Basin Width	27"
Sink Basin Depth	21"
Sink Basin Height	8 1/4"
Cutting Board Width	11 1/4"
Cutting Board Depth	20 3/16"
Cutout Width	28 1/2"
Cutout Depth	23 1/4"
Cutout Height	9"
Minimum Countertop Setback	3 5/8"
Bullnose Notch	7/8"

Installation and Accessories

The AGBC-30+SINK requires a built-in countertop opening with adequate cabinet clearance beneath the basin. A properly routed drain must be provided inside the cabinet.

A hot-and-cold-water supply is required when the unit is installed with a faucet. The faucet is purchased separately, allowing its style and functionality to be selected for the outdoor kitchen.

Optional accessories may include a pantry faucet, sink cover, condiment tray, bottle wells, ice pan, blender shelf, and overhead serving or storage shelves. Lighted shelf configurations require a suitable 115-volt electrical receptacle.

Final countertop dimensions, bullnose details, plumbing connections, drainage, and accessory clearances should be verified before countertop fabrication.
